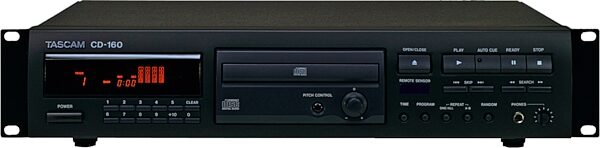

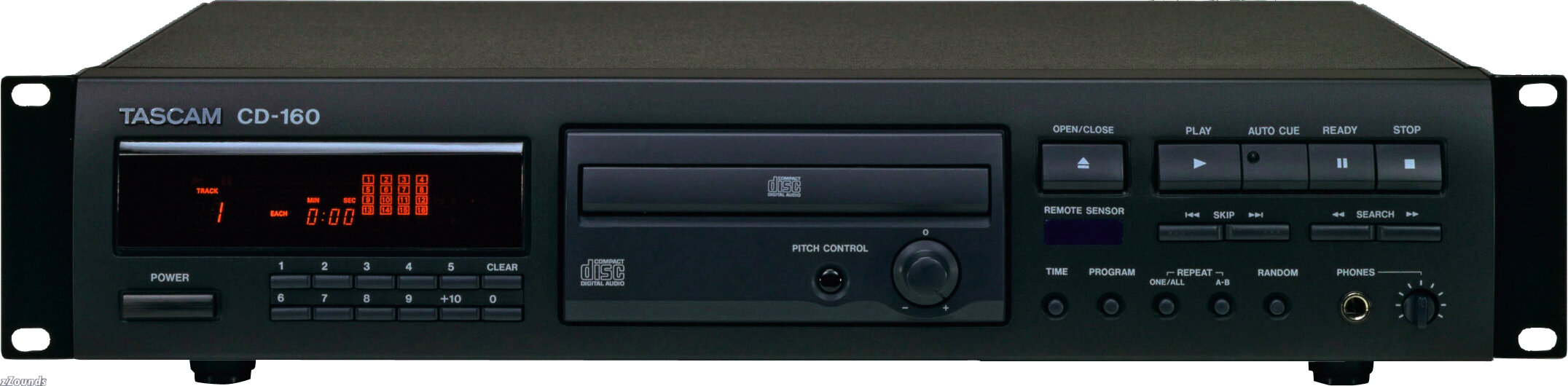

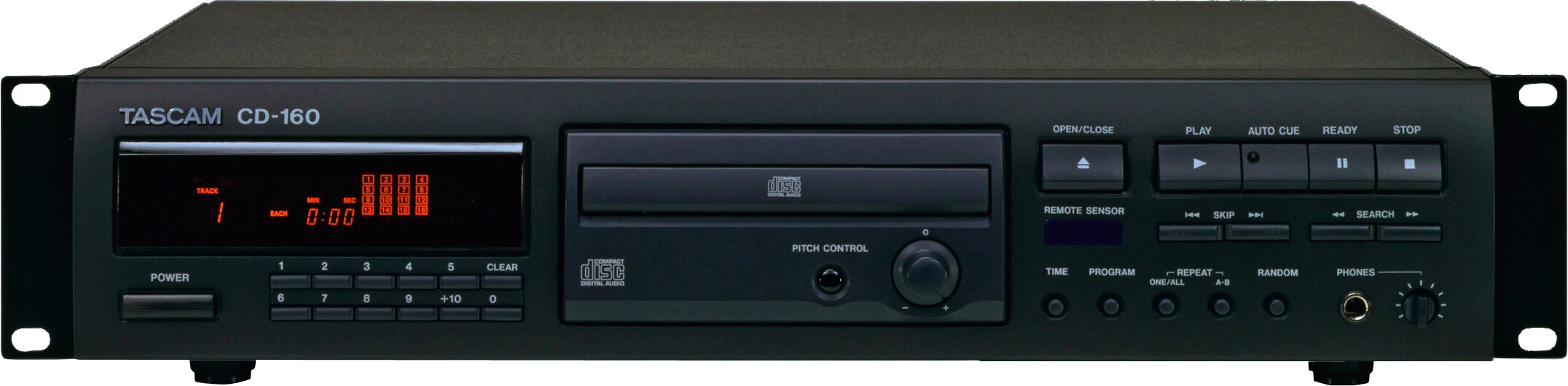

The Tascam CD-160 CD player is a cost-effective, professional CD player for commercial installations. The emphasis is on a straightforward specification with solid engineering rather than gadgets. For DJs, clubs, and fitness studios, the CD-160 provides essential Pitch Control. Auto Cue and programmable playback features are useful for PA and radio installations. Ready to rack mount in 2 rack spaces, the TASCAM CD-160 is easy to integrate into any environment.
Features
Rack mountable CD player
+/-6% pitch adjustment
Auto Cue
Wireless remote control included
RCA unbalanced outputs
Technical Info
Disc: 8-cm/12-cm CD
Audio Channel: 2 channels
Quantization: 16-bit linear
Sampling Frequency: 44.1 kHz
Analog Output: RCA
Nominal output level: 10 dBV (load impedance 10 kohms, unbalanced)
Maximum output level: +6 dBV (2 Vrms)
Output impedance: 2.5 kohms
Headphone Output (standard stereo phone jack): 11 mW at max. (load impedance 32ohms)
Frequency Response: 20 Hz - 20 kHz +/-1.5dB
Signal-to-Noise Ratio (S/N): >85 dB (1 kHz)
Total Harmonic Distortion: < 0.02 % (1 kHz)
Channel Separation: >80 dB (1 kHz)
Pitch Control: +/-6 %
Auto Cue Level: ?60 dB
Power Requirements: 120 VAC, 60 Hz
Power Consumption: 9 Watts (AC)
Dimensions (W x H x D): 482 x 104 x 304mm (19 x 4-1/8 x 11-15/16 in.)
Net Weight: 4.4 kg (9.7 lbs.)
Standard Accessories: Wireless Remote Control Unit (RC-150C), Battery (SUM-3, "AA", "R6" type) x 2, Rack Mounting Screw Kit, RCA Pin-plug Cord
Note: Improvements may result in specification or feature changes without notice.
