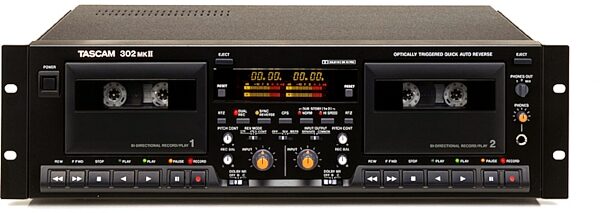

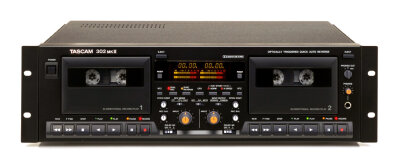

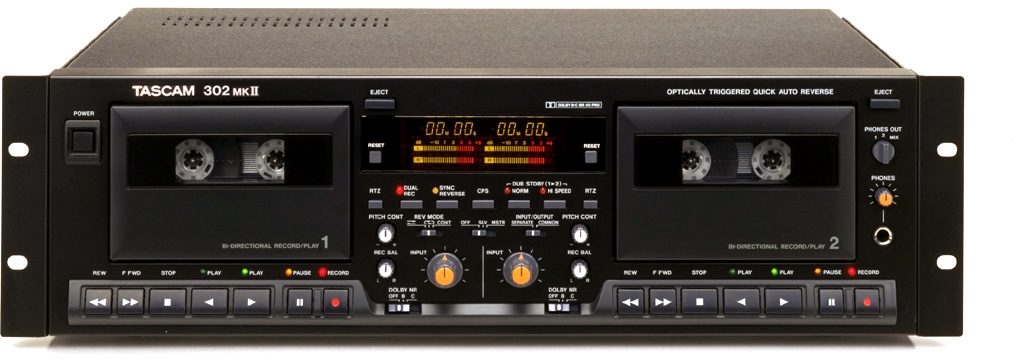

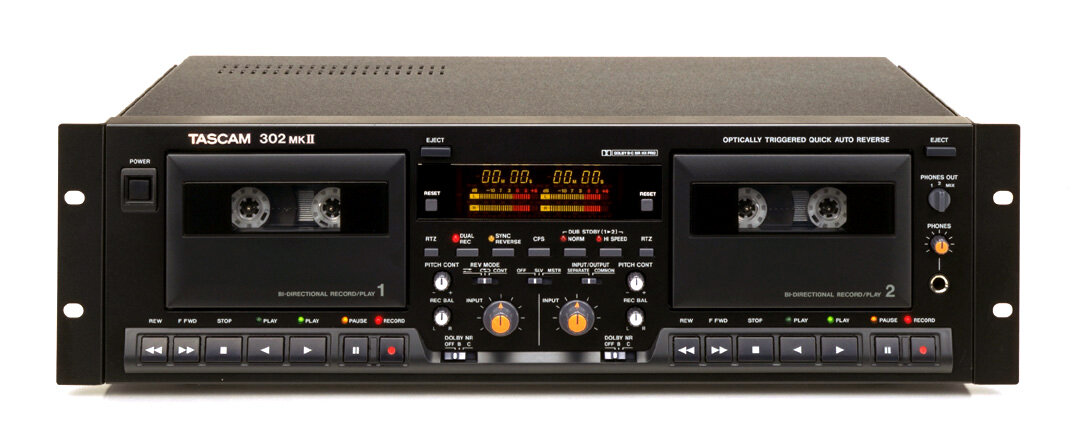

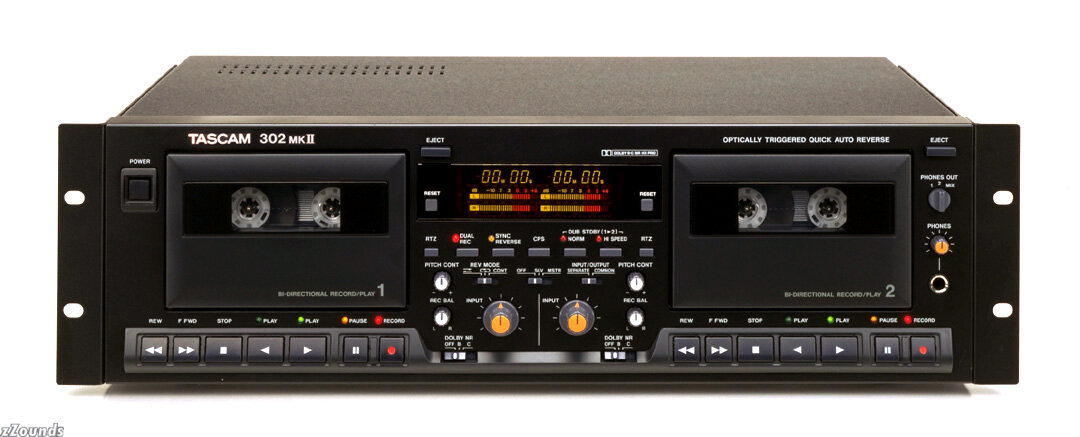

Tascam 302MKII Pro Dual Cassette Deck

Product Description

The 302mkII Dual Well Cassette Deck is an advanced dual well cassette deck, designed to solve the needs of demanding users. The 302 offers independent audio input and output for each well, allowing total control over each deck. The 302 can be set up so that one deck plays a tape while the other records an external source. This is perfect for recording a meeting and playing audio sources back, or playing music from tape and recording a performance on top of it. If the situation calls for a common I/O structure, you can switch it easily on the front panel. This makes it easy for creating dual masters, or saving inputs on a mixer.

When long format recording or playback is desired, the 302mkII's optical leader sensing detects the leader of a tape for immediate cassette direction reverse. The machine won't lose time waiting to pass over the leader tape twice. For extremely long format recording and playback is desired, the cascade functions allow automatic sequential triggering of each deck for unmanned operation. The 302 also offers Return To Zero function for easier cueing, ±10% pitch control to make changes in speed, and headphone output with level control.

Features:

Optical Leader Sensing for Quick Auto Reverse

±10% Pitch Control Independent for Each Deck

Independent Unbalanced RCA Analog I/O for Each Deck

RTZ (Return To Zero) Function on Each Deck

Headphone Output w/ Level Control

Optional RC-302 Wired Remote

Optional WR-7000 Cascade Cables

3-U Rack Mountable Dual Bi-Directional Cassette Deck

Both Cassette Wells Record Capable for Simultaneous Masters

Normal (1x) and High (2x) Speed Dubbing Capability

Dolby B and C with HX Pro Headroom Extension

Electronic Tape Counter

The 302 is designed for regular use and versatility, combining a feature rich cassette recorder/player with extended duplication capabilities.

Home or Project Studio - In the home and project studios, each device ends up serving more than one application. The 302 cassette deck offers the ability to create two masters at once, generating more reference mixes faster for listening in the car or in the living room. A return to zero function helps users who are trying to put more mixes on a single tape by locating to the beginning of the tune on cue.

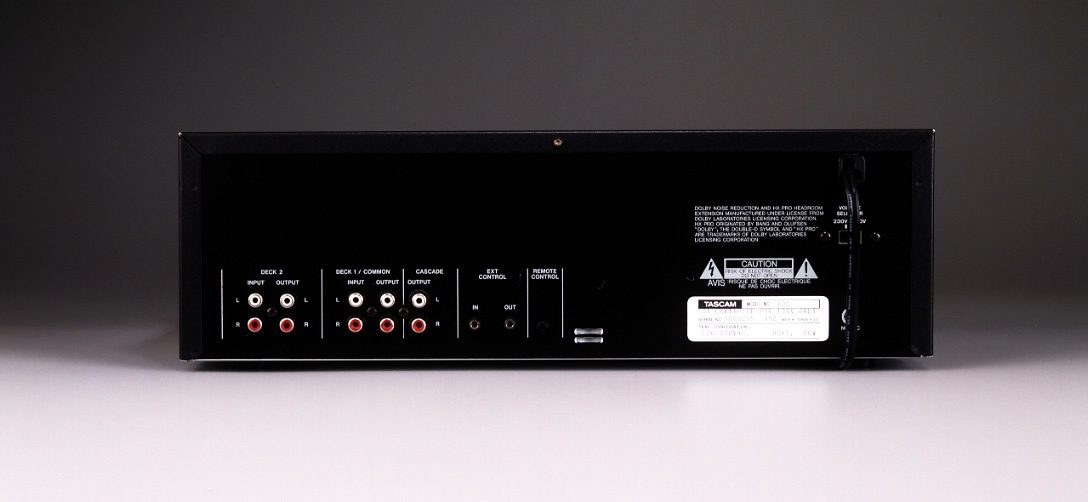

As with most dual well cassette decks, the 302 can provide real time copies for high quality duplication or 2x duplication for rehearsal tapes or quick dubs. Unlike most of its competitors, multiple 302s can be combined to create a duplication rack. Ports on the back are provided for transport control and audio cascading.

Music Educators - Dance Instructors - Health Clubs - Band, Choir, Theater and Dance programs often need to be able to make copies of rehearsal tapes for their performers to practice with. The 302 makes these quick and painless. The ±10% pitch control on the front panel can help nudge an out of tune track into tune with a musician, or totally change the tempo for dancers and aerobic workouts.

House of Worship - Many houses of worship are making recordings of their services for members who could not attend. The 302 is an ideal product for this market, offering the ability to serve as a cassette player and master recorder simultaneously. (Music could be played from one well while the recording is made on the other.)

The ability to cascade a couple of 302s for duplication comes in handy, too. One machine could be used in the main gathering area, and another machine was used with a more portable system. These two units could be brought together for duplication.

Live Theater - Since the two wells of the 302 can work independently, one well could be used for cueing a tape while the other well is playing. Also, the ability to make high quality back-ups of show cues is incredibly handy. zZounds is an authorized dealer of Tascam products.

Track System: 4 track, 2 channel stereo

Heads (per deck): (1) Erase, (1) Record/Reproduce

Type of Tape: Cassette C-60, C-90

Tape Speed:
1 7/8 ips, 4.76 cm/sec
3 3/4 ips, 9.52 cm/sec (high speed dub)

Fast Wind Time: Approximately 120 seconds for C60

Frequency Response:
40Hz-18kHz ±3dB Metal
40Hz-16kHz ±3dB CrO2
40Hz-16kHz ±3dB Normal

Signal to Noise Ratio:
>79dB Dolby C, CCIR ARM
>69dB Dolby B, CCIR ARM
>59dB Dolby off, 3% THD, Weighted

Wow and Flutter: <0.06% (WRMS)

Line RCA Inputs: -10dBV, 316mV, 36kOhms

Line RCA Outputs: -5dBu, 562mV, 1.5kOhms

Cascade Output: -8.2 dBV (389mV), 100 Ohms

Headphone Output: 15mW maximum, 32 Ohms

Dimensions: 483 x 140 x 323.9 mm (19" x 5.5" x 12.8")

Weight: 7Kg (15 7/16 lbs)
