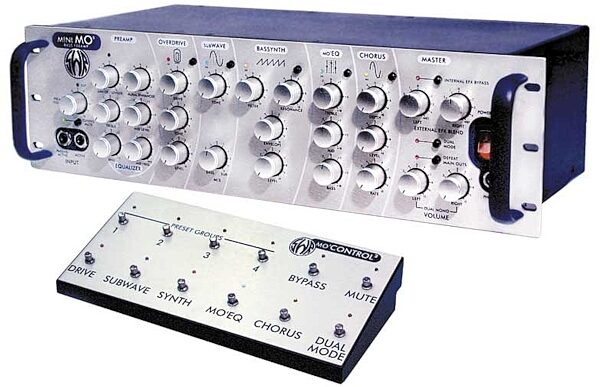

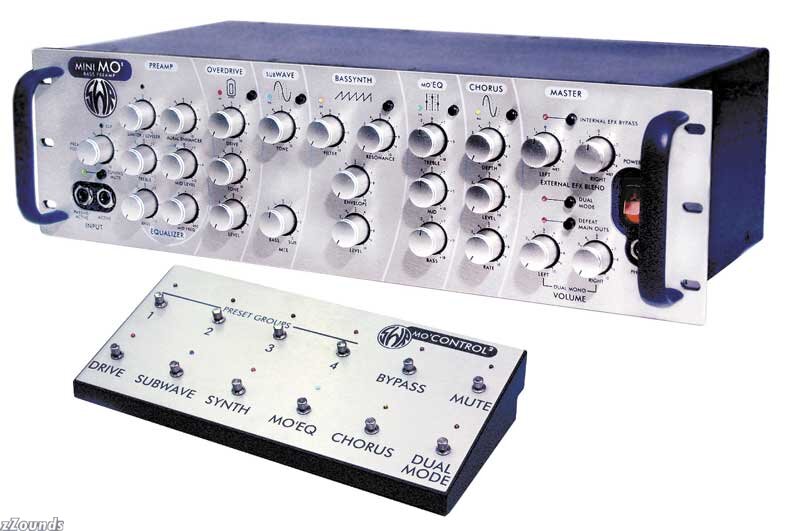

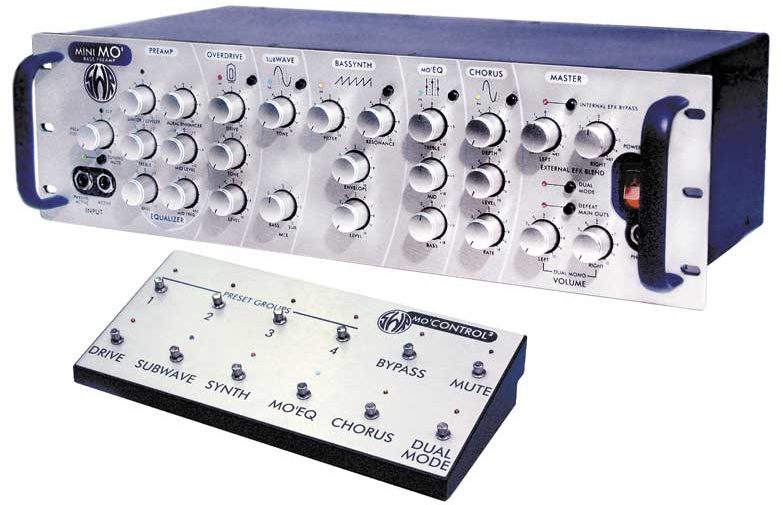

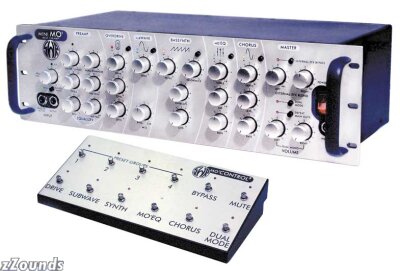

SWR Mini Mo Pro Bass Preamp with Mo Control 2

The ultimate stand-alone preamp. Professional SWR tone, five studio-quality onboard effects taken from the award-winning SWR Mo' Bass soundstation - with new features and upgrades. Included with each Mini Mo' is the new Mo' Control 2 master footswitch.

The "Mo' Control 2" is the satellite footswitch control specifically designed for the SWR Mini Mo' Bass Preamp, and is included with every Mini Mo'. Mo' Control 2 features individual controls for each effect, plus four banks for combining groups of effects, an all bypass switch, a tuning mute switch, and a "dual mode" switch which splits the signal into clean/dirty to individual sides (left and right) of the Mini Mo's pre- and post-master outputs.

Advanced features includes the ability to send simple MIDI program change commands in combination with the four preset banks and the bypass switch, 1/4" outputs for Tuner Out and Filter Sweep Pedal (for easy pedalboard patching capabilities when connecting a tuner or an expression pedal to control the Mini Mo's Bassynth Filter Sweep), and the ability to protect your presets from inadvertant reprogramming with a simple slide switch.

Technical Info

Front Panel Specifications
Dual independent input jacks compatible with both passive and active instruments

Tuning Mute Switch - mutes all audio outputs but Tuner Out (NEW)

Pre-Amp Volume Control with bi-color (green/red) LED peak clipping indicator

Variable Limiter/Leveler Control with yellow LED indicator

Aural Enhancer Control

Treble Level, Midrange Level, Midrange Frequency, and Bass Level Controls

Overdrive "Drive," Tone, and Level Controls

Subwave Tone and Mix Control

Bassynth Filter, Resonance, Envelope, and Level Controls

Mo' EQ Treble, Midrange, and Bass Controls

Chorus Depth, Level, and Rate Controls

Push switches and unique-colored LED indicators for on/off control of all effects

Internal Effects Bypass Switch with LED indicator

Left and Right External Effects Blend Controls

Dual Mode Switch with LED indicator

Defeat Main Outs Switch - mutes post-master outputs only (NEW)

Left and Right Master Volume Controls

Illuminated Neon Power On/Off Switch

Stereo Headphones Jack

Rear Panel Specifications
-Pre-Master Audio Outputs
-Direct Out 1/4 in. Jack
-Tuner Out 1/4 in. Jack
-Mo' Bass Out 1/4 in. Jack
-Direct Out 1/4 in. XLR Jack
-Mo' Bass Out XLR Jack

Line/Direct Switch for 1/4" and XLR Direct Out Jacks

Individual 3-position Pad Switches (0 db, -10 db, -20 db) for both Direct
Out and Mo' Bass Out XLR jacks

Ground/Lift Switch for both Direct Out and Mo' Bass Out XLR jacks

Stereo Effects Loop (Left and Right Send and Return Jacks)

Internal Effects Bypass Footswitch Jack

Filter Sweep Pedal Jack

"Mo' Control 2" Footswitch jack (shown as "Foot Switch")

MIDI Out jack

Post-Master Audio Outputs
-Two 1/4 in. Left Main Output Jacks
-Two 1/4 in. Right Main Output Jacks
-Two 1/4 in. Mono Main Output Jacks

One Line Fuse (3AG, 1/2 amp slow-blo)

AC Power Cord Receptacle

Sensitivity:
-Passive Input Jack: 42 millivolts
-Active Input Jack: 84 millivolts
-All line outputs: +4 dbm
-Tuner out: -10dbm
-Effects Return Jack input: +4 dbm

Dimensions (W x H x D): 19 in. x 5 in. x 8 in. (3 rack spaces)

Weight: 10 lbs.

Signal to noise ratio: -88 dB (<10 millivolts typical)

Equivalent input noise: 15 nanovolts per root/hertz

Input Impedance
-Passive/Active Input: 1 Meg Ohms
-Active Input: 47K Ohms
-Effects Return: 27K Ohms

Output Impedance
-Effects Sends: 220 Ohms
-Tuner Out: 220 Ohms
-XLR Balanced Out (with pad switch at '0 db'): 750 Ohms

Chassis Material: Aluminum

Mo' Control 2 Specifications
Top Row Switches (left to right)
-Preset Group Switch 1
-Preset Group Switch 2
-Preset Group Switch 3
-Preset Group Switch 4
-Internal Effects Bypass Switch
-Tuning Mute Switch

Bottom Row Switches
-Overdrive Switch
-SubWave Switch
-Bassynth Switch
-Mo' EQ Switch
-Chorus Switch
-Dual Mode Switch

Back Panel Features
-Filter Sweep Out Jack
-Tuner Out Jack
-Footswitch Out Jack
-Preset Group Mode Switch (Program/Protect)

Dimensions (W x H x D): 17 in. x 3.25 in. x 8.5 in.

Weight: 10 lbs.
