Studio Projects LSD2 Dual Capsule Stereo Microphone

Manufacturer's Description for Studio Projects LSD2 Dual Capsule Stereo Microphone

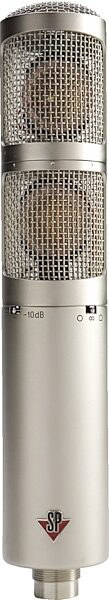

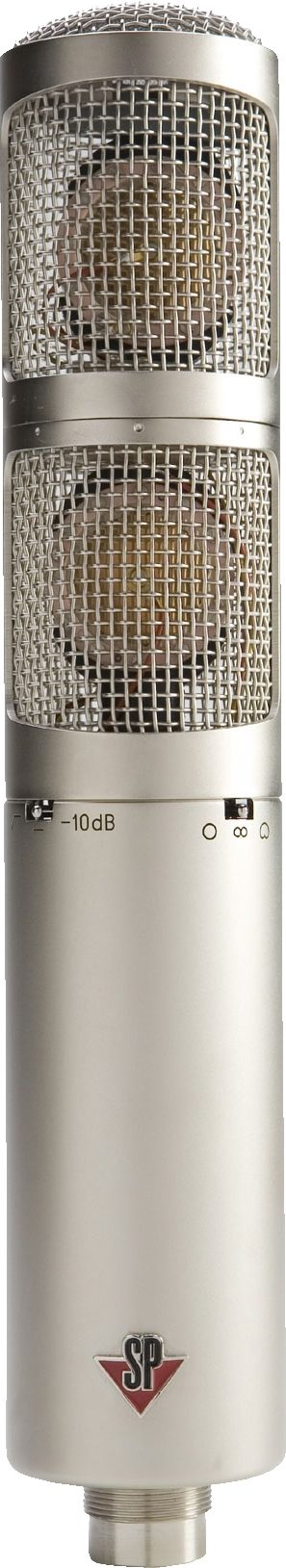

The LSD-2 is comprised of 2 separate dual-membrane solid state microphones contained within a single housing. Its capsules are mounted in close proximity on a vertical axis -- the upper capsule assembly having the ability to rotate 270 degrees horizontally, relative to the lower capsule. Two C&K 3-way switches control the polar response, high pass filtering and -10dB pad for each capsule (The switches on the front of the body correspond to the lower fixed capsule, while the switches 180 degrees opposite on the back of the mic control the rotating upper capsule). It is the combination of capsule articulation and independent pattern switching which allows a user of the LSD2 to achieve all manner of coincident pair stereophonic recording techniques. Due to the close proximity of the capsules, there is no phase cancellation resulting from time delay between the two signals. This translates into excellent mono compatibility.

The inner workings of the LSD-2 are essentially that of 2 Studio Projects Model C3 microphones. The capsules are 1.06 in. (27mm) diameter, dual membrane, Braunmuhl-Weber design. These are independently coupled through low-noise amplifiers based on FET driven discrete balanced output stages. The outer housing is plated brass with a single layer brass wire mesh grill surrounding the capsules.

Included with the LSD-2 microphone is a dedicated 7-pin XLR to dual 3-pin XLR 'Y' cable, magnum-sized foam windscreen, standard shockmount and carrying case.

Features:
Studio Quality Coincident Stereo Microphone

Twin Dual-Diaphragm Pressure Gradient Transducers

User Adjustable Stereo Image - Upper Capsule Rotates through 270 degrees

Individually Selectable Polar Response, Omni, Cardioid, Figure of Eight

Selectable -10dB pad/Hi-pass filter

Low Noise, Solid State Circuitry

Applications:
XY - Coincident Cardioids

Mid-Side Method

Stereosonic Technique (Blumlein)

Overhead Main Mic

Drums

Vocal, Voice-Over

Included Accessories:
Shock Mount Adapter

Foam Filter

Dedicated Cable

Case zZounds is an authorized dealer of Studio Projects products.

Type: Stereo condenser microphone with vertically coincident 1.06 in. (27mm.) dual diaphragms

Polar Pattern: Cardioid, Omnidirectional, Figure of 8

Frequency Response: 30~20000Hz

Sensitivity: 12mV/Pa=-38dB(0dB=1V/Pa)

Output Impedance: <200 Ohm

Load Impedance: >1200 Ohm

Maximum SPL: 132/142dB SPL for 1% THD @1000Hz(0dB/-10dB pad, 0dB SPL=0.00002Pa)

Noise: (Line)---28 dB (A weighted)---18 dB-A

S/N: 76 dB

Power Requirement: 24v.-52.5v. phantom power

Current Consumption: 2.5mA

Circuit: JFET impedance converter, discrete balanced output

Connector: Gold-plated 7-pin XLR

Size: 2.1 in. (53.34mm.) dia.

Low Cut: 6dB/Octave at 150Hz

Pad: -10dB
