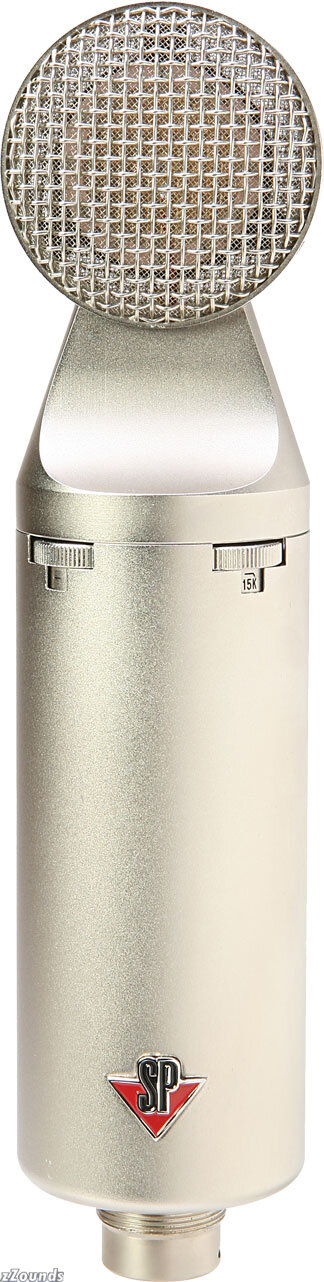

Studio Projects CS5 Large Diaphram Condenser Multi-Pattern Bottle Microphone

The Studio Projects CS5 is an externally polarized five pattern pressure gradient transducer microphones with FET impedance converter. The capsule is a 1.06 in. (27mm) capsule, with a diaphragm thickness of 6um. It features five selectable polar patterns, four selectable pads, four high pass filters, and four low pass filters for added control in various recording applications and a clear, full response expected from a large capsule microphone design.

Versatility is key in the recording arena, and the Studio Projects CS5 is well equipped to handle any recording application. It is designed to deliver the finest quality vocal and instrumental recordings and will serve to enhance any professional or project studio.

As a result of uncompromising dedication and advanced production capabilities, Studio Projects continues to broaden the range of quality pro audio microphones & electronics for today's recording environment.

Features

Pressure-Gradient Transducer: 1.06 in. (27mm) 6um mylar diaphragm

FET impedance converter

Five Polar Patterns: Cardioid, Wide Cardioid, Hyper Cardioid, Omni, Fig 8

-5dB, -10dB, -15dB, and -20dB Pads

50Hz, 75Hz, 150Hz, and 300Hz High Pass Filters @ 6dB/octave

15kHz, 7kHz, 5kHz, and 3kHz, Low Pass Filters @ 6dB/octave

Applications

Close miking of instruments with high SPLs

Announcer’s mic for broadcasting/dubbing

Home recording and project studios

Vocalist recording

Spot mic for: wind instruments, strings, percussion and guitar amps

XY - Coincident Cardioids

Mid-Side Method

Stereosonic Technique (Blumlein)

Overheads

Technical Info

Included Accessories

Shockmount

Foam wind screen

Case

CS5 Specifications

Type: Pressure gradient transducer microphone

Polar patterns: Cardioid, wide-cardioid, hypercardioid, omni, and figure-8

Frequency response: 20~20,000Hz.

Sensitivity: 14mV/Pa=-32dB(0dB=1V/Pa)

Output impedance: 200 ohm

Load impedance: 1000 ohm

Maximum SPL: 136 dB SPL for 1% THD @1,000Hz (0dB SPL=0.00002Pa) 156dB with -20dB preattenuation

Equivalent Noise Level: 13dB-A

S/N: 81 dB-A

Power requirement: 48 +/- 4V.

Current consumption: 4mA

Circuit: JFET impedance converter, discrete balanced output.

Connector: Gold-plated 3-pin XLR

Size: dia. 2 in. (52mm) length 8.5 in. (215mm)

Pads: -5dB, -10dB, -15dB, and -20dB selectable

High Pass Filters: 50Hz, 75Hz, 150Hz, and 300Hz 6dB/Octave

Low Pass Filters: 15kHz, 7kHz, 5kHz, and 3kHz 6dB/Octave
