SM Pro Audio TC02 Dual Channel Tube Preamp
The new TC02 unites both the warmth of tube pre-amplification with the silky smooth compression that only an optical compressor can deliver.
Additional Images:
Loading...
Our 30-Day 100% Satisfaction Guarantee applies on this item. Buy it, and if it isn't just right for you, return it!
Description
Docs
The new TC02 unites both the warmth of tube pre-amplification with the silky smooth compression that only an optical compressor can deliver.

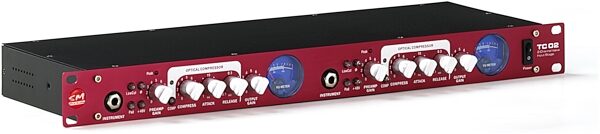

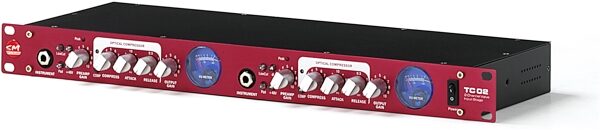

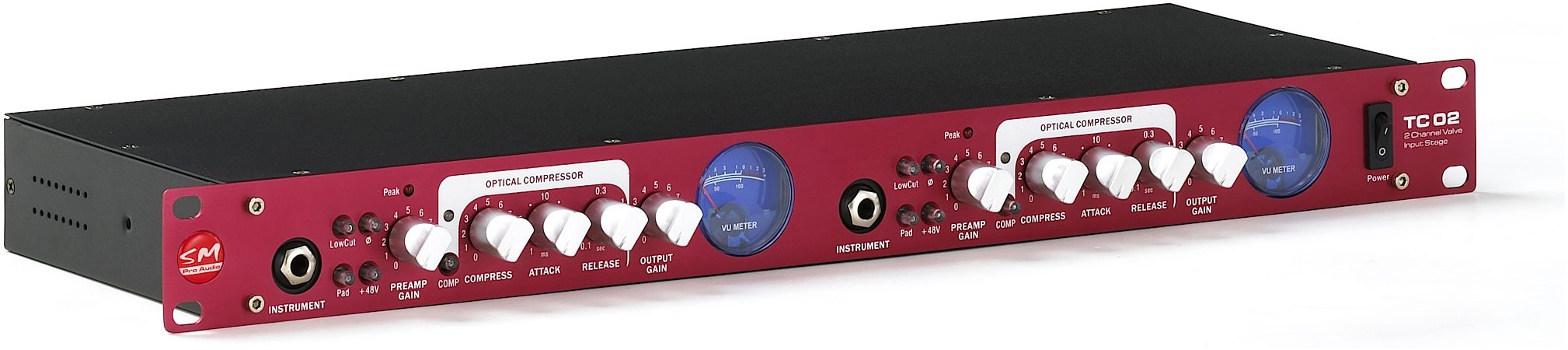

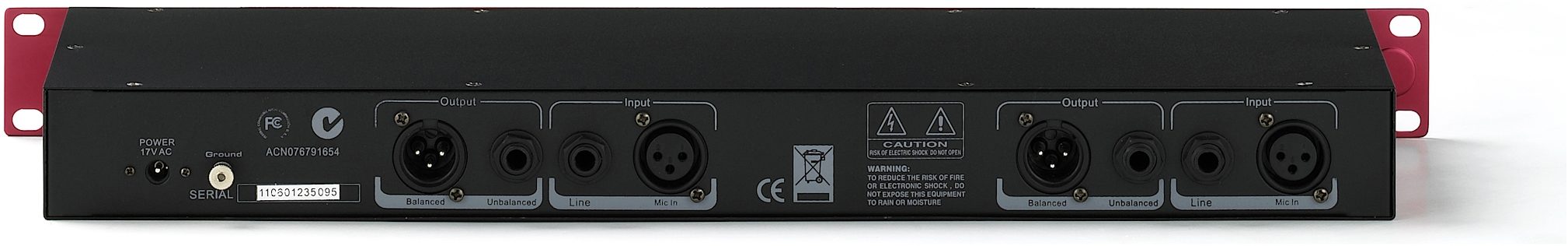

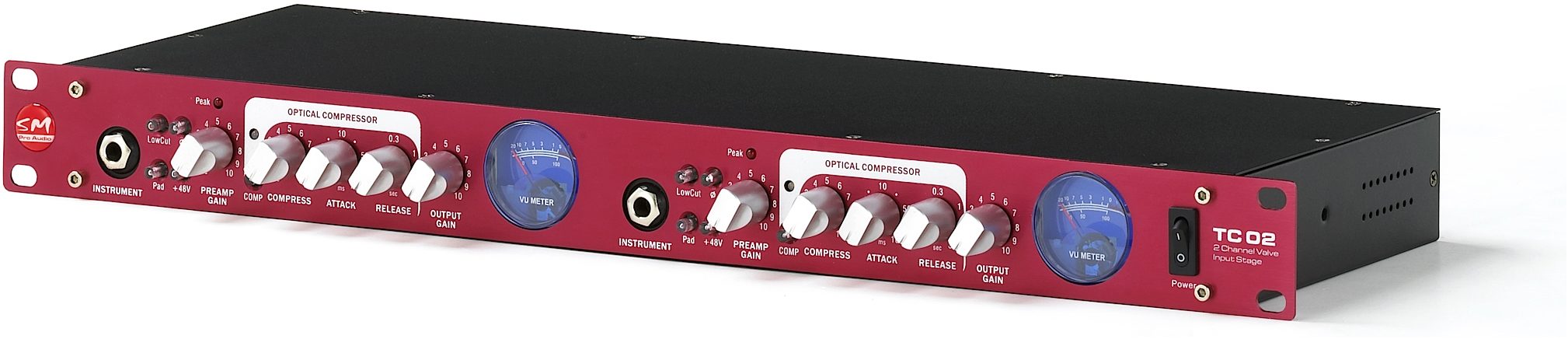

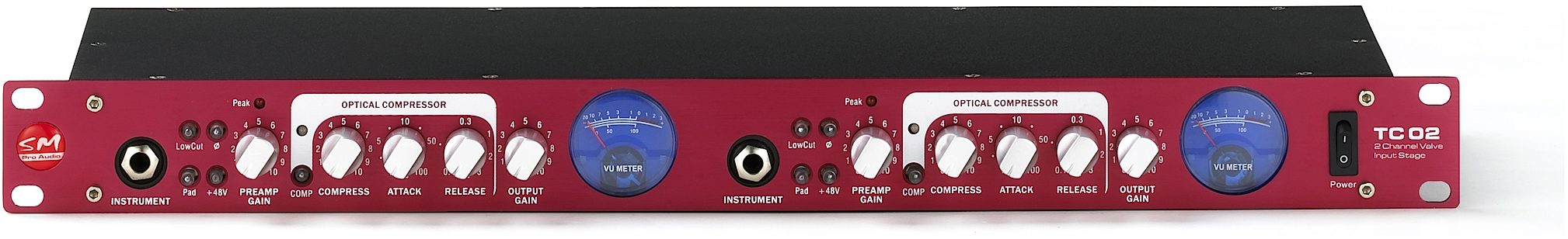

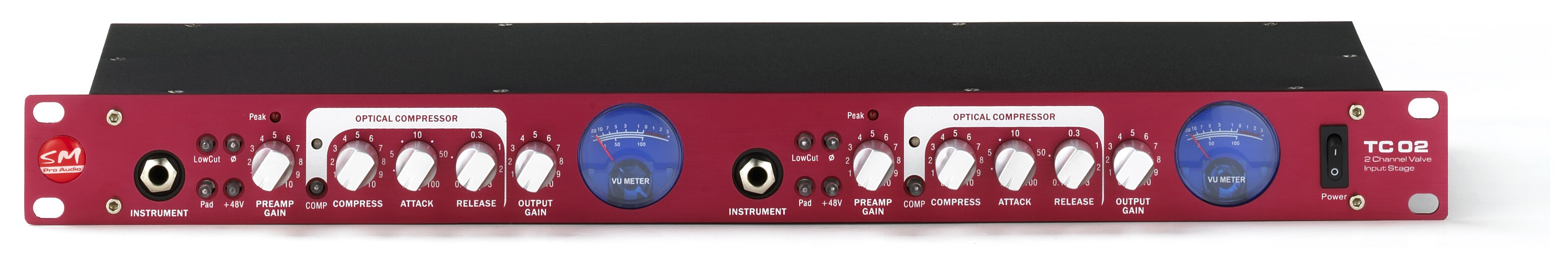

The TC02 is an adjustable two-channel CLASS A tube preamplifier featuring selectable phantom power, phase reversal, and -20 dB PAD all in a standard 19-inch rack format. Perfect as a high-quality microphone or instrument preamplifier, the TC02 can also be used as a hi-quality dual DI unit.
Features
- Hand tested 12AX7 Tube
- THD + noise (unweighted): 0.05%
- CLASS A Transformless high voltage signal path
- Saturation: 10% @ 30 dB
- Switchable Phantom Power Per Channel
- Input impedance: XLR: 5 kOhm, 6.3 mm of handle: 1 mega ohm
- Switchable Phase Reversal Per Channel
- Output impedance: XLR: 51 ohms, 6.3 mm of handle: 51 ohms
- Adjustable Optical Compressor Per Channel
- Level Display:VU-Meter -20 dBu - +3dBu
- Input gain control
- 110 V - 220 V external power pack
- Switchable -20 dB PAD Per Channel
- Size: 19 in.
- Output volume control
- Housing: Metal
The TC02 is an adjustable two-channel CLASS A tube preamplifier featuring selectable phantom power, phase reversal, and -20 dB PAD all in a standard 19-inch rack format. Perfect as a high-quality microphone or instrument preamplifier, the TC02 can also be used as a hi-quality dual DI unit.
Features
- Hand tested 12AX7 Tube
- THD + noise (unweighted): 0.05%
- CLASS A Transformless high voltage signal path
- Saturation: 10% @ 30 dB
- Switchable Phantom Power Per Channel
- Input impedance: XLR: 5 kOhm, 6.3 mm of handle: 1 mega ohm
- Switchable Phase Reversal Per Channel
- Output impedance: XLR: 51 ohms, 6.3 mm of handle: 51 ohms
- Adjustable Optical Compressor Per Channel
- Level Display:VU-Meter -20 dBu - +3dBu
- Input gain control
- 110 V - 220 V external power pack
- Switchable -20 dB PAD Per Channel
- Size: 19 in.
- Output volume control
- Housing: Metal
