This product is no longer available at zZounds.
Shop our website for related products:
(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

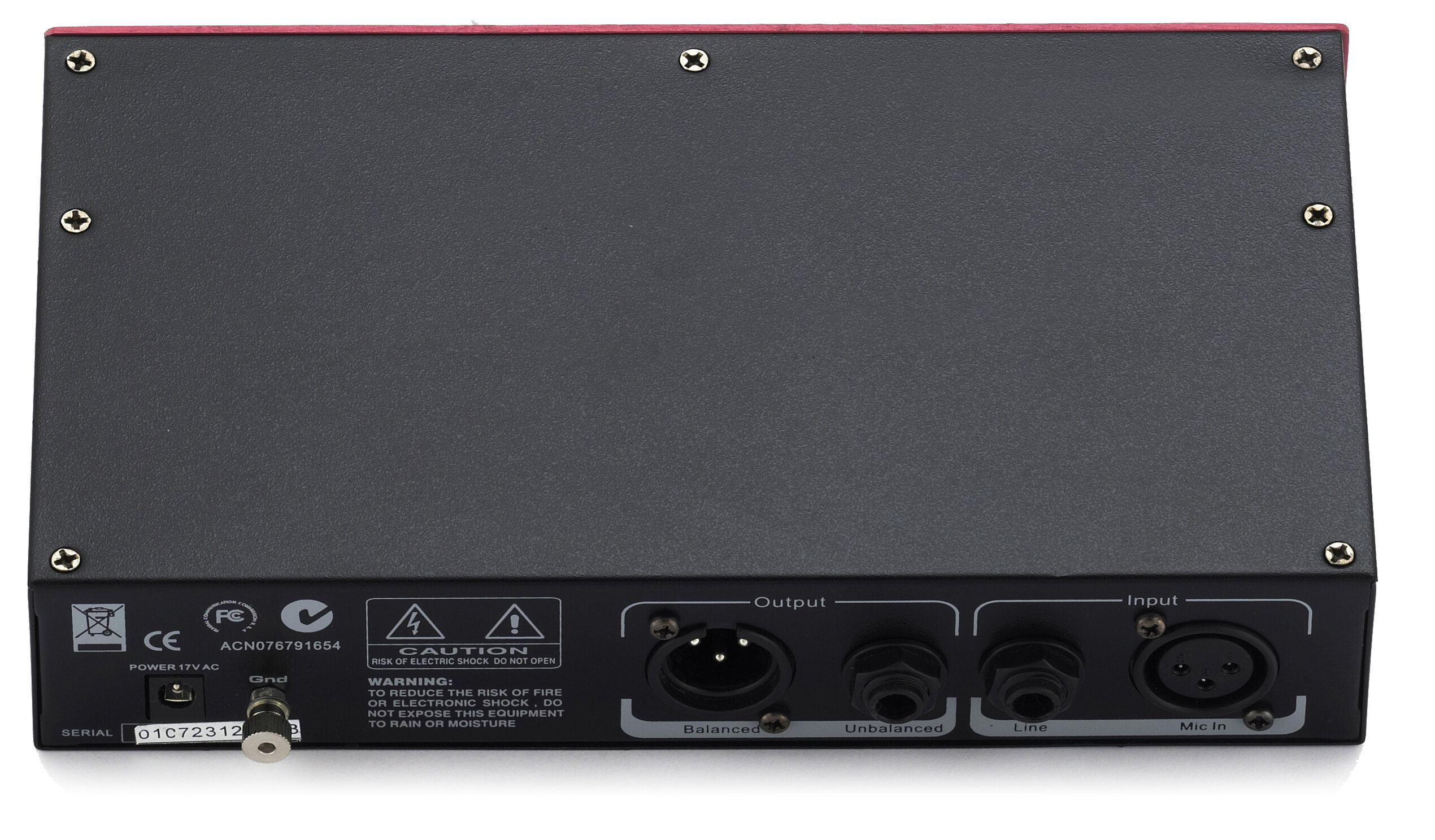

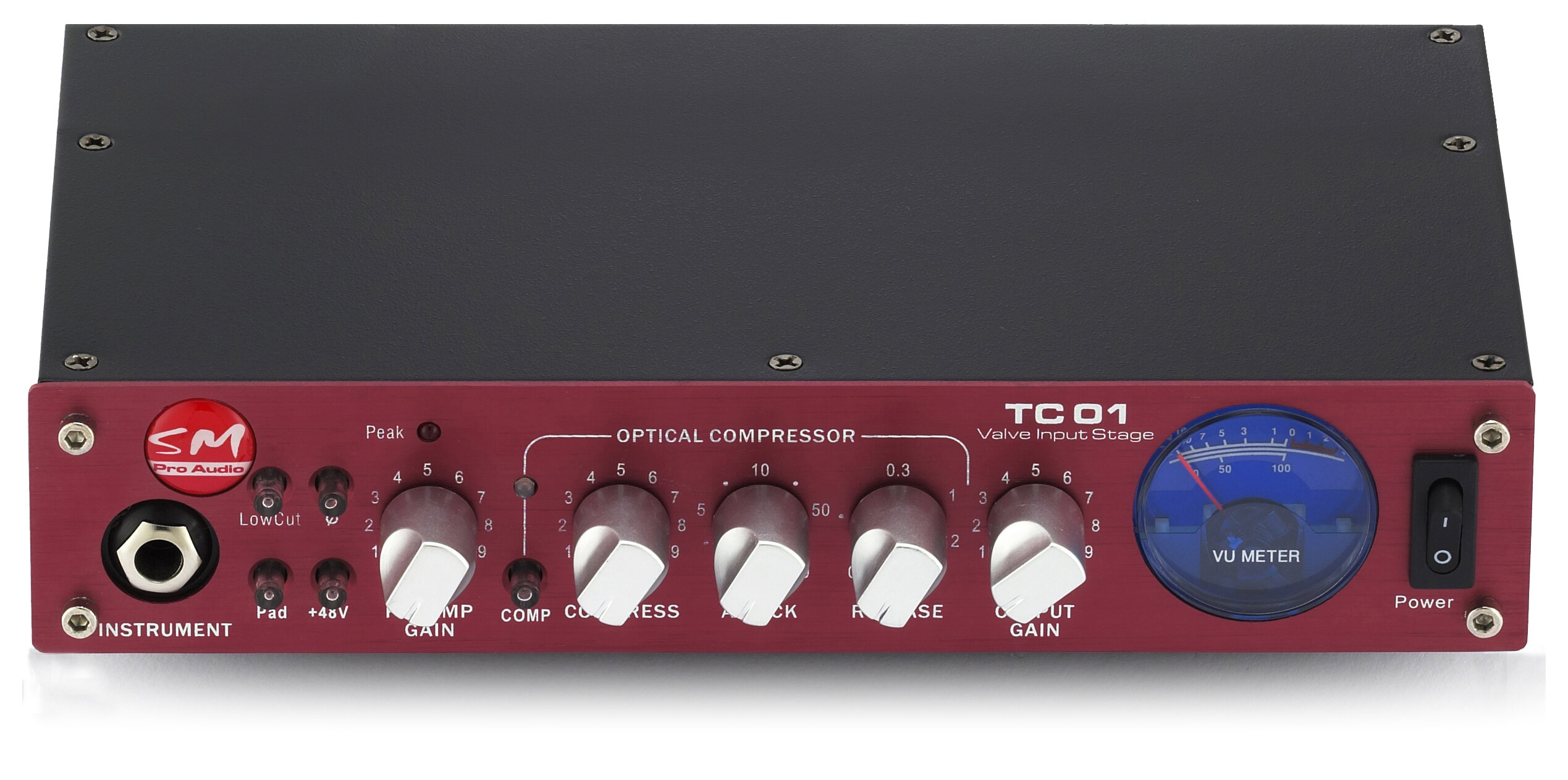

SM Pro Audio TC01 Single Channel Tube Preamp
Single-channel CLASS A tube preamplifier featuring selectable phantom power, phase reversal, adjustable -20dB PAD, and an in-line optical compressor.
Loading...
Our 30-Day 100% Satisfaction Guarantee applies on this item. Buy it, and if it isn't just right for you, return it!
Description
The TC01 is a single-channel CLASS A tube preamplifier featuring selectable phantom power, phase reversal, adjustable -20dB PAD, and an in-line optical compressor. SM Pro Audio's TC-series is the direct result of our continued development of the TB-series!
Features
- Hand tested 12AX7 Tube
- Saturation: 10% @ 30 dB
- CLASS A Transformless high voltage signal path
- Input impedance: XLR: 5 kOhm, 6.3 mm of handle: 1 mega ohm
- Switchable Phantom Power
- Output impedance: XLR: 51 ohms, 6.3 mm of handle: 51 ohms
- Switchable Phase Reversal
- Level display: Volume meter -20 dBu to +3 dBu
- Adjustable optical compressor
- 110 V - 220 V external power pack
- Input gain control
- Size: 9.5 in.
- Switchable -20 dB Pad
- Housing: Metal
- THD + noise (unweighted): 0.05%
Features
- Hand tested 12AX7 Tube
- Saturation: 10% @ 30 dB
- CLASS A Transformless high voltage signal path
- Input impedance: XLR: 5 kOhm, 6.3 mm of handle: 1 mega ohm
- Switchable Phantom Power
- Output impedance: XLR: 51 ohms, 6.3 mm of handle: 51 ohms
- Switchable Phase Reversal
- Level display: Volume meter -20 dBu to +3 dBu
- Adjustable optical compressor
- 110 V - 220 V external power pack
- Input gain control
- Size: 9.5 in.
- Switchable -20 dB Pad
- Housing: Metal
- THD + noise (unweighted): 0.05%
