The market size for digital audio interfaces and computer based digital editing has increased in a massive way. With systems available at very low prices, more and more users are utilizing this technology. One of the main problems with many of these systems is the input stage only consisting of unbalanced line inputs or very low (or no mic pre) gain structure for the balanced input stage and the unavailability of Phantom power.
The PR8 comes to the rescue with 8 channels of Balanced input, with a full range of gain control from -20dB to +40dB and Phantom power for every channel. This single rack unit can now solve many of the connectivity issues which are raised in a large range of situations, whether in the Studio, home, club installation or other live sound applications.
Features:
8-channel pre amp
Gain control per channel
Peak Light indicator
Phantom On/Off per channel
Phantom light indicator

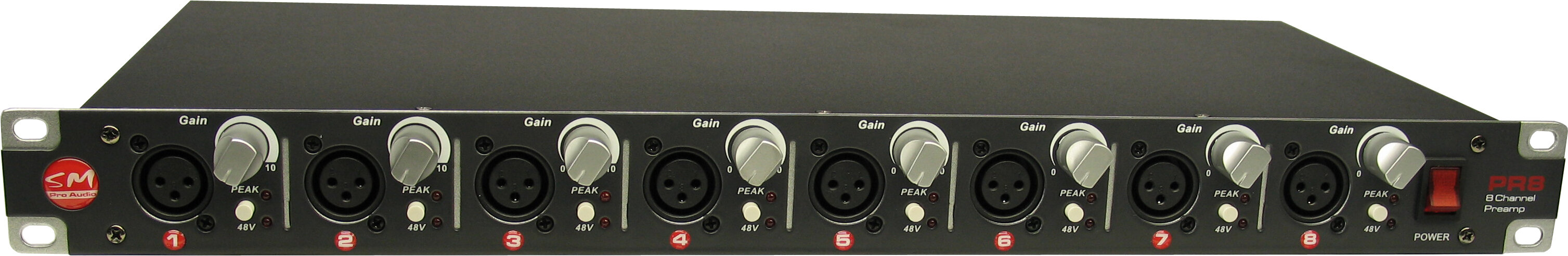

8 balanced XLR inputs

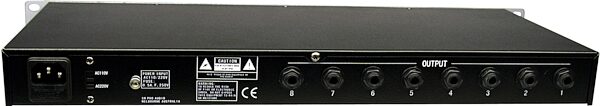

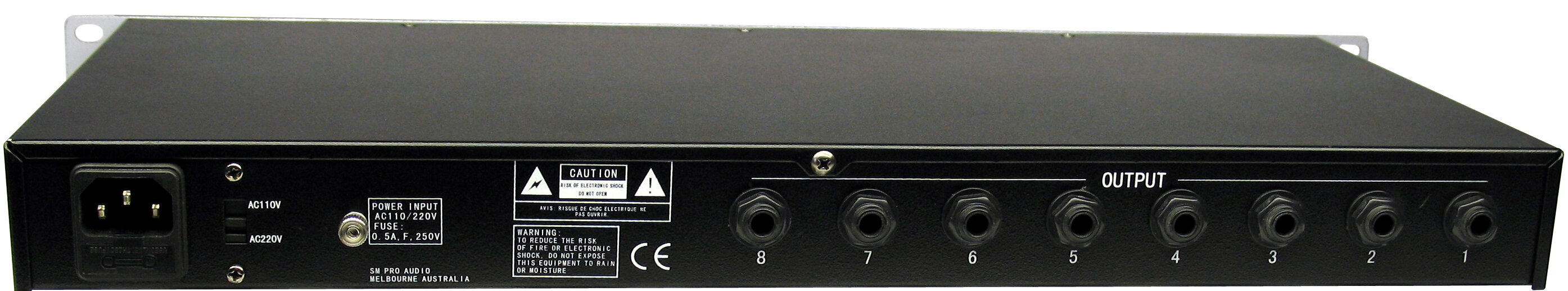

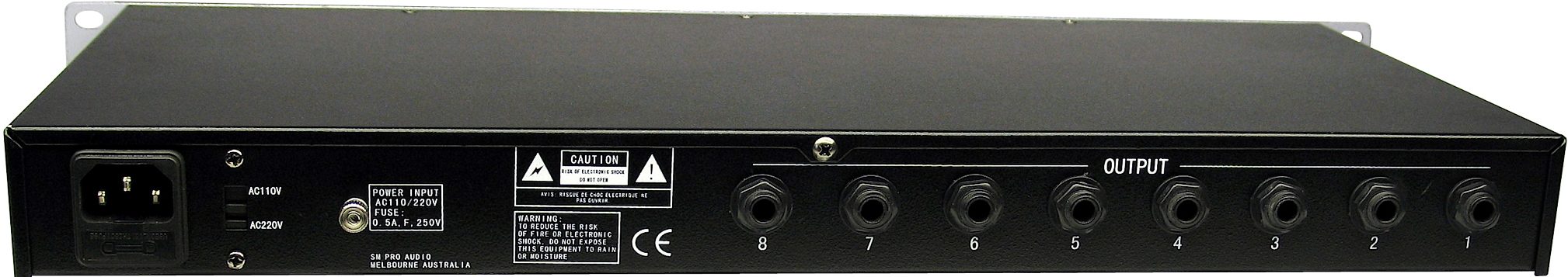

8 TRS balanced/unbalanced outputs @+4dB
Technical Info
Mic Channel Noise: < -120dB
Distortion: < .05% 20Hz- 20kHz
110v-240v internal power supply
Size : 45(1u) x 482 x 152(mm)
Add balanced inputs, gain control, and phantom power to your computer interface! Eight balanced XLR inputs with dedicated trim knobs and switchable phantom power. Eight TRS balanced/unbalanced outs at +4 dB.
