SM Pro Audio EP84 8-Channel Microphone Preamp

The EP84 is the latest multi-channel microphone preamplifier from SM Pro Audio. Packed with quality features and connectivity options, this sturdy 2RU rack-mountable unit is designed to provide studio users with 8 channels of pristine microphone preamplification. The EP84 is the perfect front end for computer audio systems, stand-alone hard disk recorders, or just about any other analog or digital workstation.

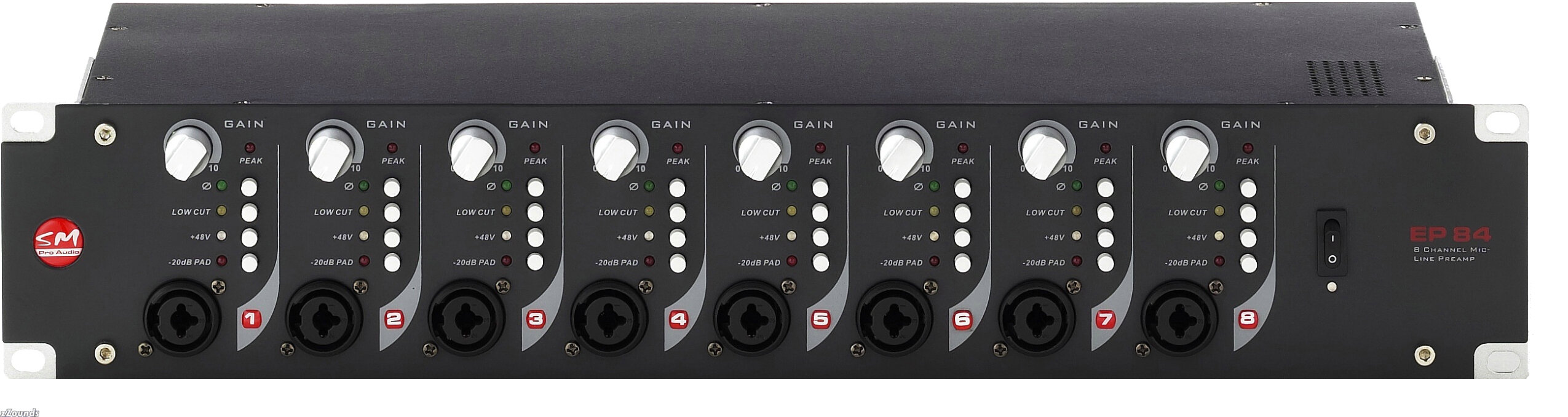

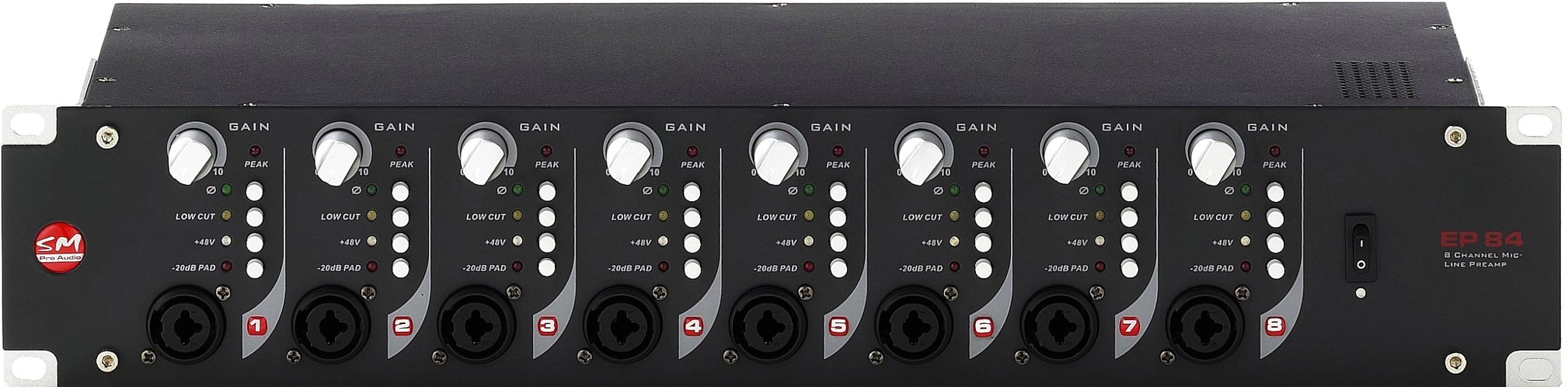

With all the functionality of a top line preamplifier, the EP84 features independent variable gain control, -20dB pad, phase reverse, low cut filters, 48v Phantom power, and insert points on each of the eight (8) channels.

Each mic-pre provides some 60dB of gain with a massive 23db of maximum output.

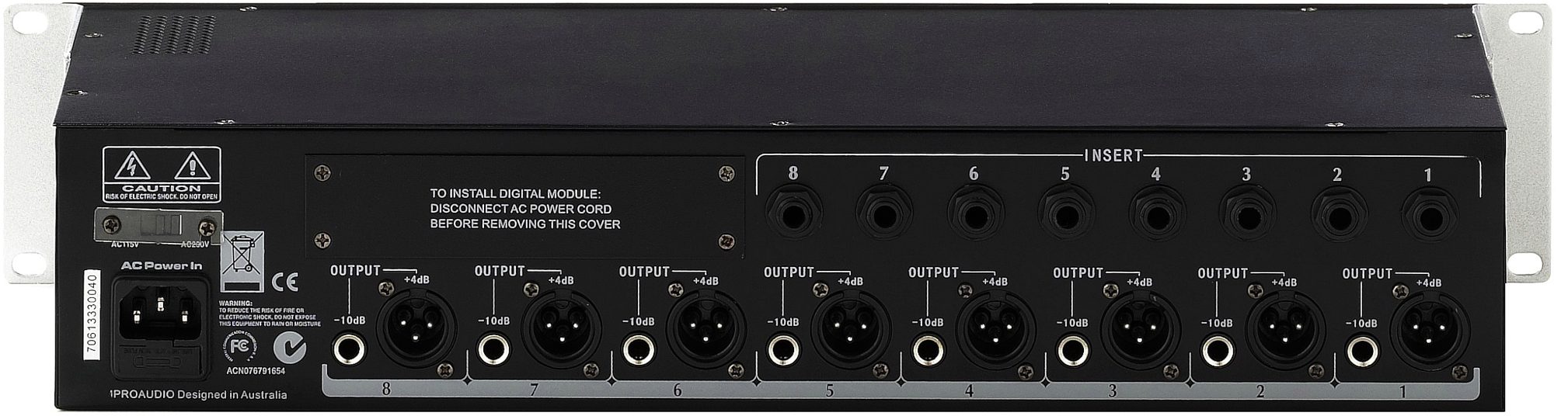

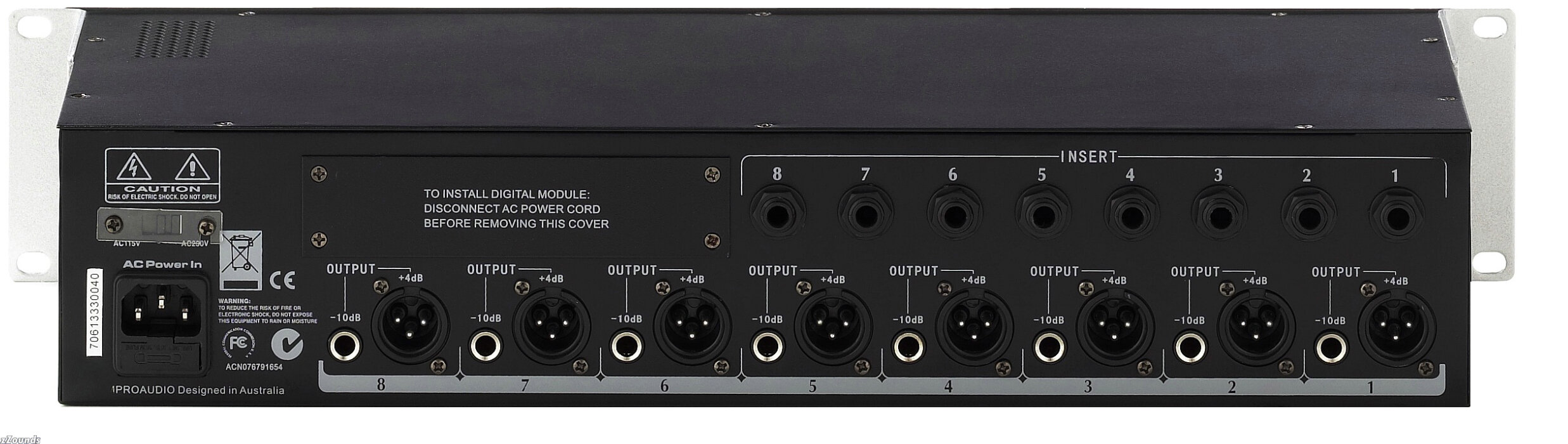

Eight (8) ADAT format channel outputs can be added to the EP84 via installation of the optional PR8IIA ADAT output module. With this simple user installed option, the EP84 integrates superbly into today’s digital studio environments without a hitch. Great for connection to the latest ADAT compatible audio interfaces, the EP84 expands your recording possibilities. Why not make use of the features you have and mic up the whole band!

*Note: The analog outputs (both +4dB XLR & -10 dB TS) and the digital ADAT ouput (when fitted with the PR8IIA output module) operate simultaneously.

Technical Info

8 x discrete microphone preamplifiers

Mic In: Min sensitivity -60 dB

Modular PCB design

Mic In: Peak input level +9.5 dB

XLR and TRS inputs and outputs

Line In: Impedance 47K

Insert points per channel

Line In: Min sensitivity: -35dB

Ultra-Wide Dynamic Range

Line In: Peak input level: +32 dB

Low-Noise Operating Levels

Output: Impedance: 600 Ohms

Peak Light per channel

Peak output level:+23dB

48V Phantom Power per channel

Frequency response: 20Hz- 20KHz 0dB- -0.5dB

Phase reverse per channel

Distortion: 0.005%

-20dB Pad per channel

S/N: > 105dB

Gain control per channel

Crosstalk rejection: >120dB @1KHz; -20dB input

80 Hz Low cut filter per channel

Max Gain: 58dB

optional ADAT Module (PR8IIA)

Housing: Metal

Mic Ins: Impedance 47K Ohms
