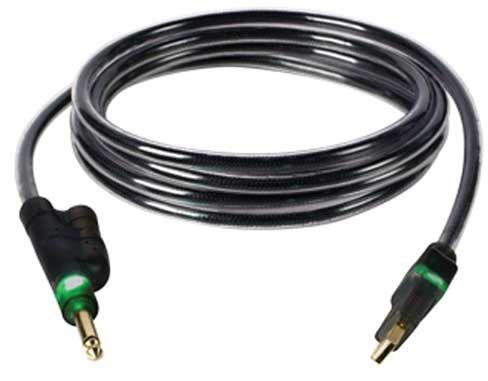

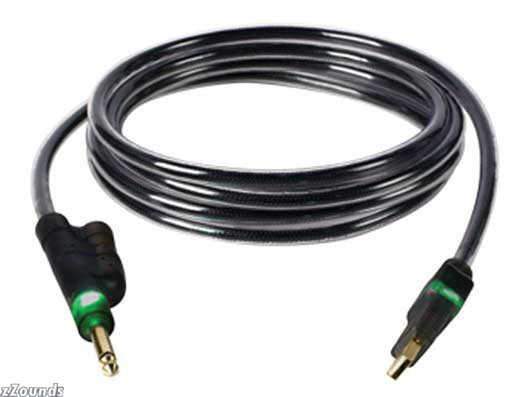

SoundTech STUSBG10 LightSnake USB Instrument Cable

This LightSnake cable is a 1/4 inch to USB cable that is ideal for recording guitars or other musical instruments on your computer. The LightSnake instrument cable is basically a “Soundcard in a Cable” that allows you to record digital audio directly onto a computer. It is as simple as connecting the 1/4 inch mono plug of the LightSnake cable to an instrument and then connecting the USB end to a computer USB port. This is a true USB plug and play connection. No additional drivers are needed for most operating systems. An embedded 16 Bit Analog to Digital Converter with audio signal boost ensures extremely low audio loss and 48/44.1 KHz Sampling Rate provides a high audio quality while recording. The HSDL (Host Side Data Loss) Noise Reduction function prevents any unwanted noise when converting the audio signal to digital format and saving to a computer.

Technical Info

Resolution: 16 bit 48/44.1KHz

THD + N (-3dBr): -76.1 dB

SNR: 83.1 dB

Dynamic Range: 81.6 dB

Input impedance: 1M Ohms

Frequency Response: 48KHz: 20 - 19.2KHz

Signal Input Range: 0 - 2.88 Vpp

Signal Boost Gain: +20 Db

Cable Length: 10Ft / 3.05M

USB Bus Powered

Complaint with USB2.0 Full Speed Operation

Compliant with USB Audio Device Class Specification v1.0

System Requirements
PC with Windows 98/SE, Me, 2000, XP or Vista

PC with Linux

Mac OS 9.0.4 or higher

Computer with USB port

Package Contents
1/4 in. to USB Cable

1/4 in. to Mini Adapter

User Guide

PC driver CD

Sony Media Software 30 day Demo DVD* - Including Acid(R), Sound Forge(R), Vegas(R) and many other titles

*Sony demo software requires Windows 2000 or XP
