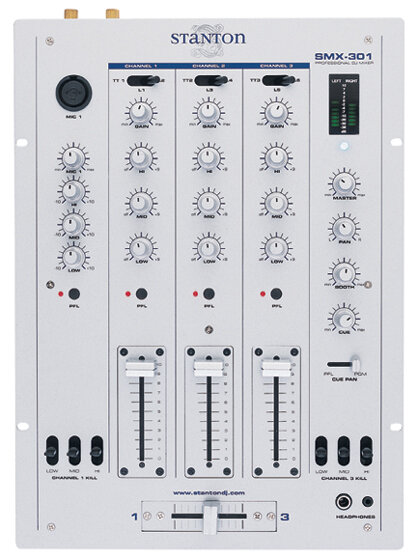

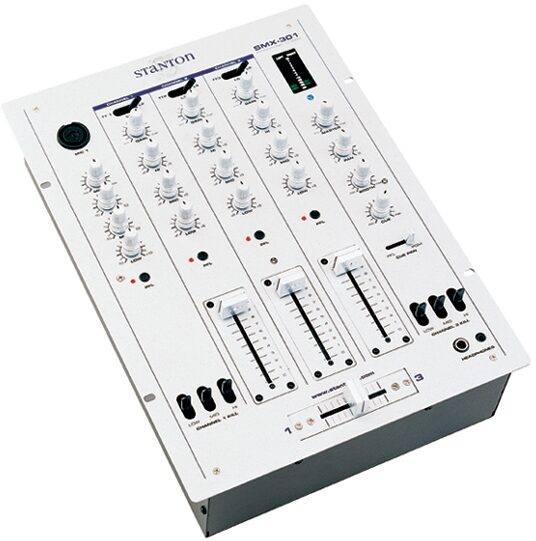

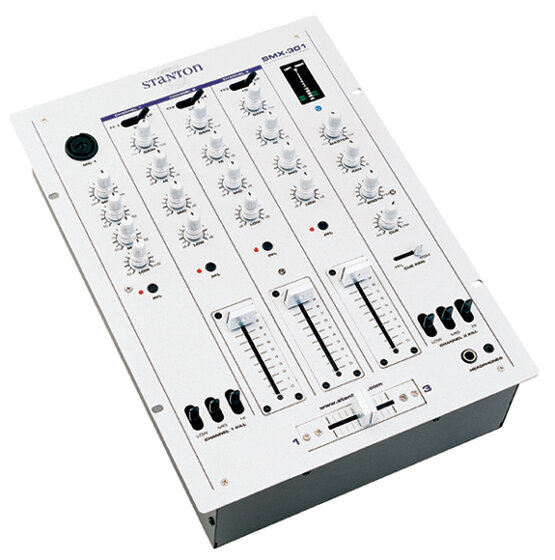

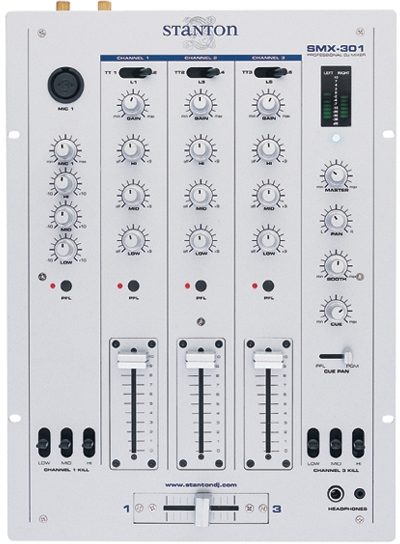

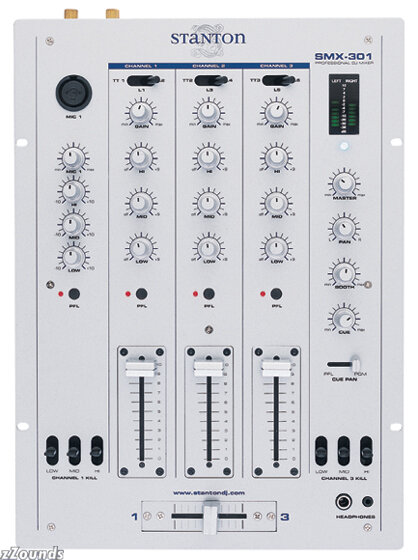

Stanton SMX301 DJ Mixer

30-Day 100% Satisfaction Guarantee Applies On This Item - Buy it, and if it isn't just right for you, return it!

About This Product!

Description

Docs

The audio quality of the SMX-301 is nothing short of revolutionary for DJ mixers in its price class. The SMX-301 borrows from the technology used in the SMX-401 and other Superior Sound Technology Series Mixers in order to bring you unprecedented sound quality, great core features, and excellent value.

Features
User replaceable faders & crossfader

Balanced Booth output (1/4 in.)

Balanced Master output (1/4 in.)

Cue section features PFL & Cue Pan

2 headphone outputs

Kill switches for channels 1 and 3 located near the crossfader

Mic channel features 3 band EQ

Gain and 3 band EQ, on each channel

3 phono, 6 line, 1 mic input

SST - Superior Sound Technology

Ultra Low Noise Circuitry

No Bleed Through

Low Distortion

Technical Info

Frequency Response (Line): 20 Hz to 20 kHz +/-1.3 dB

THD+N: 0.015% at 1 kHz

Signal to Noise Ratio (ref: max level): 110 dB (main signal path)

Noise: -92 dBV (Line input to any output)

Channel EQ: Hi +9, -45 dB, Kill: -45 dB
Mid +9, -35 dB, Kill: -35 dB
Low +9, -25dB, Kill: -55 dB

Crosstalk (Phono to Line / Line to Line / Phono to Line): -90 dB at 1 kHz

Channel and Cross Fader Kill:-90 dB

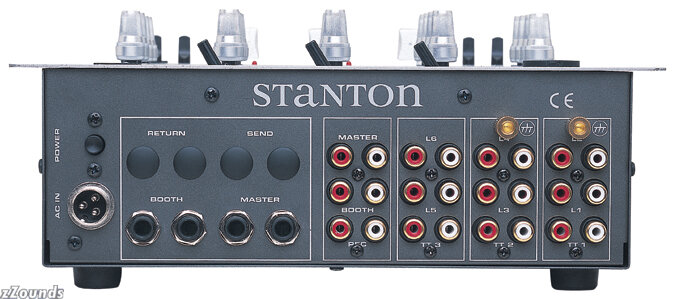

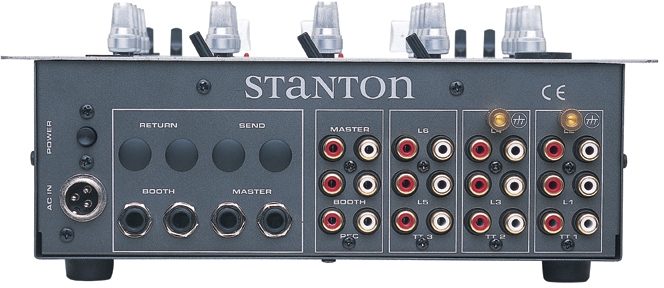

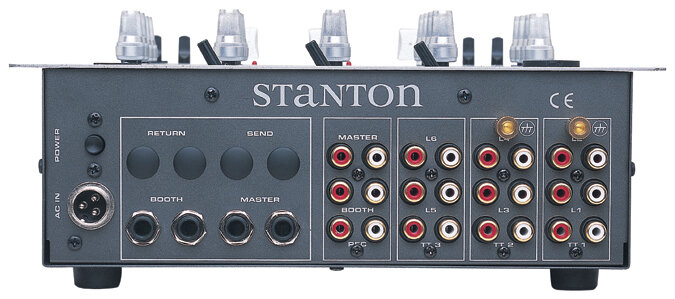

Line Inputs: 2 (RCA) x 3 channels, -10 dBV /10 kOhm

Phono Inputs: 2 (RCA) x 3 channels, -50 dBV / 47 kOhm

Mic Inputs: 1(1/4 in.)/ 1 XLR -50 dBV / 4.7 kOhm

Master Outputs: 2 (1/4 in.) Balanced/ (RCA) unbalanced, +4 dBu balanced / -10 dBV unbalanced

Record Outputs: 2 (RCA), -10 dBV / 100 Ohms

Booth Outputs: 2 (RCA), -10 dBV / 100 Ohms

Headphone Output: 1 (1/4 in.), 1 (1/8 in.) greater than 32 Ohm load

Dimensions (LxWxD): 15.3 x 10.2 x 4.3 in (39 x 26 x 11 cm)

Weight: 7.0 lbs (3.2 kg)
