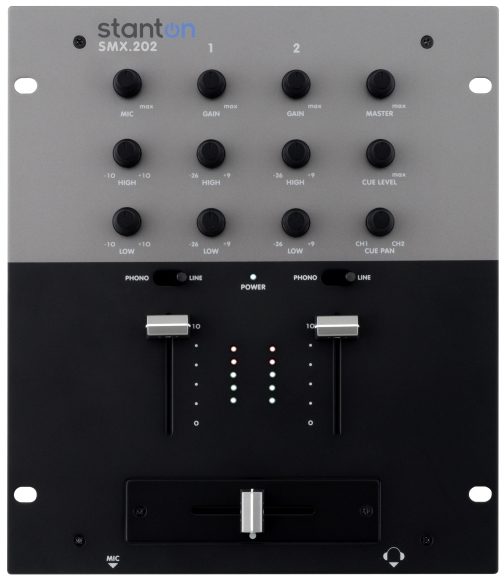

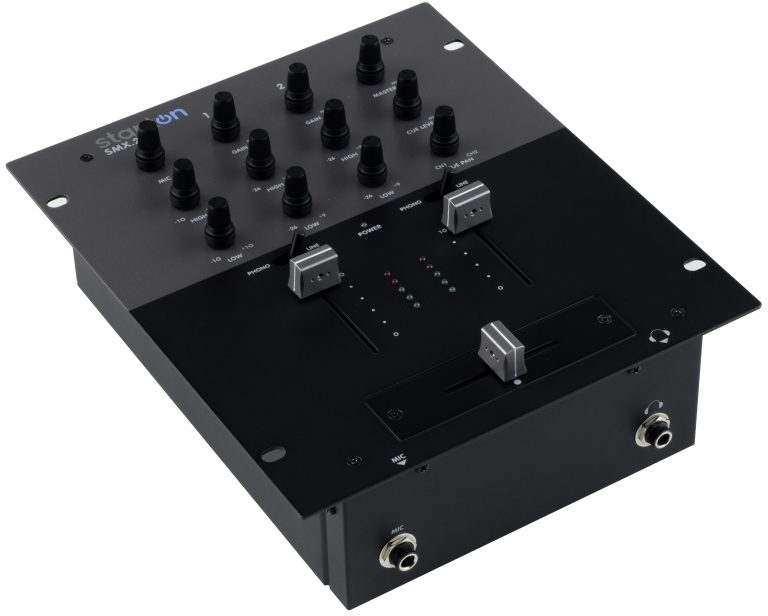

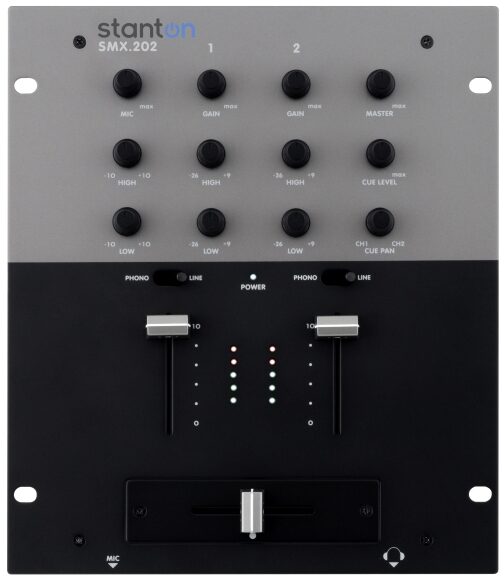

The SMX.202 features a simple design that makes it easy to get up and running quick, whether mixing vinyl or CD.
Features
# Sturdy All Metal Construction for Extreme Use
# 2 Line and 2 Phono Inputs.
# 2 Band EQ and Gain Control per Channel.
# Cue Section Features Cue Level and Cue Pan.
# Mic Input with 2 Band EQ
# User Replaceable Faders
# Compact Size
Technical Info
Specifications
Line inputs: 2 (RCA), -10dB/47K ohm
Phono inputs: 2 (RCA), -50dB/47K ohm
DJ mic input: 1 (1/4"), -50dB/6K ohm
Master output: 1 (RCA), -10dB/47K ohm
Mic Tone: +/-10dB (Hi, Low)
Tone Control: +9/-26dB (Hi, Mid, Low)
Headphone output: 1 (1/4"), -3dB/33 ohms
Frequency Response: 20 Hz - 20 kHz, +/- 2dB
Gain Control: 0-20dB
S/N Ratio: Less than 75dB
T.H.D.: Less than 0.2%
Dimensions (L x W x D): 10 1/2 x 9 x 3 1/2 in., 265 x 228 x 87mm
Weight: 6.6 lbs (2.8 kg)
