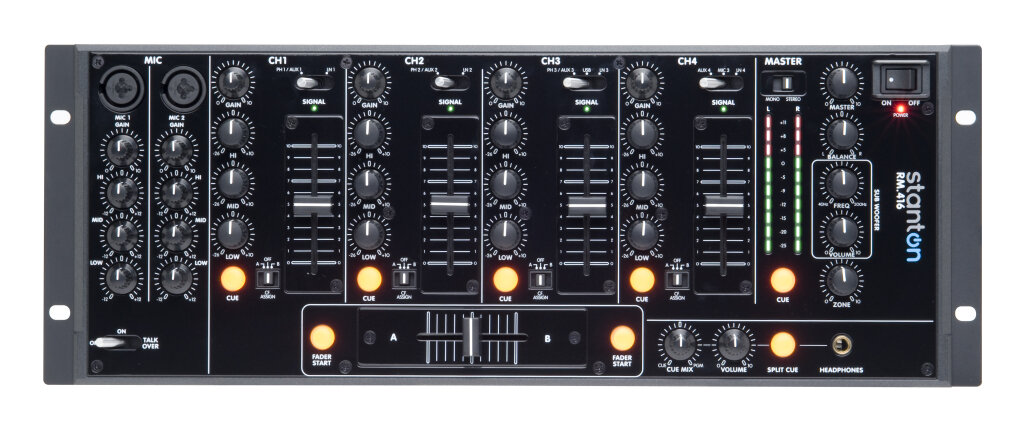

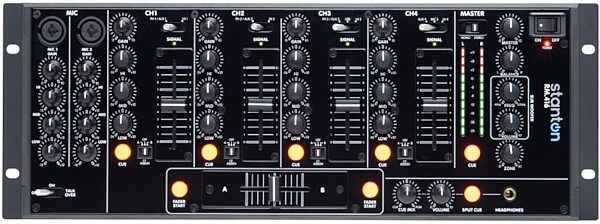

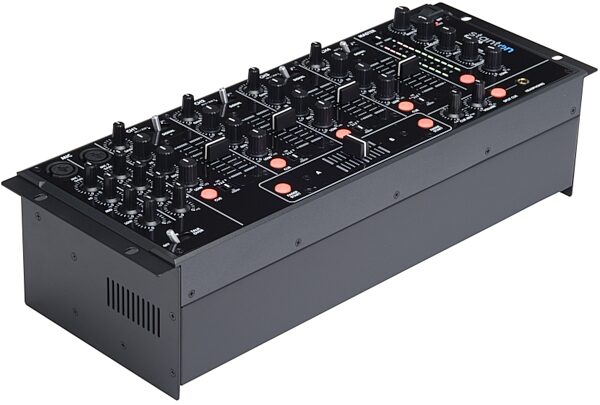

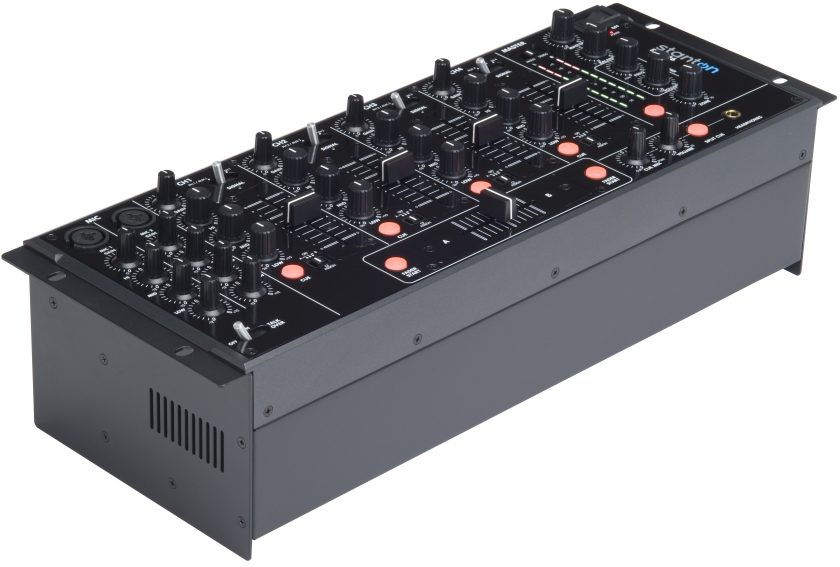

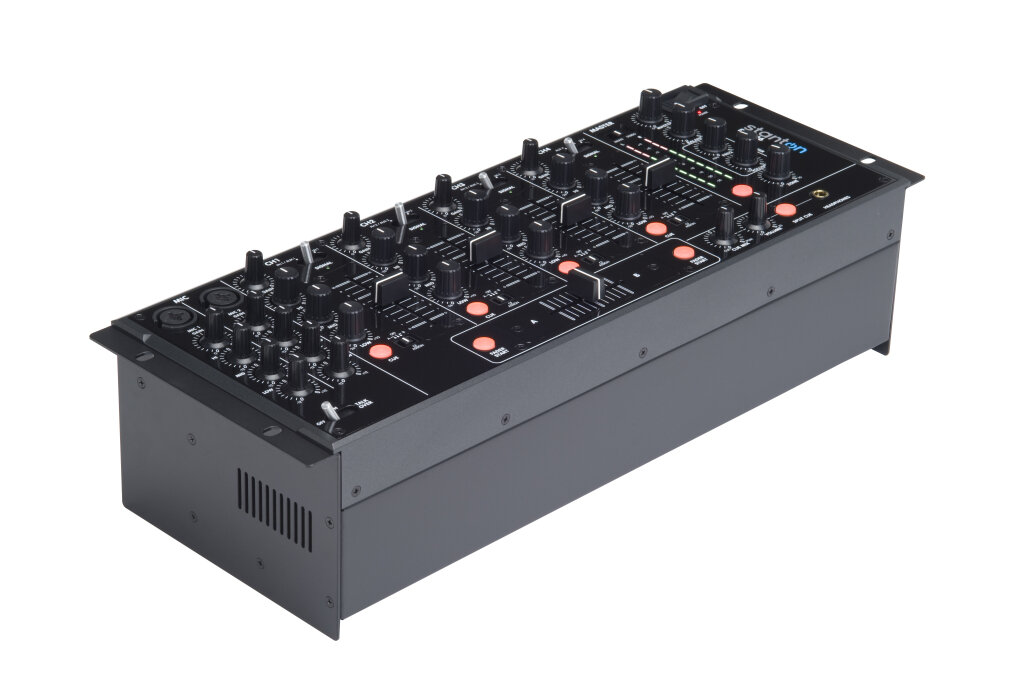

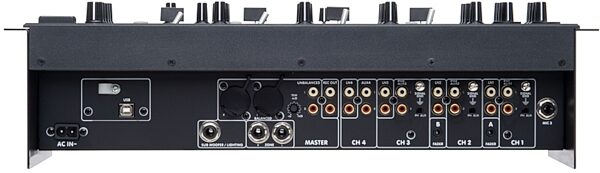

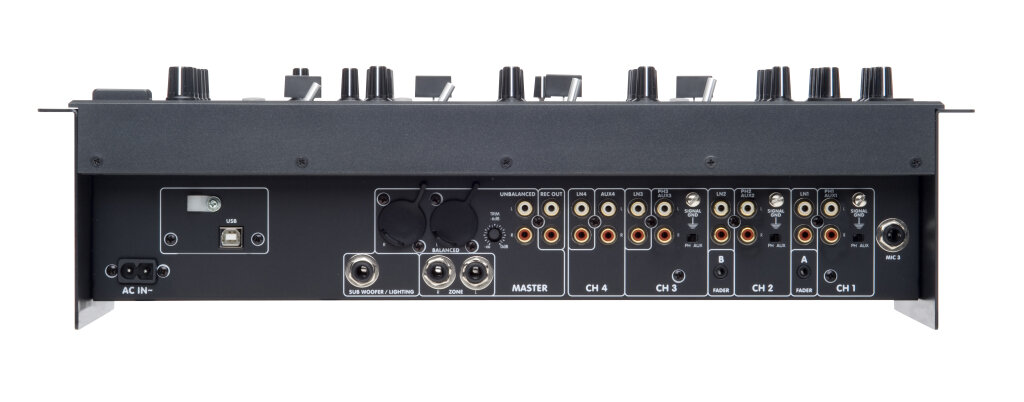

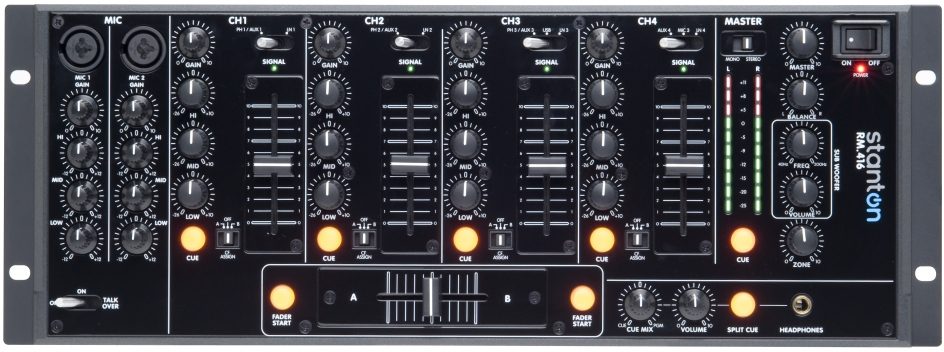

Stanton RM416 Rackmount DJ Mixer (4-Channel)

Product Description

The RM.416 is Stanton's next addition to the RM (Rack Mount) series of mixers. With four traditional channels coupled with three microphone inputs the RM.416 is a perfect mixer for the most demanding mobile or club DJ. In addition to a vast array of traditional connectivity the RM features a USB connection for either playing music from your favorite DJ application or recording your mix in real time. Additionally the RM.416 features a subwoofer output with built-in crossover control minimizing the need for an external crossover while maintaining the ability to adjust the output to perfectly match your sound system. All of these features are packed into a 4 space rack unit with rugged metal inner chassis ensuring that the components are protected from damage and maintaining a consistent feel through the long life of the product.

Specifications

- 4 Channel 19 in. rackmount mixer Soft power on/off for silent operation

- 2 Front panel microphone inputs with Gain and 3-band EQ

- USB connection for recording to or playback from a computer

- 3 Band EQ per channel (-26 dB to +10 dB)

- Subwoofer output with gain and crossover (40Hz-200Hz) control

- VCA crossfader reduces noise and improves life of fader

- User replaceable crossfader and linefaders

- Balanced XLR master output with trim control

- Balanced 1/4 in. zone output (Booth/Aux out)

- 3 Microphone, 8 stereo line, and 3 stereo phono/line switchable inputs

- Talkover control for front panel microphone inputs A / B / Bypass crossfader assign per channel Signal indicator for each channel

- 10 segment LED metering for master output Versatile cueing section with cue/master mix control

- Illuminated CUE and Fader Start buttons

- Unbalanced Stereo RCA record output

- Internal power supply (AC 110-240V switchable)

- Fader start control for triggering external CD players with crossfader

- Mono / Stereo switch for master output

zZounds is an authorized dealer of Stanton products.

- Input / Output Impedance & Sensitivity:

- Frequency Response: 20 Hz to 20 kHz +2/-3 dB

- THD+N (line) : < 0.05% at 20 Hz to 20 kHz

- S/N Ratio: Line (ref to Max. Level) Dynamic Range -80 dBV

- Crosstalk (Channel to Channel) : > 70 dB at 1kHz

- Fader Kill Crossfader: < -75 dB at 1 kHz

- Channel fader: < -75 dB at 1 kHz

- Mic Talkover: -14 dB

- Channel EQ 3 band type:

- Hi: +10, -26 dB

- Mid: +10, -26 dB

- Low: +10, -26 dB

- Mic EQ 3 band type:

- Hi: +12, -12 dB

- Mid: +12, -12 dB

- Low: +12, -12 dB

- Fader Start: 2 (1/8 in.) Control outputs

- Line Inputs: x16 (RCA) x8 Stereo Line inputs (3 switchable from phono), -14 dBV / 20 k ohm

- Phono Inputs: x6 (RCA) x3 Stereo Phono inputs, -50 dBV / 47 k ohm

- Mic Inputs: x2 (XLR) Mic inputs, -54 dBV / 10 k ohm x1 (1/4 in.) Mic input, -54 dBV / 10 k ohm

- Master Outputs: x2 (XLR) Stereo Balanced output, +4 dBm / 600 ohm x2 (RCA) Stereo Unbalanced output, 0 dB / 300 ohm 0 dB - Kill trim control

- Subwoofer Output: x2 (1/4 in.) Mono Balanced output, +2 dBm / 600 ohm 40 Hz - 200 Hz LP Filter Control

- Zone Output: x2 (1/4 in.) Stereo Balanced output, +4 dBm / 600 ohm

- Headphone Output: x1 (1/4 in.) Stereo Headphone output, +9.5 dBV /33 ohm

- Record Output: X2 (RCA) Stereo Unbalanced output, -10 dBV / 1 k ohm

- USB:

- x2 Stereo channels output (routed to CH4)

- x2 Stereo input (from master bus)

- WDM / CoreAudio Class Compliant
