Product Description

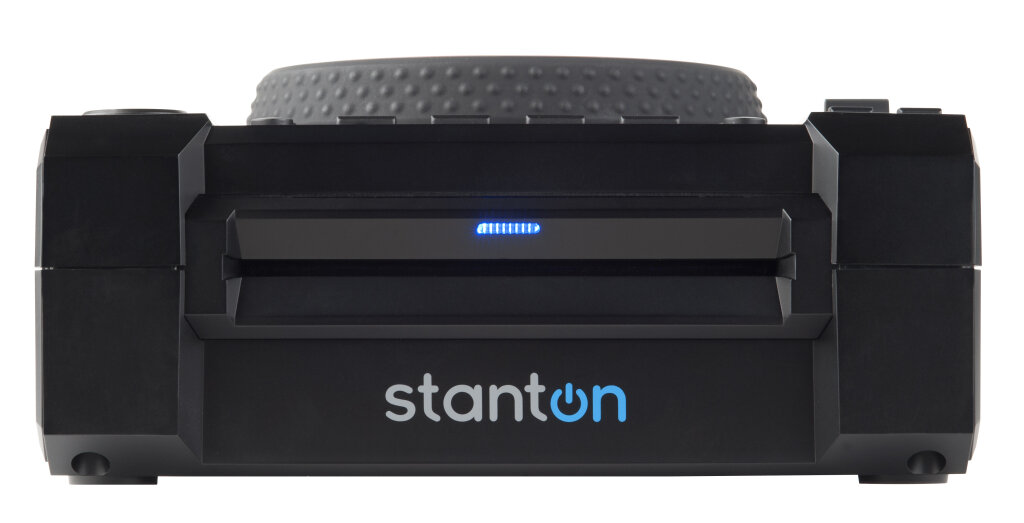

The Stanton CMP.800 Cross-Media player provides all the features needed for today's technology-minded DJ. Providing a redesigned high-resolution Jog wheel with Multi-style, illuminated position indicator, CD & Mass-Storage Device playback, built-in sampler, hot-cues, loops beat-synchronized FX and full MIDI control, the Stanton CMP.800 is a true high performance DJ cross-media player at an unbelievable price point that won't break the bank.

Multi-Format Playback

The Stanton CMP.800 builds on existing CD and CD-MP3 playback functionality by including the ability to playback MP3's stored on external USB thumb drives and hard drives. The "ChainLink" feature allows you to connect two Stanton CMP.800s via a single USB cable to share a single external USB mass storage device between the two players. This way, DJs don't have to manage multiple storage devices, and can show up to the party with only a single Mass Storage device. The included "Media Wallet" software, allows you to sort and prepare their media for playback, creating playlists and organizing their songs on your computer before a gig.

Full MIDI Control

The Stanton CMP.800 also performs as a fully-functional MIDI controller allowing you to control applications (such as Native Instrument's Traktor and Mixvibes Cross) with full assignment of virtually every button and knob on the top panel as well as Deck A/B assignment.

Auto Beat Loop

The Stanton CMP.800 includes both traditional Manually-Controlled Loops and BPM-Controlled Auto Beat Loop functionality, with 6 different loop lengths. Loop length can be adjusted during playback allowing you to create unique mixes and stutter effects.

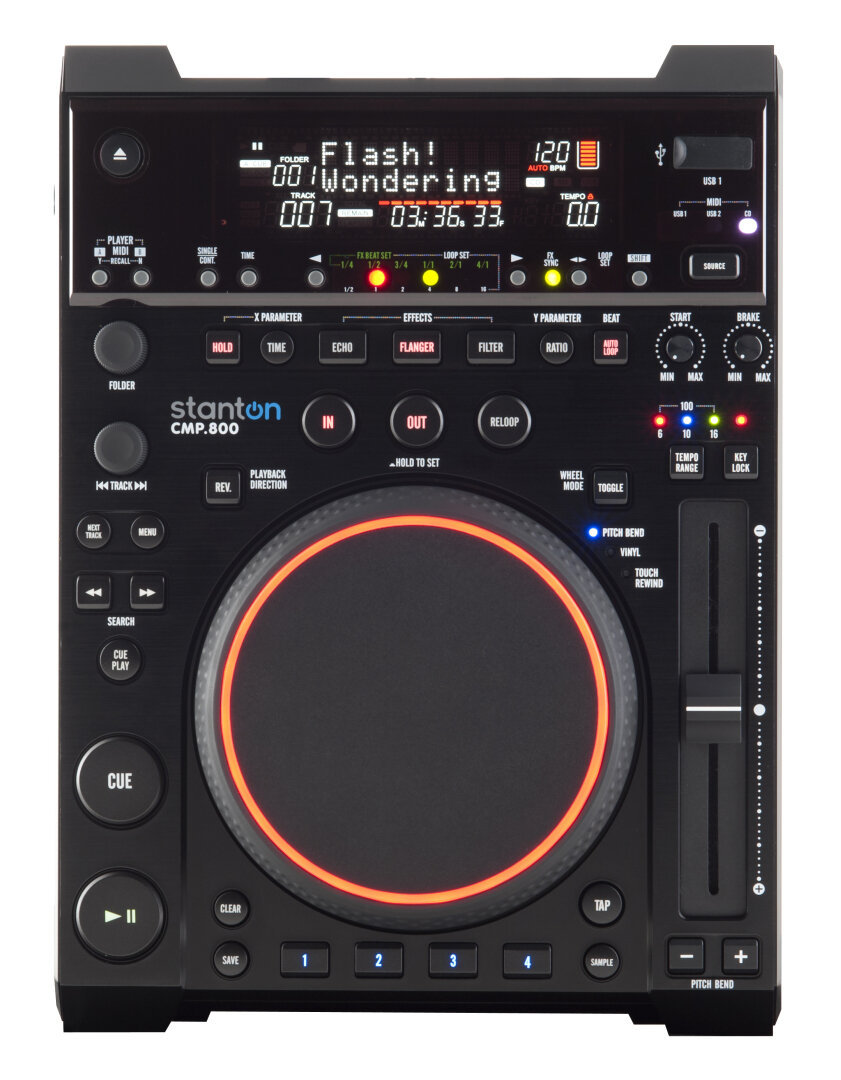

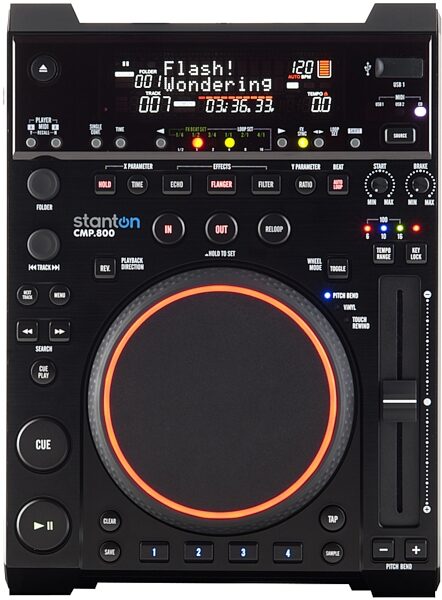

Multi-Function Jog Wheel with Illuminated Jog Ring

The Stanton CMP.800 features a high resolution, touch-sensitive illuminated platter wheel for easy viewing of cue points and speed, with 9 different LED modes. The Stanton CMP.800 platter can even control functions such as pitch bending, loop end point, tscanning, frame searching, parameter control for effects, and pitch/volume control for sampling.

3 Beat-Syncable DSP Effects

The Stanton CMP.800 provides 3 high-quality DSP effects, derived from the award-winning M.207 mixer, including Echo, Flanger, and Filter with 2 control parameters per effect.

Hot Cues and Loops

The Stanton CMP.800 can store up to 4 Hot Cues per song, with an internal memory of 2048 cue points for audio CD's and MP3 CD's. Also, Hot Cues can be stored on your USB Mass-Storage device for expandable and virtually unlimited Cue and loop storage.

4-Bank Sampler

For even more creative remix possibilities, the Stanton CMP.700 lets DJs store four 5-second samples on the unit that can be played simultaneously with your currently playing track (CD or MP3). Sample playback is controlled from the 4 rugged rubber trigger pads on the front of the unit, and have available pitch and volume control for mixing the samples with currently playing material. zZounds is an authorized dealer of Stanton products.

- Sound Characteristics:

- Output Level:

- CD: Typical 2V +/-0.5dB, Limit 2V +/-1dB @1KHz, 0dB

- USB1,2: Typical 1.85V +/-0.5dB, Limit 1.85V +/-1dB

- Channel Balance: Typical within 0.2dB, Limit within 1dB, @ 1KHz, 0dB

- Frequency Response:

- CD: Typical 17-20KHz +/-0.4dB, Limit 17-20KHz +/-1dB @0dB OUTPUT

- USB1,2: Typical 17-16KHz +/-0.2dB, Limit 17-16KHz +/-1dB

- De-Emphasis: CD Typical -20dB +/-0.2dB, Limit -20dB +/-1dB 16KHz,-20dB

- Channel Separation: CD, USB1,2 Typical 91dB 85dB, Limit 1KHz, 0dB

- THD+N :

- CD: Typical 0.006%, Limit 0.01% @1KHz, 0dB

- USB1,2: Typical 0.007%, Limit 0.01% @ 1KHz, 0dB

- S/N Ratio: Typical 126dB, Limit 90dB @ 1KHz, 0dB

- Phones Output Level: CD Typical 0.35V +/-0.5dB 0.35V +/-1dB @1KHz, -20dB

- DIGITAL Output Level: Typical 0.5 +/-0.03V P-P, Limit 0.5 +/-0.1V P-P @ 75 ohm load

- *(USB Test format: MP3, 128kbps; load=100K ohm)

- CD Search Time:

- Short Access Time: 2sec 4sec Play Next Track

- Long Access Time: 4sec 6sec Track 1 to 20,20 TO 1

- Interruption: 1mm 0.7mm TCD-725

- Black Dot: 1mm 0.6mm TCD-725

- Finger Prints: 75um 65um TCD-725

- Eccentricity: 140um 140um TCD-712 W/O Track Jump

- Vertical Deviation: 1mm 0.5mm TCD-731R

- Scratch: 2mm 1.2mm TCD-721 W/O Track Jump

- Disc Format:

- Applicable file extensions mp3 . MP3 . mP3 . Mp3

- ISO9660 max. 63 characters

- Joliet max. 63 characters

- CD-ROM sector format mode-1 only

- Max number of folders: 255

- Max number of files: 999 total (max 255 files in each folder)

- USB Format:

- File System: Fat 12/16/32

- Applicable file extensions mp3. MP3. mP3. Mp3

- Max number of folders: 255

- Max number of files: 999 total

- MP3 Format:

- MPEG 1 Layer 3 standard (ISO/IEC 11172-3): (sampling rates of 32, 44.1, 48kHz): 32/40/48/56/80/96/112/128/160/192/224/256/320 kbps Xing/VBRI

- VBR:

- MPEG 2 Layer 3 standard (ISO/IEC 13818-3) (sampling rates of 16, 22.05 and 24 kHz): 32/40/48/56/64/80/96/112/144/160 Kbps Xing/VBRI VBR

- MPEG 2.5 Layer 3 standard (8, 11.025 and 12 kHz): 32/40/48/56/64/80/96/112/144/160 Kbps Xing/VBRI VBR

- Disc Writing Method:

- Disc at Once and Track at Once

- Multi Session: If the 1st session is CDDA, you can playback Only CDDA track, If the 1st session is MP3, you can playback only MP3 file.

- Power: AC100-240V, 50/60Hz, 19W

- Size (W x D x H): 218 x 296 x 103.5 mm

- Weight: 2.5 kg

Dimensions and Weight in Packaging

Shipping Weight: 7 lbs

Shipping Dimensions: 17 x 13 x 9 in
