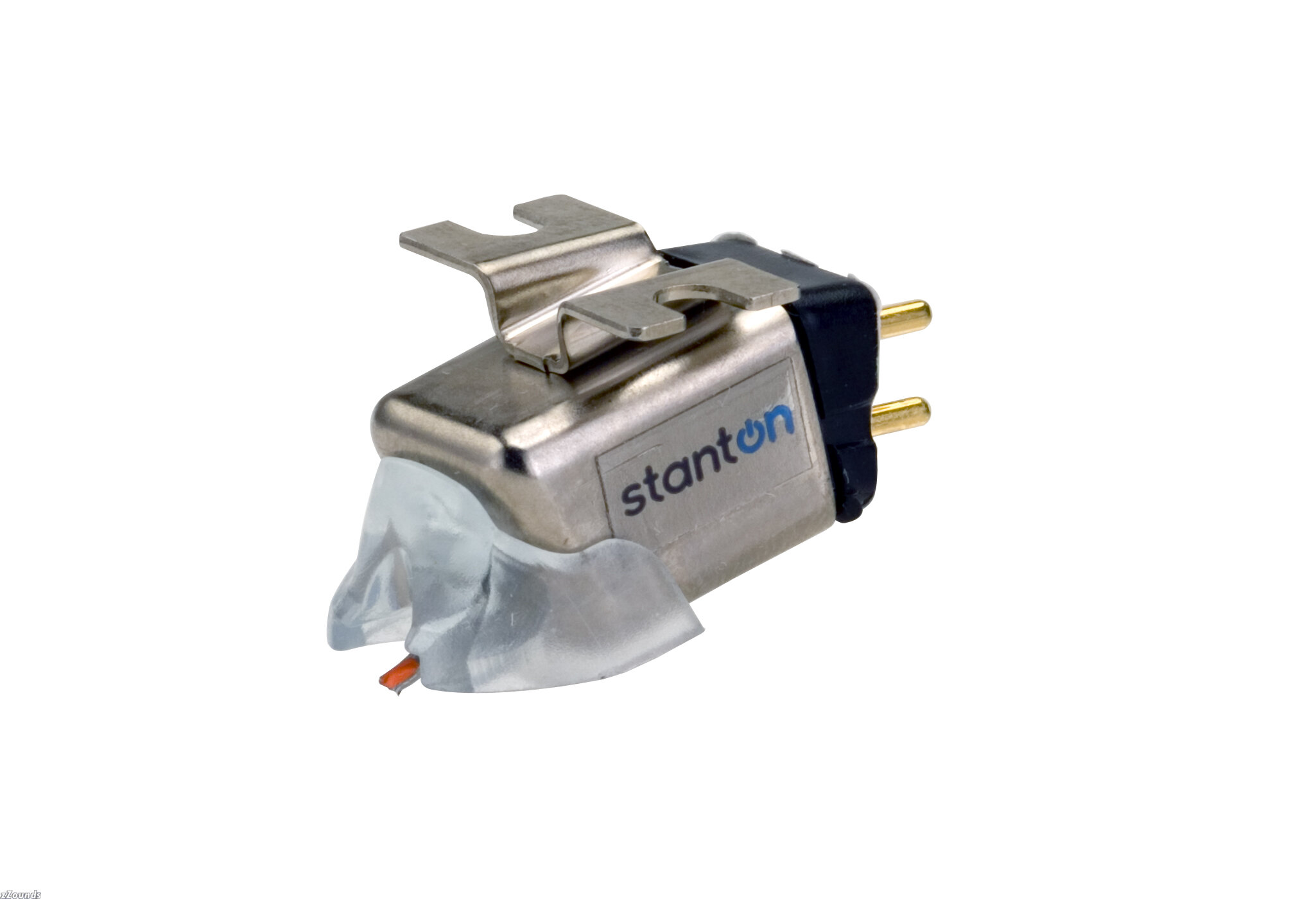

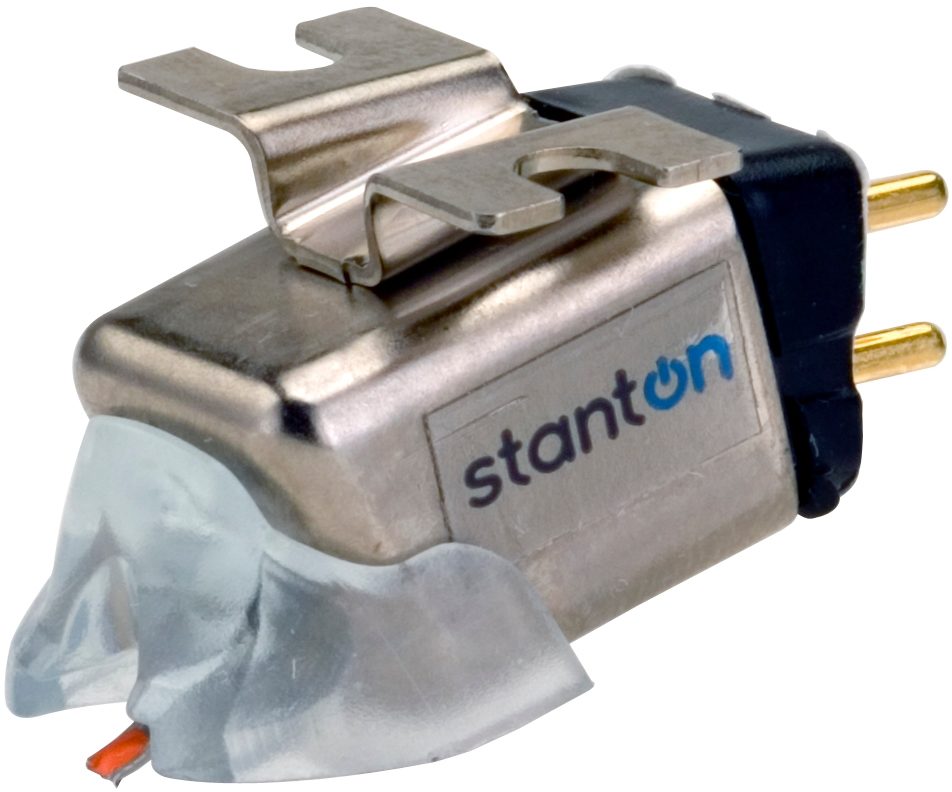

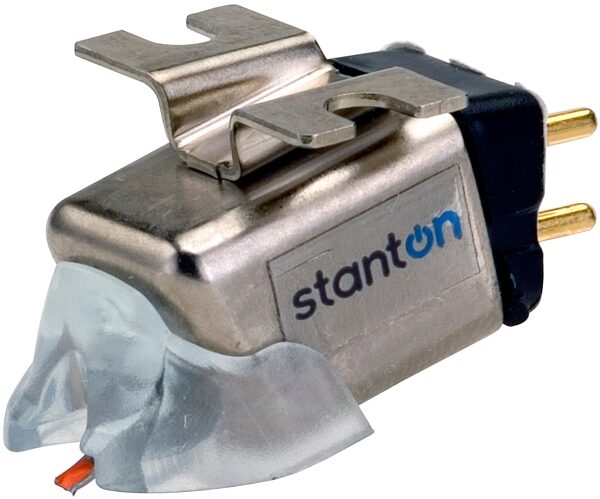

Designed with the most demanding cueing in mind, the 520.V3 offers the tightest suspension in the 500 family of products. The results: this cartridge can take the most demanding loads and deliver on point tracking during backspinning and scratching.
Perfect for: Hip-hop / Scratch DJs
Features
# Best cartridge in the 500 series for scratching
# Tight suspension performs at any tracking weight
# New industrial design
Technical Info
Specifications
Frequency Response: 20 to 17 kHz
Output @ 1kHz: 6.0mV
Channel Separation @ 1 kHz: 27dB
Channel Balance @ 1 kHz: within 2 dB
Tracking Force: 2 to 5 grams
Stylus Tip: Spherical .7 mil
Special High Polish
DC Resistance: 535 ohms.
Inductance: 400 mH
Cartridge Weight: 5.5 grams
Tracking Ability: 80u @ 3 grams
Recommended Load: 47k ohms and 275 pF
Replacement Stylus: N 520
05/11
Just added to the site! New, be the first on your block to order!
