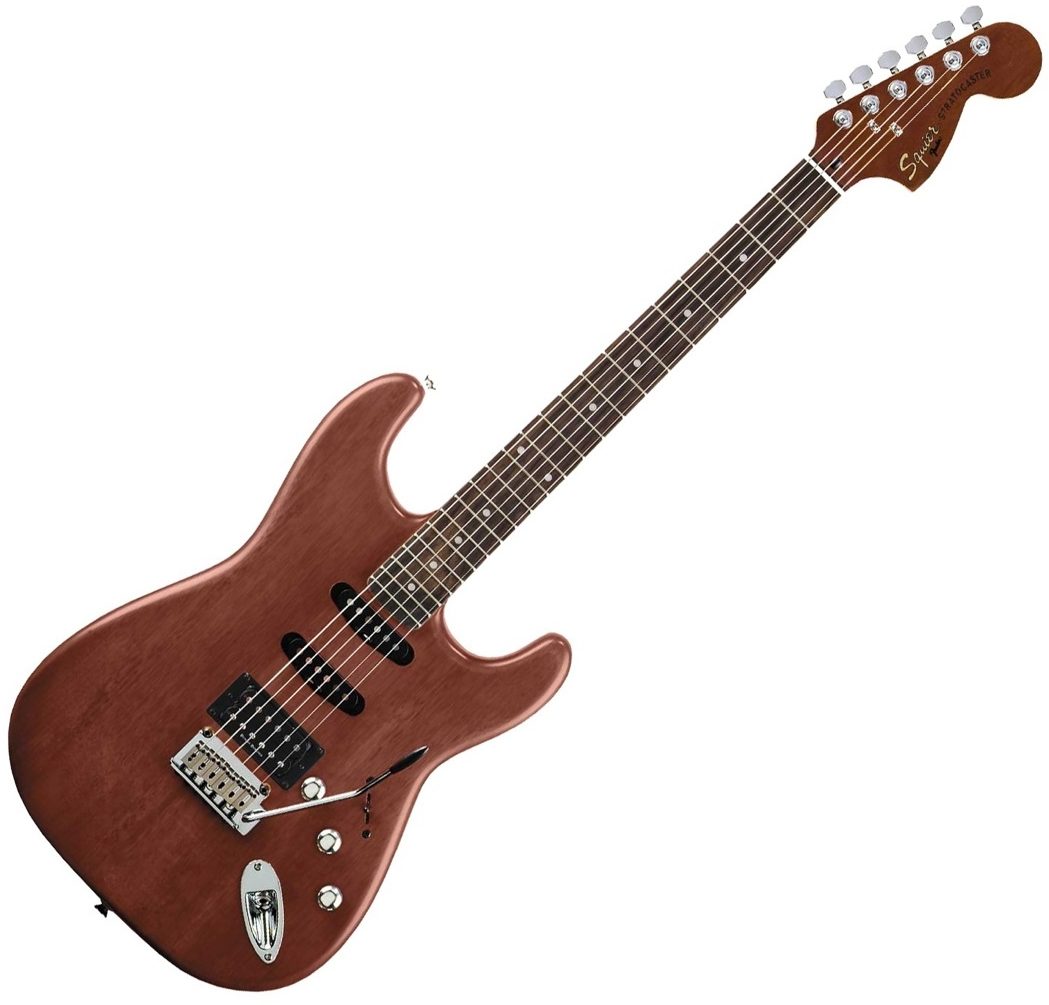

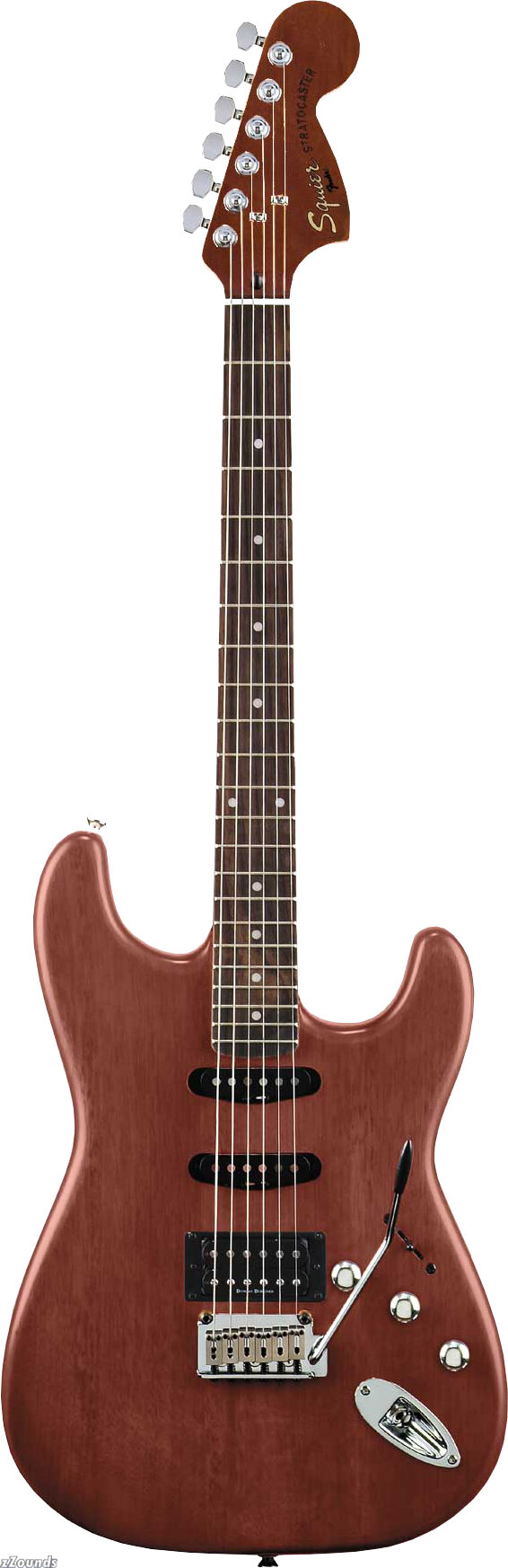

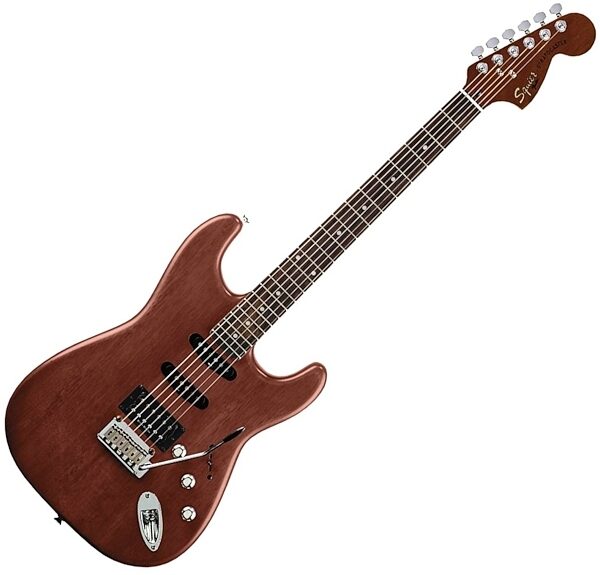

Squier Satin Trans Fat Stratocaster HSS Electric Guitar

The Satin Trans Fat Strat features a solid mahogany body, one Duncan Designed humbucking pickup (bridge) and two Alnico single-coil pickups (neck, middle).

Technical Info

Series: Deluxe Series

Body: slender profile mahogany

Neck: maple, C-shape, (polyurethane finish)

Fingerboard: rosewood, 9.5" radius (241 mm)

No. of frets: 22 medium jumbo

Pickups: 1 Duncan Designed humbucking pickup (bridge), 2 AlNiCo magnet single-coil pickups (mid/neck)

Controls: master volume, tone 1. (neck pickup), tone 2. (middle pickup)

Pickup switching: 5-position blade:
-- Position 1. bridge pickup

-- Position 2. bridge and middle pickup

-- Position 3. middle pickup

-- Position 4. middle and neck pickup

-- Position 5. neck pickup

Bridge: synchronous twin-pivot tremolo (chrome plate with satin saddles)

Machine heads: standard die-cast tuners

Hardware: chrome

Pickguard: none

Scale length: 25.5 in. (648 mm)

Width at nut: 1.6875 in. (42.86 mm)

Unique features: large '60s style headstock, black plastic parts, gold and black Squier logo, engraved neckplate, pearloid
dot position inlays, chrome bridge plate with satin chrome saddles, matching painted headstock

Strings: Fender Super 250L, (.009 to .042) Nickel Plated Steel p/n 073-0250-003

Introduced: 1/2005
