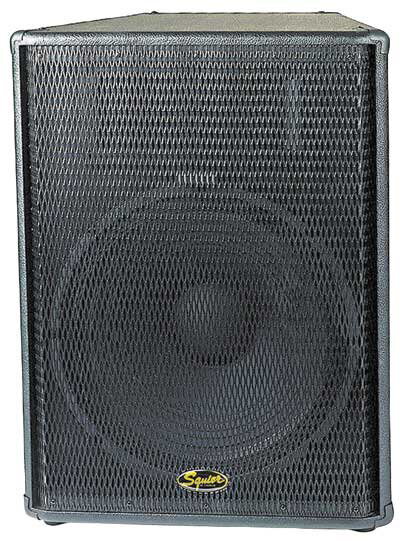

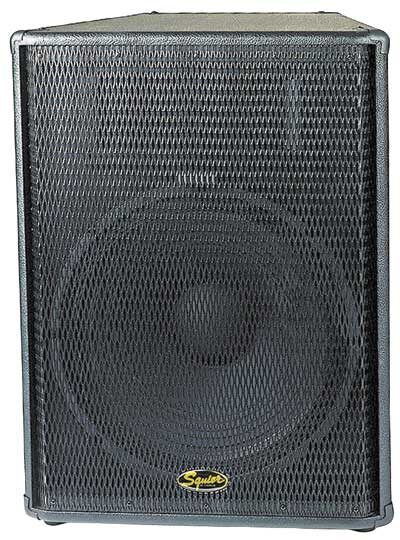

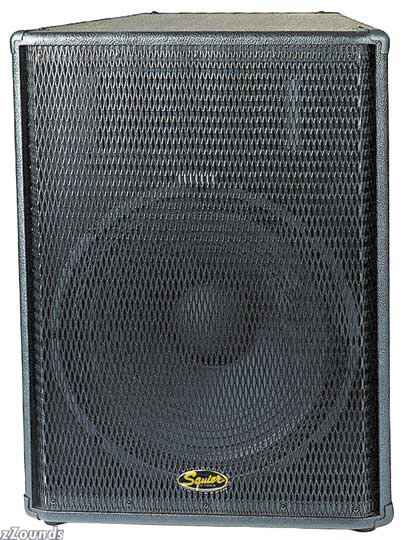

Squier SQ15 15 in. 2-Way PA Loudspeaker

This portable monitor from Squier features a 15 in., 2-way loudspeaker capable of 600 watts peak or 300 watts program power at 8 ohms.

Features
Powerful 15 in. steel frame woofer with 2.5 in. voice coil

Dual piezoelectric compression high frequency driver with 1.5 in. diaphragms

200 watts program power handling

Trapazoidal cabinet shape

Protective metal corners

Glide feet

Back mounted cup carrying handle

Expanded metal grille

1/4 in. Input jack

Adapter socket for pole mounting

Technical Info

Series: Squier Series

Dimensions (H x W x D): 23-7/8 x 18 x 15-1/4 in. (6.6 x 45.7 x 38.7 cm)

Weight: 43 lbs.

Covering: Black Vinyl

Frequency Response: 80Hz to 20kHz, +/- 6dB (Half Space)

Power Handling: 150 Watts (E.I.A. RS-426), 300 Watts (Program), 600 Watts (Peak)

Impedance: 8 ohm

Low Frequency Source: 15 in. Woofer with 2.5 in. Voice Coil

High Frequency Source: Dual 1-? in. Piezoelectric Compression Drivers

Horn Type: Proprietary Dual-throated Molded Constant Directivity Horn

Sensitivity: 98dB, 1 Watt/1 Meter

Maximum Output SPL at 1 Meter: 120dB Continuous, 126dB Peak

Horizontal Dispersion: 70 Degrees (at 5 kHz)

Vertical Dispersion: 35 Degrees (at 5 kHz)

Crossover Frequency: 3.5 kHz

Source: Mexico

Introduced: 1/2000
