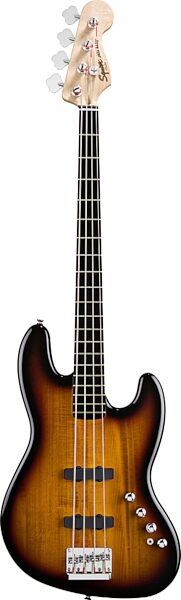

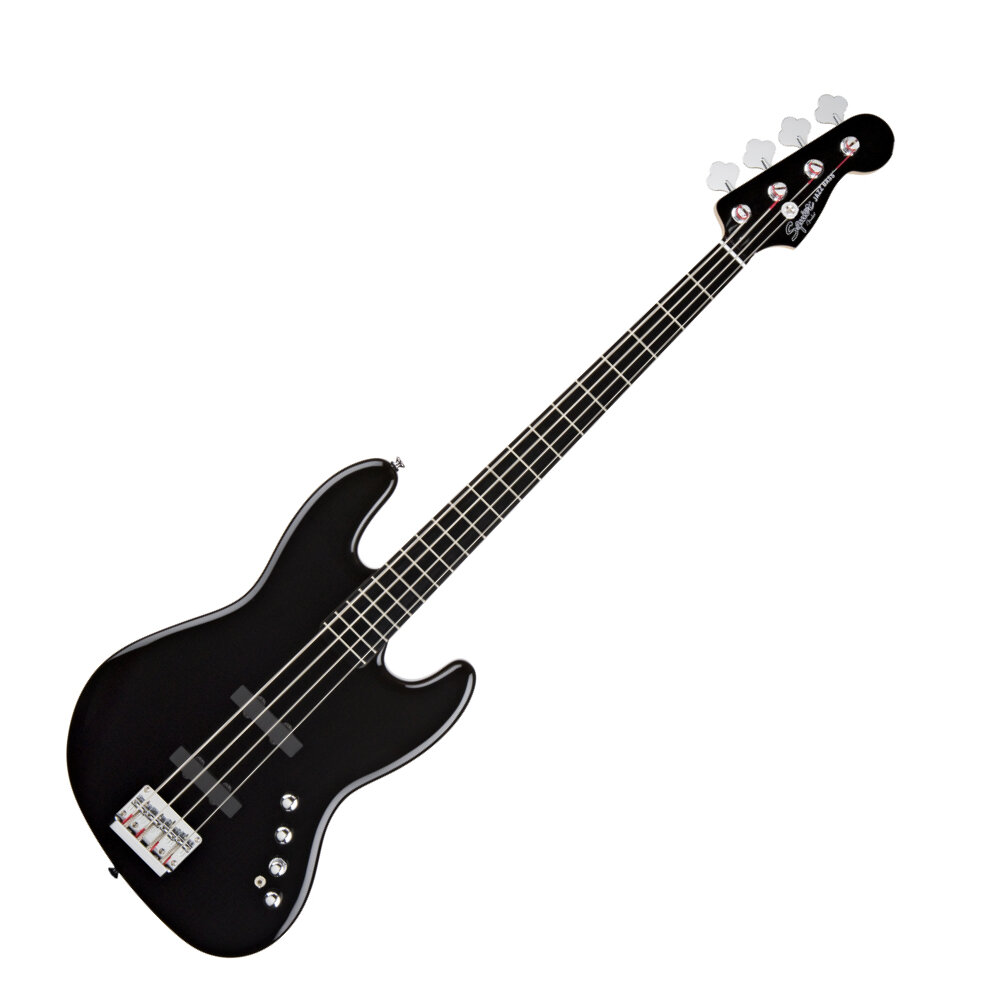

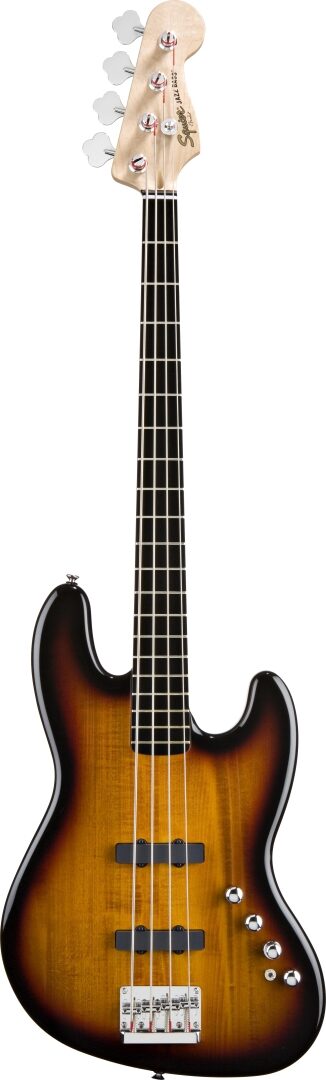

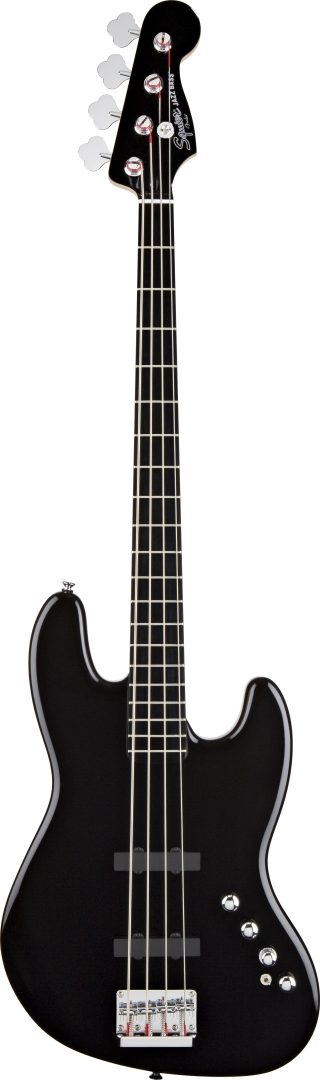

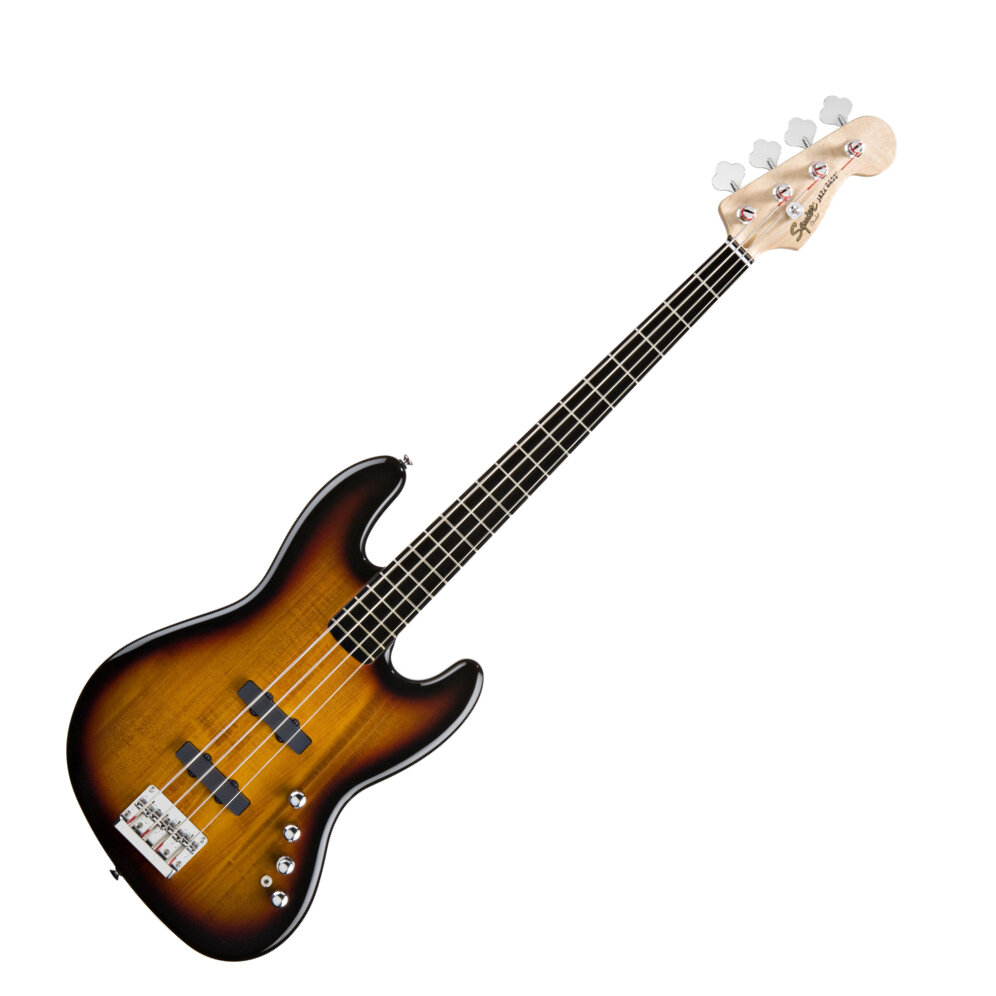

Squier Deluxe Active Jazz Electric Bass

Fender's popular Deluxe Jazz Bass V Active model is now available in a four-string version! The Deluxe Jazz Bass Active is perfect for four-string bassists who want modern active tone at an unbeatable value. Features include an active three-band EQ with "slap" switch, a one-piece maple neck with ebonol fingerboard and matching painted headstock on the Black model.

Technical Info

Specifications
Series: Deluxe Series

Colors: (500) 3-Color Sunburst, (506) Black, (Polyurethane Finish)

Body: Basswood

Neck: Maple, C-Shape, (Polyurethane Finish)

Fingerboard: Ebonol, 12-inch Radius (305 mm)

No. of Frets: 20 Medium Jumbo

Pickups: 2 Single-Coil Jazz Bass(R) Pickups (Neck & Bridge)

Controls: Master Volume, Blend, Treble/Bass (Stacked), Middle, Slap Switch

ACTIVE CIRCUIT SLAP SWITCH ON SLAP SWITCH OFF

INPUT: 1KHz 100mV

BATTERY: 9V

MAX OUTPUT (VR MAX,EQ C): 1KHz 100mV 60mV

TREBLE BOOST/CUT 10KHz: 8dB/-9dB 9dB/-9dB

MIDDLE BOOST/CUT 1KHz: 9dB/-10dB 7dB/-8dB

BASS BOOST/CUT 100Hz: 7dB/-7dB 4dB/-5dB

MINI NOISE (VR ALL MINI): 1KHz 0.5mV below 0.5mV below

MAX NOISE (VR ALL MAX) 1KHz: 3mV below 3mV below

RESPONSE: 100 Hz LOW 0dB 8dB, 1 KHz MIDDLE 0dB 0dB, 10 KHz HIGH 0dB 4dB

Pickup Switching: Blend Control

Bridge: Standard 4-Saddle

Machine Heads: Standard Open-Gear Tuners

Hardware: Chrome

Pickguard: None

Scale Length: 34 in. (864 mm)

Width at Nut: 1.50 in. (38 mm)

Unique Features: Active Electronics, Quick Release Battery Compartment, Side Dot Position Inlays, Knurled Chrome Control Knobs, Matching Painted Headstock on Black (06)

Strings: Fender Super Bass 7250ML, NPS, Gauges: (.045, .065, .080, .100), p/n 073-7250-005

Accessories: None

Introduced: 6/2009

Notice: Product Prices, Features, Specifications and Availability Are Subject To Change Without Notice
