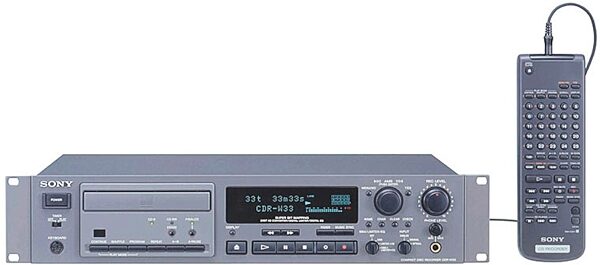

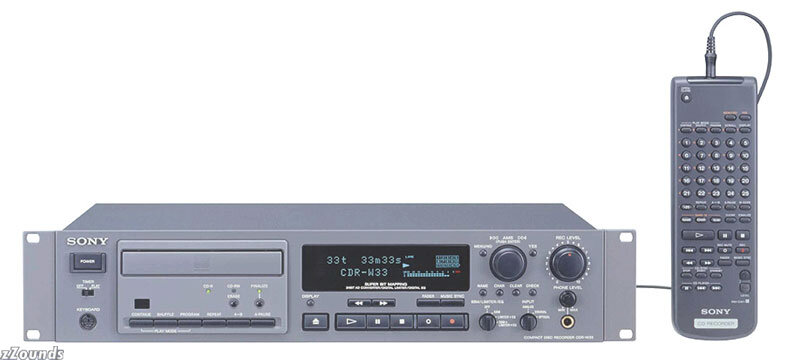

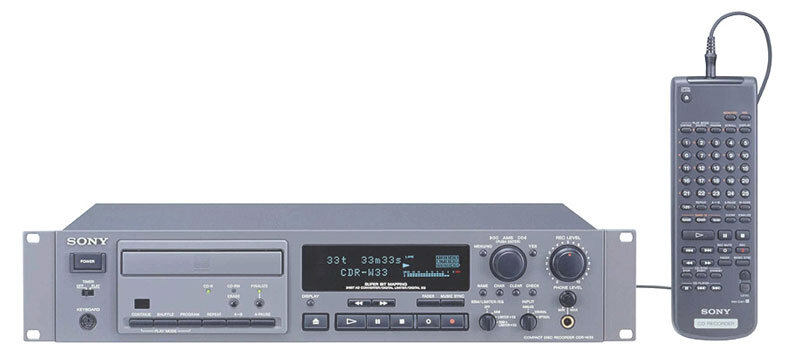

Sony CDRW33 CD Recorder with Compression and EQ

The CDR-W33 is the first CDR-W Recorder for professional music applications from Sony. It features high-quality, 24-bit AD/DA converters, DSP functions, and CD-TEXT support. The CDR-W33 targets project studios, DJ, and radio production.

PC keyboard input/CD-text support- Allows user entry of CD titles to disc via wired/wireless remote or any standard (PS/2) PC keyboard(optional). Also displays CD-text from supported CD sources

Supplied wired/wireless remote - Can be used directly with included wire for professional applications or can be used as a typical IR remote for added convenience.

24-bit A/D, D/A with 32-48k SRC 24-bit converters assure the cleanest possible input quality and SRC (Sample Rate Converter) allows recording from various digital sources.

Built-in DSP Including SBM recording, EQ, and limiter- SBM provides near 20-bit audio performance (analog inputs only) EQ (3-band sweepable plus mid-bandwidth selection) & limiter (with variable ratio) allow custom tailoring of source material to fit recording requirements

Features
Recording Media: CD-R, CD-R-DA, CD-RW, CD-RW-DA

I/Os provided: Coaxial Digital, Optical Digital, Analog Unbalanced Phono jacks.

Offers Control-S for supplied remote and PS/2 (for PC keyboard) allowing basic control and text entry.

Selectable DSP functions available on the analog inputs, including SBM (Super Bit Mapping recording-providing high quality recording and noise reduction), 3-band mid-Parametric EQ, and Limiter.

High-quality 24-bit AD/DA converters and a 32kHz - 48kHz Sampling Rate Converter.

CD-TEXT support Disc/Track name can be displayed and entered with alpha-numeric characters from AMS Controller/Remote Commander unit/PC keyboard (23 characters in each name).

2 Times FINALIZE

Fluorescent Display

Supplied Wireless/Wired Remote Commander control unit

2U rack mountable size in EIA. Standard professional 19" rack-mountable

Digital and analog record level control

Technical Info

System: CD 2-channel stereo

Sample Rate: 44.1k

Frequency Reponse: 20-20kHz (+/-.5dB)

S/N Ratio: digital -96 dB/analog -92dB

Dynamic Range: digital -98 dB/analog -92dB

Wow and Flutter: Below measurable limits

Inputs:
Analog: RCA unbalanced x2
Digital: Optical and coaxial

Outputs: RCA unbalanced x2. Optical and coaxial, Headphones

Remote interface: IR (wireless), Control-S (wired), PS/2 keyboard input

Power consumption: 15W

Operating voltage: 120VAC 60Hz

Weight: 4.6 kg (10 lbs., 3 oz.)

Dimensions (H x W x D): 88 x 482 x 290mm (3-1/2 x 19 x 10-1/2 in.)
