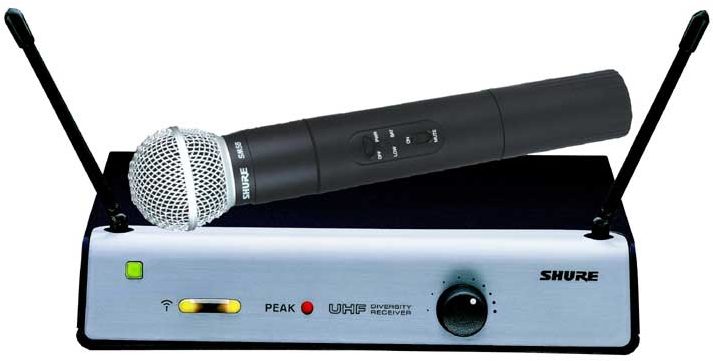

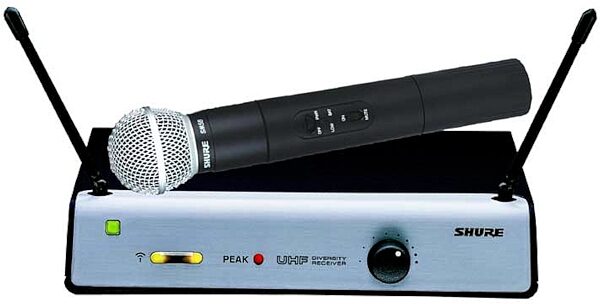

Shure UT Series Vocal Artist UHF Wireless System with SM58 Microphone Element

The Vocal Artist UHF System
If you're a vocalist who is serious about delivering energetic, great-sounding performances, The Vocal Artist UHF is the system for you.

The system comes complete with the world standard SM58. The SM58 utilizes a specially designed internal shock mount that minimizes the rumble caused by mic handling and stand vibration.

Includes
(1) UT2/58 Handheld Transmitter with SM58 Cardioid Microphone
(1) 9V Duracell(TM) Battery

(1) UT4 MARCAD Diversity Receiver
(1) Swivel Adapter

(1) PS20 Power Supply
(1) Zippered Transmitter/Accessory Bag

Finally, a high-quality UHF wireless system that's highly affordable.
From the innovative minds of Shure comes the first affordable UHF systems that are as good as their name: the UT Series UHF Wireless Systems.

For the money, you'll find no better UHF wireless system. The UT Series gives you all the freedom and flexibility of the popular T Series VHF system, now in a UHF format. So you'll get a less crowded operating band for a clear, interference-free sound.

Shure's "battery saver" technology provides up to 12 hours of battery life and operates in conjunction with 2 LED indicators; one for on/off and another to warn when battery life is low. A convenient mute switch delivers noiseless control of audio on/off functions, while Shure's noise squelch circuitry virtually eliminates noise bursts.

With a UT Series UHF Wireless System, you'll have the freedom to deliver your most professional performance every time.

Technical Info

System Includes: UT4 MARCAD Diversity Receiver, UT2/58 Handheld Transmitter with SM58 Cardioid Mircophone.

RF Carrier Frequency Range:
Approximately 596 to 862 MHz (Available frequencies depend on applicable regulations in country where system is used).

Operating Range: 100 m (approximately 300 ft) under typical conditions

Audio Frequency Response: 20 to 16,000 Hz, +/-3 dB

Image Rejection: 75 dB typical

Spurious Rejection: 75 dB typical

System Distortion (ref. +/- 45 kHz deviation, 1 kHz modulation): 0.1% THD typical

Signal/Noise Ratio: 90 dB

Sensitivity: 110 dBm for 12 dB SINAD typical

Maximum Recommended Input Level, UT1 (attenuation switch at 20 dB, gain at minimum): +32 dBV

Minimum Recommended Input Level, UT1 (attenuation switch at 0 dB, gain at maximum): ?80 dBV

Operating Temperature Range
-29 to 74 degrees C (20 to 165 degrees F) NOTE: Battery characteristics may limit this range.

Battery Life
UT2: 12 hours with 9V alkaline battery (Duracell MN1604 recommended).

UT2
RF Output: 15 mW Typical

Dimensions (H x D):
UT2/58: 241 x 51 mm (9.49 x 2.01 in.)
UT2/Beta 58: 241.3 x 36.83 mm (9.5 x 1.45 in.)

Net Weight: 296 g (10.4 oz.)

Power Requirement:
9 V alkaline battery (Duracell MN1604 recommended)
9 V lithium ULTRALIFE battery optional

Nominal Current Drain: 40 mA

UT4
Maximum Output Levels:
XLR Line Level: +10 dBV, Mic Level: 22 dBV
1/4 in.: +4 dBV

Nominal Output Levels:
XLR: Line Level: 26 dBV, Mic Level: 62 dBV
1/4 in.: 32 dBV

Output Configuration: Active Balanced Unbalanced

Actual Impedance:
XLR: Line Level: 138 Ω, Mic Level: 500 Ω
1/4 in.: 1 k

Connector Pin Assignments:
XLR: Pin 1: ground, Pin 2: hot, Pin 3: cold
1/4 in.: Tip: hot, sleeve: ground

Dimensions (H x W x D): 41 x 197 x 138 mm (1.625 x 7.77 x 5.42 in.)

Net Weight 419.6 g (14.8 oz.)

Power Requirements: 12-18 Vdc nominal, 200mA

Power Supply: 120 V or 230V AC adapter with 2.1 mm female plug

Voltage/Current/Phantom Power Protection: Yes
