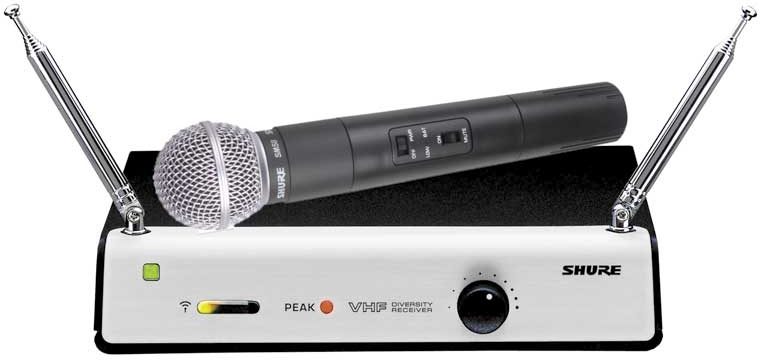

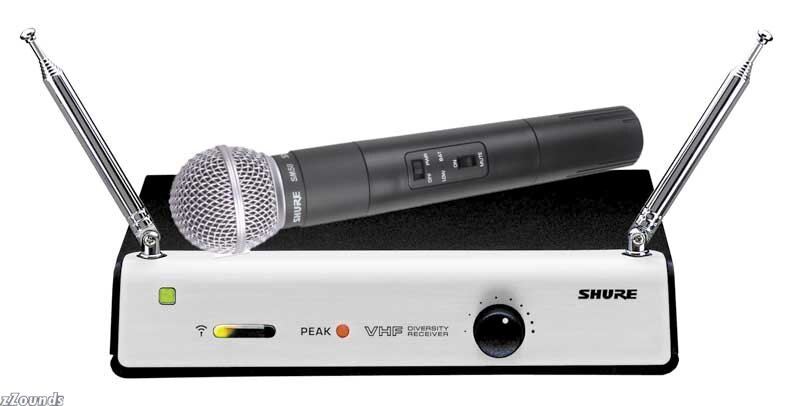

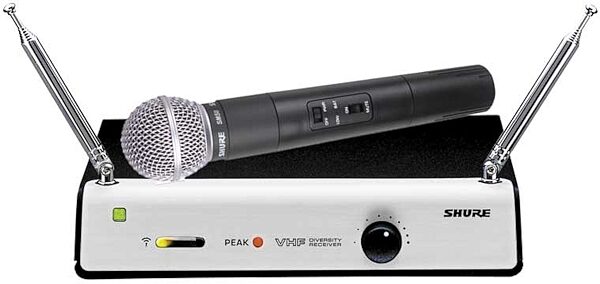

Shure Vocal Artist Wireless VHF Diversity System with SM58

The SM58 Vocal Artist Diversity System with SM58 Microphone offers Shure's true-to-life sound and reliability in a single, economical package. System includes: T4N Diversity Receiver with PS20 power supply, T2/58 Handheld Transmitter with SM58 Microphone, swivel adapter, carrying case, and 9V Duracell battery.

Features
18 hour battery life

Low battery indicators

Noise squelch circuitry

Mute switch on the transmitter

MARCAD diversity monitors and combines signals on both receivers for outstanding reception and freedom from dropouts

XLR outputs

Connecting cables and batteries are included

Dual antennae

Technical Info

System Includes: T4N Diversity Receiver, T2/58 Handheld Transmitter with SM58 Cadioid Microphone.

RF Carrier Frequency Range: 169.445 to 240.000 MHz (Available frequencies depend on applicable regulations in country where system is used).

Operating Range: 100 m (328 ft.) under typical conditions

Audio Frequency Response: 50 to 15,000 Hz, _ 3 dB

Image Rejection: 60 dB typical

Spurious Rejection: > 60 dB typical

System Distortion (ref. _ 15 kHz deviation, 1 kHz modula-tion): 0.1% THD typical

Signal/Noise Ratio: 101 dB

Sensitivity: -109 dBm for 12 dB SINAD typical

Battery Life: 18 hours with 9 V alkaline battery (Duracell MN1604 recommended).

T1, T1G, and T11 Bodypack Transmitter Specifications
RF Output: 50 mW typical (T1, T1G); 20 mW typical (T11)

Input Configuration: Unbalanced

Connector Type: 1/4 in. (T1G); 4-pin Tini Q-G (male) (T1)

Maximum Recommended Input Level*: +3 dBV

Minimum Recommended Input Level**: ?80 dBV

Connector Pin Assignments (T1, T11):
Pin 1: Tied to Ground
Pin 2: Tied to +5 V
Pin 3: Tied to Audio

Connector Pin Assignments (T1G):
Sleeve: Tied to Ground
Tip: Tied to Audio

Dimensions, T1 and T1G (H x W x D): 64 x 106 x 24 mm (2.52 x 4.17 x .94 in.)

Dimensions, T11 (H x W x D): 83 x 64 x 26 mm (3.27 x 2.5 x 1.03 in.)

Net Weight (T1,T1G): 96.4 g (3.4 oz.)

Net Weight (T11): 79.4 g (2.8 oz.)

Power Requirements: 9 V alkaline battery (Duracell MN1604 recommended); 8.4 V NiCd battery optional.

Nominal Current Drain: 30 mA

* Gain Control at minimum

** Gain Control at maximum

T2 Handheld Transmitter Specifications
T2/58: (SM58); T2/3: 1(BG3.1)

RF Output: 50 mW Typical (FCC); 20 mW Typical (ETSI)

Dimensions: Height 236 mm (9.29") x Depth 51 mm (2.01")

Height 222 mm (8.74") x Depth 51mm (2.01")

Net Weight: 295 g (10.4 oz.) 266 g (9.4 oz.)

Power Requirement: 9 V alkaline battery (Duracell MN1604 recom-mended); 8.4 V NiCd battery optional.

Nominal Current Drain: 30 mA 30 mA

T3 and T4N Receiver Specifications
Connector: 3-Pin XLR (Male) and 1/4" Phone Jack

Maximum Output Levels: 1/4": +5 dBV; XLR: +10 dBV; 6.8 dBV

Nominal Output Levels: 1/4": 8 dBV; XLR: 30 dBV; 32 dBV

Output Configuration: Active Balanced Unbalanced

Connector Pin Assignments: XLR: Pin 1: ground; Pin 2: hot; Pin 3: cold 1/4": Tip: hot; Sleeve: ground. Tip: hot; Sleeve: ground

Dimensions, T4N (H x W x D): 41 x 197 x 138 mm (1.625 x 7.77 x 5.42 in.)

Dimensions, T3 (H x W x D): 35 x 152 x 98 mm (1.38 x 5.98 x 3.85 in.)

Net Weight (T4N): 435 g (15.4 oz.)

Net Weight (T3): 192 g (6.8 oz.)

Power Requirements: 12-18 VDC nominal, 200mA

Power Supply: 120 V or 230V AC adapter with 2.1 mm female plug

Voltage/Current/Phantom Power Protection: Yes
