Shure Presenter Lavalier VHF Wireless Diversity System

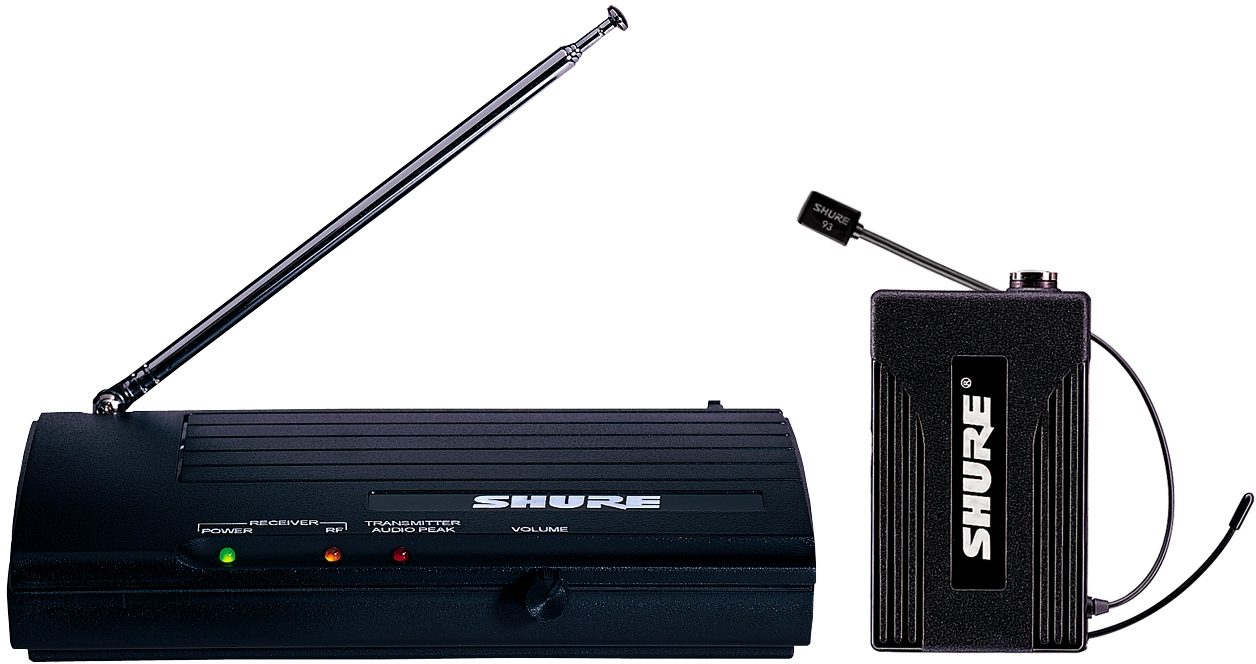

A compact, reliable package that comes through loud and clear in almost any application. Features WL93 low-profile, micro-miniature lavalier microphone that delivers crisp, clear sound. Other components include the T4N receiver and the T1 body-pack transmitter. Features dual antennae.

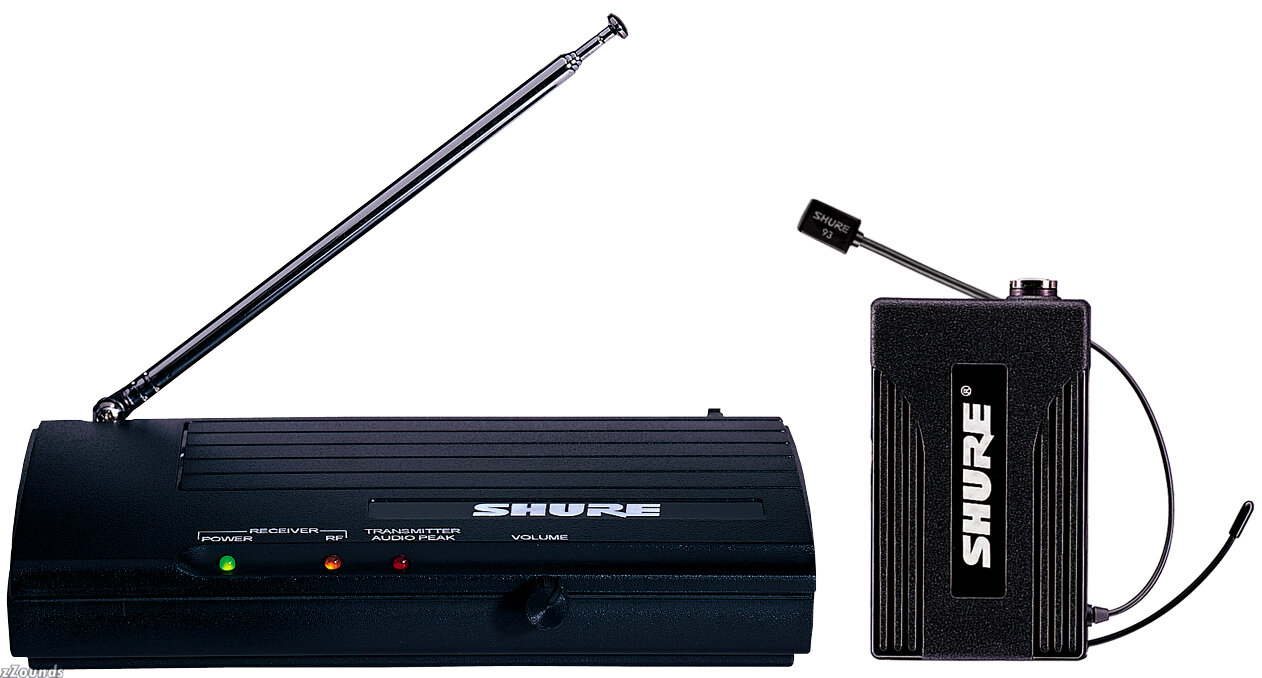

System Includes: T4N Diversity Receiver, T1 Bodypack Transmitter, Wl93 Omnidirectional Micro-Lavalier Microphone.

Technical Info

System Includes: T4N Diversity Receiver, T1 Bodypack Transmitter, Wl93 Omnidirectional Micro-Lavalier Microphone.

RF Carrier Frequency Range: 169.445 to 240.000 MHz (Available frequencies depend on applicable regulations in country where system is used).

Operating Range: 100 m (328 ft.) under typical conditions

Audio Frequency Response: 50 to 15,000 Hz, _ 3 dB

Image Rejection: 60 dB typical

Spurious Rejection: > 60 dB typical

System Distortion (ref. _ 15 kHz deviation, 1 kHz modula-tion): 0.1% THD typical

Signal/Noise Ratio: 101 dB

Sensitivity: -109 dBm for 12 dB SINAD typical

Battery Life: 18 hours with 9 V alkaline battery (Duracell MN1604 recommended).

T1
RF Output: 50 mW typical (T1, T1G); 20 mW typical (T11)

Input Configuration: Unbalanced

Connector Type: 1/4 in. (T1G); 4-pin Tini Q-G (male) (T1)

Maximum Recommended Input Level*: +3 dBV

Minimum Recommended Input Level**: 80 dBV

Connector Pin Assignments (T1, T11):
Pin 1: Tied to Ground
Pin 2: Tied to +5 V
Pin 3: Tied to Audio

Connector Pin Assignments (T1G):
Sleeve: Tied to Ground
Tip: Tied to Audio

Dimensions, T1 H x W x D: 64 x 106 x 24 mm (2.52 x 4.17 x .94 in.)

Net Weight (T1): 96.4 g (3.4 oz.)

Power Requirements: 9 V alkaline battery (Duracell MN1604 recommended); 8.4 V NiCd battery optional.

Nominal Current Drain: 30 mA

* Gain Control at minimum

** Gain Control at maximum

T4N Receiver Specifications
Connector: 3-Pin XLR (Male) and 1/4" Phone Jack

Maximum Output Levels: 1/4": +5 dBV; XLR: 10 dBV; 6.8 dBV

Nominal Output Levels: 1/4": 8 dBV; XLR: 30 dBV; 32 dBV

Output Configuration: Active Balanced Unbalanced

Connector Pin Assignments: XLR: Pin 1: ground; Pin 2: hot; Pin 3: cold 1/4": Tip: hot; Sleeve: ground. Tip: hot; Sleeve: ground

Dimensions, T4N (H x W x D): 41 x 197 x 138 mm (1.625 x 7.77 x 5.42 in.)

Net Weight (T4N): 435 g (15.4 oz.)

Power Requirements: 12?18 VDC nominal, 200mA

Power Supply: 120 V or 230V AC adapter with 2.1 mm female plug

Voltage/Current/Phantom Power Protection: Yes
