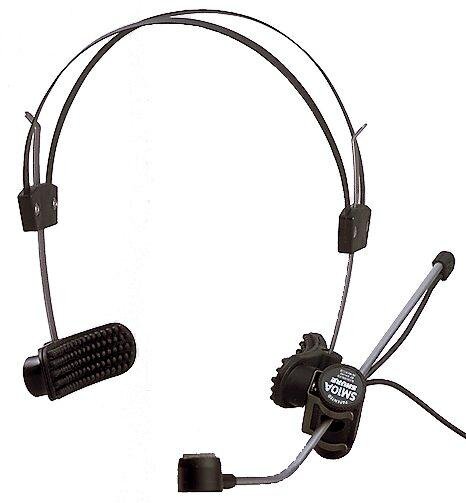

Shure SM10ACN Headworn Cardioid Dynamic Microphone

A headworn microphone for vocal performers, the SM10A is a favorite of singing drummers and keyboardists who need freedom of movement on stage.

Features
Close-talk design provides excellent isolation and minimizes gain-before-feedback.

Extremely rugged with fully adjustable headband and microphone boom.

Cardioid dynamic

Frequency response: 50 to 15,000 Hz

About Shure
S.N. Shure began his company's relationship with the products of personal sound by launching a one-man operation in 1925 that sold radio parts kits. Since then, Shure microphones and audio electronics have been the tools of choice for politicians, musicians, corporations, churches, and broadcasters across the world. Anyone who considers sound to be an important part of his or her self-expression has probably used one of Shure's microphones, phonograph needles, or other professional audio products.

Technical Info

Type: Dynamic, close-talk

Frequency Response (at 8mm [5/16 in.]): 50 to 15,000 Hz (see Figure 2)

Polar Pattern: Cardioid, uniform with frequency, symmetrical about axis

lmpedance: Rated at 150 W (223 W actual)

Sensitivity: 1,000 Hz at 8mm (5/16 in.)

Open Circuit Voltage: -65.0 dBV/Pa* (0.45 mV)
*1 Pa = 94 dB SPL

Hum Sensitivity (typical): 35.5 dB equivalent SPL in a 1 mOe field

Polarity: Positive pressure on diaphragm produces positive voltage
on pin 2 of microphone connector

Connector: Professional 3-pin male XLR audio connector

Cable: Non-detachable, 1.5 m (5 ft.), 2-conductor, shielded, plastic-jacketed

Case: Black thermoplastic microphone and pivot housing, anodized aluminum end caps, stainless steel grille, and boom

Net Weight: 78 g (2.7 oz.), less cable and connector

Packaged Weight: 950 g (2 lbs., 1-1/2 oz.)

This headset microphone combines hands-free movement and legendary Shure quality. Cardioid pickup pattern with uniform frequency response. Fully adjustable headband with mic boom. Stainless steel grille. Non-detachable 5' cable. Does not require phantom power.
