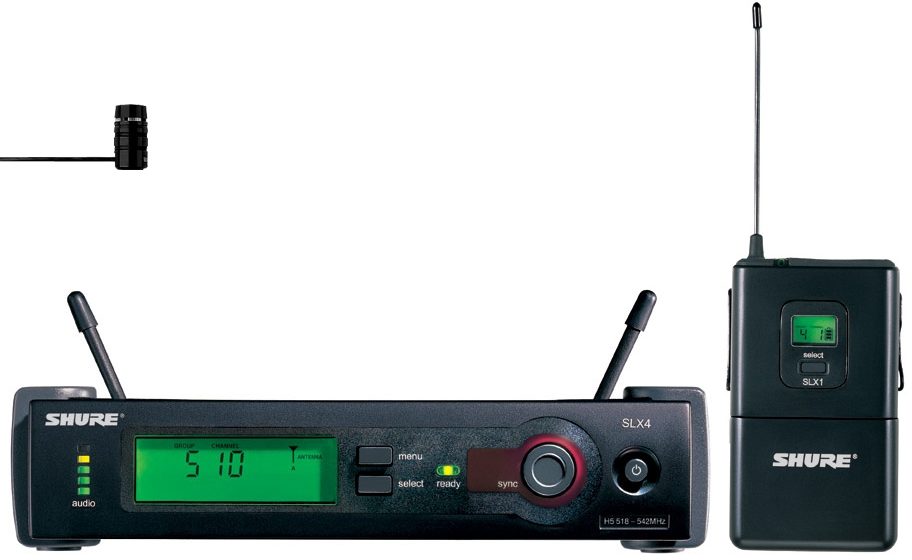

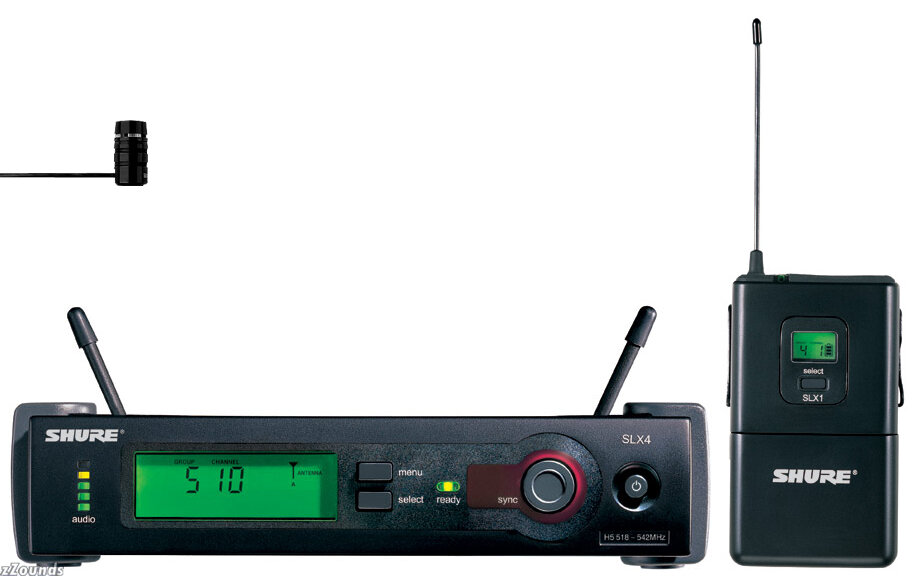

Shure SLX14/85 UHF Unidirectional Lavalier Wireless System

Manufacturer's Description for Shure SLX14/85 UHF Unidirectional Lavalier Wireless System

Sound installations and working bands need powerful wireless tools that can be set up quickly and used confidently. Shure's rugged SLX UHF Wireless Systems exceed these demands with innovative automatic setup features, such as auto frequency scan and transmitter setup, exceptional wireless clarity, and legendary Shure microphones. Supporting 20 compatible systems across multiple UHF frequency bands, SLX smoothly integrates into houses of worship, lecture halls, conference rooms, and mobile gear cases.

SLX Wireless Systems feature Shure's patented Audio Reference Companding for crystal-clear sound beyond the limits of conventional wireless technology.

SLX4 Receiver

The SLX4 receiver brings unprecedented ease of use to wireless with Automatic Frequency Selection and Automatic Transmitter Setup. With included rack hardware and detachable antennas, it is ready for immediate installation right out of the box.

SLX4 Features

- Automatic Frequency Selection
- Automatic Transmitter Setup
- 960 Selectable frequencies across 24 MHz bandwidth
- Detachable 1/4 wave antennas
- Microprocessor-controlled diversity
- RF presence LED
- 5-segment audio meter
- Multi-function, backlit LCD
- Low battery indicator
- Frequency and power lockout
- Rugged metal chassis
- Volume control on rear of unit
- 1/2 rack design
- Furnished rack hardware
- Non-slip bumpers for use out of rack
- XLR and 1/4 in. outputs

SLX1 Features

- Automatic Transmitter Setup
- Backlit LCD with timeout feature
- Frequency and power lockout
- 3-segment battery fuel gauge
- 2 AA batteries (included) provide 8 hours of continuous use
- 518 - 782 MHz operating range

WL185 Lavalier Microphone

The WL185 is a lavalier electret condenser microphones designed for use with a wireless body-pack transmitter. Each microphone has a 1.2 meter (4 ft.) cable terminated with a miniature 4-pin mini connector. The furnished tie clip can be rotated in 90 degree intervals for placement flexibility.

The cardioid WL185 is recommended for general purpose sound reinforcement applications requiring good rejection of ambient noise. Use of windscreen highly recommended. Pickup angle is 130 degrees.

Consumer Alert
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure. zZounds is an authorized dealer of Shure products.

Channel Frequencies
Channel H5: 518 to 542 MHz
Channel J3: 572 to 596 MHz
Channel L4: 638 to 662 MHz

Dimensions and Weight in Packaging

Channel J3

Shipping Weight: 8 lbs

Shipping Dimensions: 19 x 15 x 4 in

Channel H5

Shipping Weight: 8 lbs

Shipping Dimensions: 19 x 15 x 4 in

Channel J3, with Gator GM1W Bag

Shipping Weight: 10 lbs

Channel H5, with Gator GM1W Bag

Shipping Weight: 10 lbs
