This product is no longer available at zZounds.
Shop our website for related products:

(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

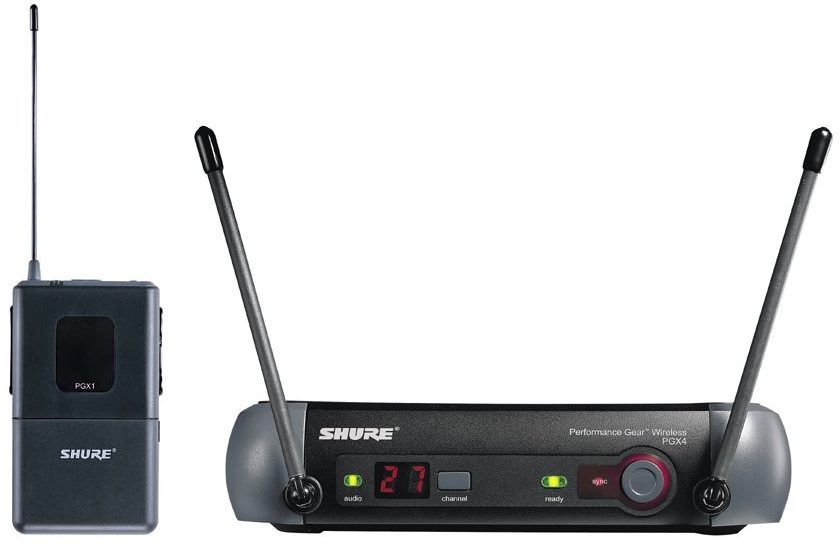

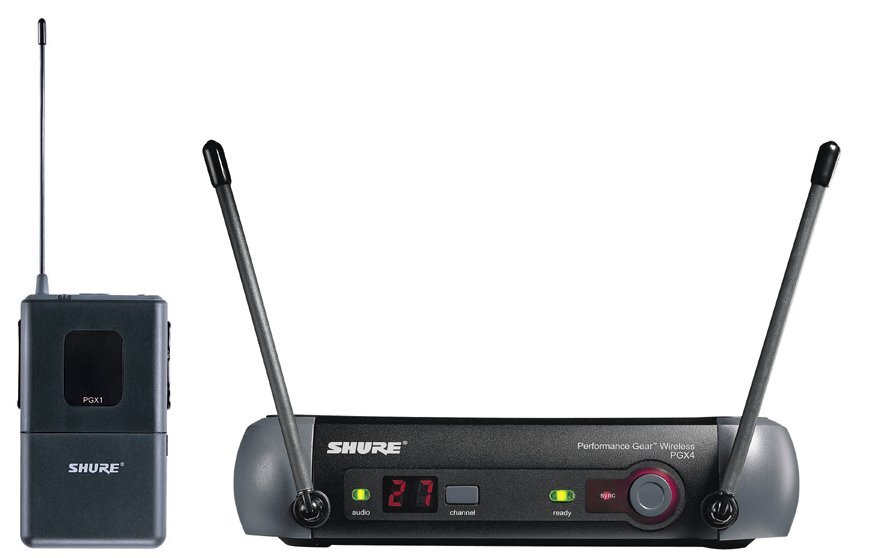

Shure PGX14 UHF Bodypack Wireless System

The Shure PGCX14 UHF is a frequency-agile system featuring automatic frequency selection. Up to nine PGX systems can be used together at the same time. (23) Read 2 reviews for this product | Rate and Review This Product
close [x]
zZounds.com 800-ZZOUNDS (800-996-8637)
Click to Enlarge Main

Product Description

Created for active musicians and presenters who also manage their own sound, Shure PGX Wireless improves your performance and simplifies your setup. Innovations such as automatic frequency selection and automatic transmitter setup make wireless quicker and completely worry-free. PGX systems now feature Shure's patented Audio Reference Companding, delivering the crystal clear sound quality that pro audio engineers trust. It's the best-sounding, simplest choice in wireless, from the leader in live performance sound.

PGX1 Bodypack Transmitter

Designed to meet the needs of traveling performers, Shure's PGX1 can be used with headworn, lavalier, or instrument microphones, or with guitars or basses.

PGX1 Features

- Audio Reference Companding: crystal-clear sound beyond the limits of conventional wireless technology.
- Automatic Transmitter Setup
- Multi-function LED Indicator (power, lockout, mute, low battery)
- 10db pad
- 2 AA batteries provide 8 hours of continuous use
- 18 MHz operating range

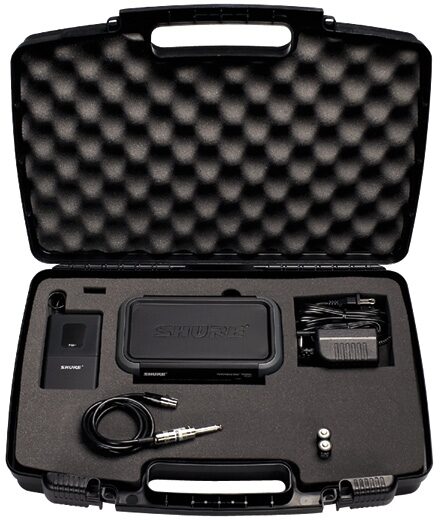

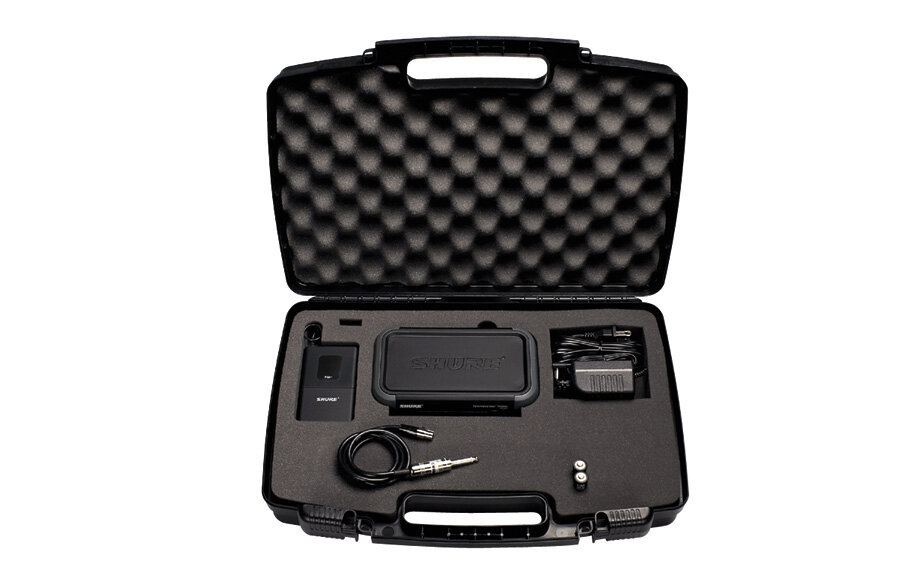

System Includes:

- Shure PGX4 receiver
- PGX1 Beltpack Transmitter
- (2) AA batteries
- Power supply

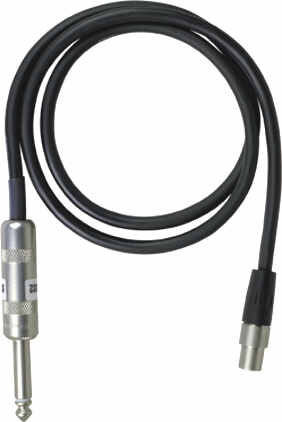

- 1/4 in. Instrument cable for connection to PGX1 transmitter
- User guide

Optional Accessories

- Zipper Bag (PGX1): model #26A13
- Universal Rack Tray: model #URT

Consumer Alert
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure. zZounds is an authorized dealer of Shure products.
- Channel Frequencies:
Channel H6: 524.000 to 542.000 MHz
Channel J6: 572.250 to 589.875 MHz
Channel L5: 644.000 to 662.000 MHz
- System Working Range: 100 m (300 ft.) Note: actual range depends on RF signal absorption, reflection, and interference
- Audio Frequency Response (+/- 2 dB):
Minimum: 45 Hz
Maximum: 15 kHz
(Overall system frequency depends on microphone element.)

- Total Harmonic Distortion (Ref. +/- 33 kHz deviation, 1 kHz tone): 0.5 %, typical
- Dynamic Range: >100 dB A-weighted
- Operating Temperature Range: 18 degrees C (0 degrees F) to 50 degrees C (122 degrees F) Note: battery characteristics may limit this range
- Transmitter Audio Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance 1/4-inch output.

PGX4 Receiver
- Dimensions: 40 mm H x 181 mm W x 104 mm D (1.6" x 7.125" x 4.1")
- Weight: 327 g (11.5 oz.)
- Housing: ABS
- Audio Output Level (Ref. +/- 33 kHz deviation with 1 kHz tone):
XLR connector (into 600 & load): 19 dBV
1/4 inch connector (into 3000 & load): 5 dBV

- Output Impedance:
XLR connector: 200 Ohms
1/4 inch connector: 1kOhm

- XLR output:
Impedance balanced
Pin 1: Ground (cable shield)
Pin 2: Audio
Pin 3: No Audio

- Sensitivity: 105 dBm for 12 dB SINAD, typical
- Image Rejection: >70 dB, typical
- Power Requirements: 12-18 Vdc at 150 mA, supplied by external power supply

PGX1 Bodypack Transmitter
- Audio Input Level:
-10 dBV maximum at "mic" gain position
+10 dBV maximum at 0dB gain position
+20 dBV maximum at -10dB gain position

- Gain Adjustment Range: 30 dB
- Input Impedance 1 MOhm
- RF Transmitter Output: 30 mW maximum (dependent on applicable country regulations)
- Dimensions: 108 mm H x 64 mm W x 19 mm D (4.25" x 2.50" x 0.75")
- Weight: 81 grams (3 oz.) without batteries
- Housing: Molded polycarbonate case
- Power Requirements: 2 AA-size alkaline or rechargeable batteries
- Battery Life: >8 hours (w/ alkaline batteries)
Shure Warranty If you have additional warranty questions, please contact the manufacturer at 800-25-SHURE
Our extended 45-Day 100% Satisfaction Guarantee applies on this product. Buy it, and if it isn't just right for you, return it!
