Shure PG24/PG58 Wireless Vocal System

Performance Gear Wireless
A comprehensive first step into professional wireless, Performance Gear Wireless Systems are engineered to the same uncompromising quality standards as PGX, SLX, ULX and UHF-R wireless. Marrying superior sound quality and stage-proven endurance with advanced features like Internal Antenna Diversity and frequency selectability, Performance Gear Wireless fulfills the promise of independent, confident performance in freedom from the wire.

Features:
Reliable wireless performance

Up to 8 compatible systems (across multiple bands)

Shure's patented Predictive Diversity ensures continuous reception

Confident, portable setup

Internal Antenna

First in the industry

Internal 1/4 wave antennas minimize poor positioning and breakage

Durable construction

Superior sound quality

Variable companding ratio for clear sound

80 years of microphone expertise

PG4 Receiver
Internal Antenna Diversity

Up to 10 selectable channels

8 compatible systems (multiple bands vary per country)

1/4 in. and XLR output

PG2 Handheld Transmitter
Power, mute and battery status LED

Power and mute switch

9V battery (included) provides 8 hours of battery life

75m (250 ft.) operating range

Technical Info

System
Working Range: 75m (250 ft.) Note: actual range depends on RF signal absorption, reflection, and interference.

Audio Channel Response: Minimum: 45 Hz. Maximum: 15 kHz (overall system channel depends on microphone element).

Total Harmonic Distortion: 0.5%, typical Ref. +/- 33 kHz deviation, 1 kHz tone

Dynamic Range: >100 dB A-weighted, typical

Operating Temperature Range: -18C (0F) to +57C (+135F) Note: battery characteristics may limit this range

Transmitter Audio Polarity: Positive pressure on microphone diaphragm (or positive voltage to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance 1/4-inch output.

PG2 Handheld Transmitter
Audio Input Level: +2 dBV maximum at -10dB position -8 dBV maximum at 0dB position

Gain Adjustment Range: 10dB

RF Transmitter Output: 10 mW typical (dependent on applicable country regulations)

Dimensions: 223.52 L x 53.34 Dia. (8.8 in. x 2.10 in.)

Weight: 218 grams (7.7 oz.) without battery

Housing: Molded ABS handle and battery cup

Power Requirements: One 9V alkaline or rechargeable battery

Battery Life: >8 hours (alkaline)

Rebates

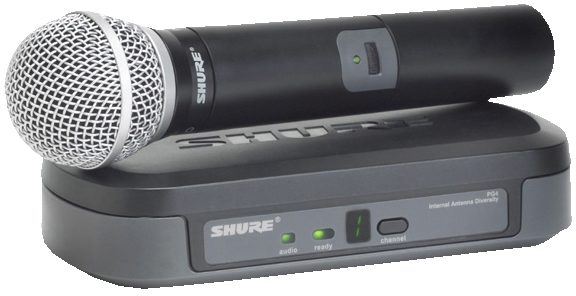

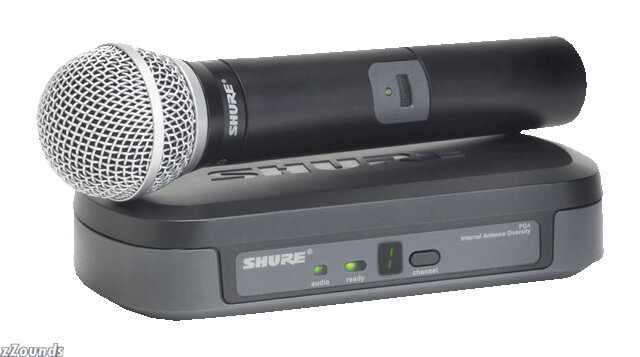

PG4 diversity receiver and PG2/PG58 handheld mic transmitter.
