Shure Beta 98S Miniature Supercardioid Microphone

The Shure BETA 98/S is a compact, high-output, supercardioid condenser microphone for professional sound reinforcement and studio recording. Its extremely uniform supercardioid pickup pattern provides high gain before feedback and excellent rejection of unwanted noise. Its high maximum sound pressure level (SPL) makes it useful for a variety of acoustic instruments, including drums, percussion, piano, reed, wind, and string instruments. The BETA 98/S can also be used for amplified guitars.

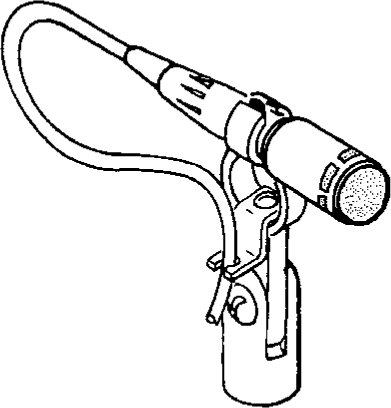

The BETA 98/S includes a shockmount swivel adapter (BETA 98/S). The BETA 98/S is supplied with a windscreen, storage bag, preamplifier, and an interconnect cable. The preamplifier can be powered by any 48 Vdc phantom power supply.

Features
Tailored frequency response for studio-quality performance

Wide dynamic range for use in high SPL environments

Uniform supercardioid pattern for high gain before feedback and superior rejection of off-axis sound

Optional A98D drum mount is unobtrusive and versatile - allows precise positioning of the microphone while holding it firmly in place

Compact design reduces stage clutter

Detachable cable for easy storage

Interchangeable microphone cartridges with different polar patterns are available

Legendary Shure quality, ruggedness, and reliability

Technical Info

Type: Condenser (electret bias)

Frequency Response: 20 to 20,000 Hz (measured at 304.8 mm [1 ft] from a spherical sound source, free field conditions)

Output Level (at 1,000 Hz):
Open Circuit Voltage: '59 dBV/Pa* (1 mV) typical
*1 Pa = 94 dB SPL

Maximum SPL: (20 Hz to 20 kHz, less than 1% THD)
2.5 kW load 160 dB
1 kW load 156 dB

Preamplifier Output Clipping Level: (20 Hz to 20 kHz, less than 1% THD)
2.5 kW load + 6 dBV (2.0 V)
1 kW load + 2 dBV (1.26 V)

Dynamic Range (at 20 Hz to 20 kHz, less than 1% THD, 2.5 kW load): 125 dB (max SPL minus A-weighted noise)

Polar Pattern: Supercardioid (as supplied), uniform with frequency, symmetrical about axis. Cartridge for cardioid polar pattern also available.

Output Noise: 35 dB SPL, A-weighted
Signal-to-Noise Ratio:
59 dB re 94 dB SPL

Output Impedance: Rated at 150 W (actual)

Recommended minimum load impedance: 1 kW

Hum Pickup: 7.5 dB equivalent SPL in 1 mOe field (60Hz)

Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3

Phantom Power: 48 Vdc +/-4 Vdc(IEC-268-15/DIN 45 596), positive pins 2 and 3

Cable: BETA 98/S: 7.6 m (25 ft) lightweight, 2-conductor shielded, TA4F to TA3F Tini Q-G ) connectors

Microphone: Matte Black enamel brass case and stainless steel inner grille

Preamplifier: Matte black enamel finished steel

Dimensions:
Microphone: 11.7 x 135.5 mm (0.46 x 1.40 in.)
Preamplifier: 20 x 99 mm (0.79 x 3.89 in.)

Net Weight:
Microphone: 12 g (0.4 oz.) less cable
Preamplifier: 96 g (3.4 oz.)
