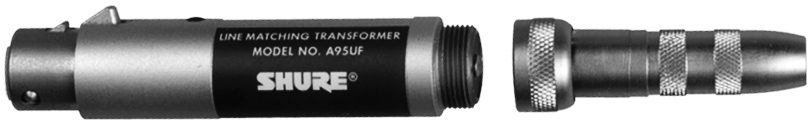

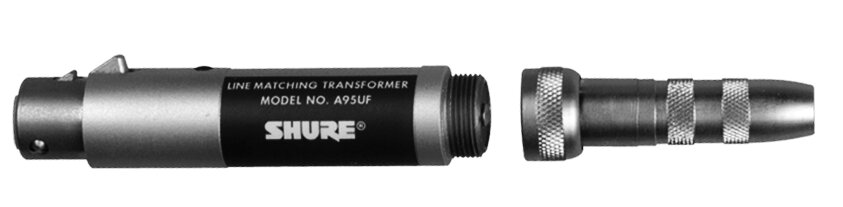

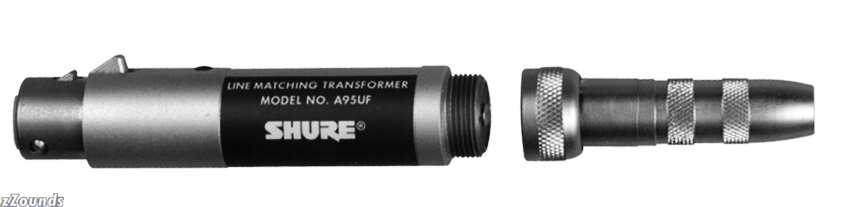

Shure A95UF Transformer

This reversible transformer matches low- or high-impedance microphones to high- or low-impedance inputs. The transformer permits use of very long microphone cables with either low- or high-impedance microphones. However, when connecting a high-impedance microphone, limit the cable length between the microphone and the transformer to 4.6 m (15 ft). The cable from the transformer to the low-impedance input can be any desired length.

The transformer prevents high-frequency loss, level loss, and pickup of noise and hum. The A95U comes furnished with a three-pin XLR connector on the low-impedance end, with a 1/4 in. phone plug and phone jack adapter on the high-impedance end.

Technical Info

Case: Full magnetic shield, steel with gray enamel finish

Frequency Response: Flat, 20 Hz to 20 kHz. Response at 20 Hz no more than 3 dB down from flat.

Low impedance: 75 to 300 Ohms (supplied) or 19 to 75 Ohms

Medium impedance: High (41 kOhms with 150-ohms source on 75-to-300 ohms winding.)

DC Resistance:
Low impedance:
75 to 300 ohms
