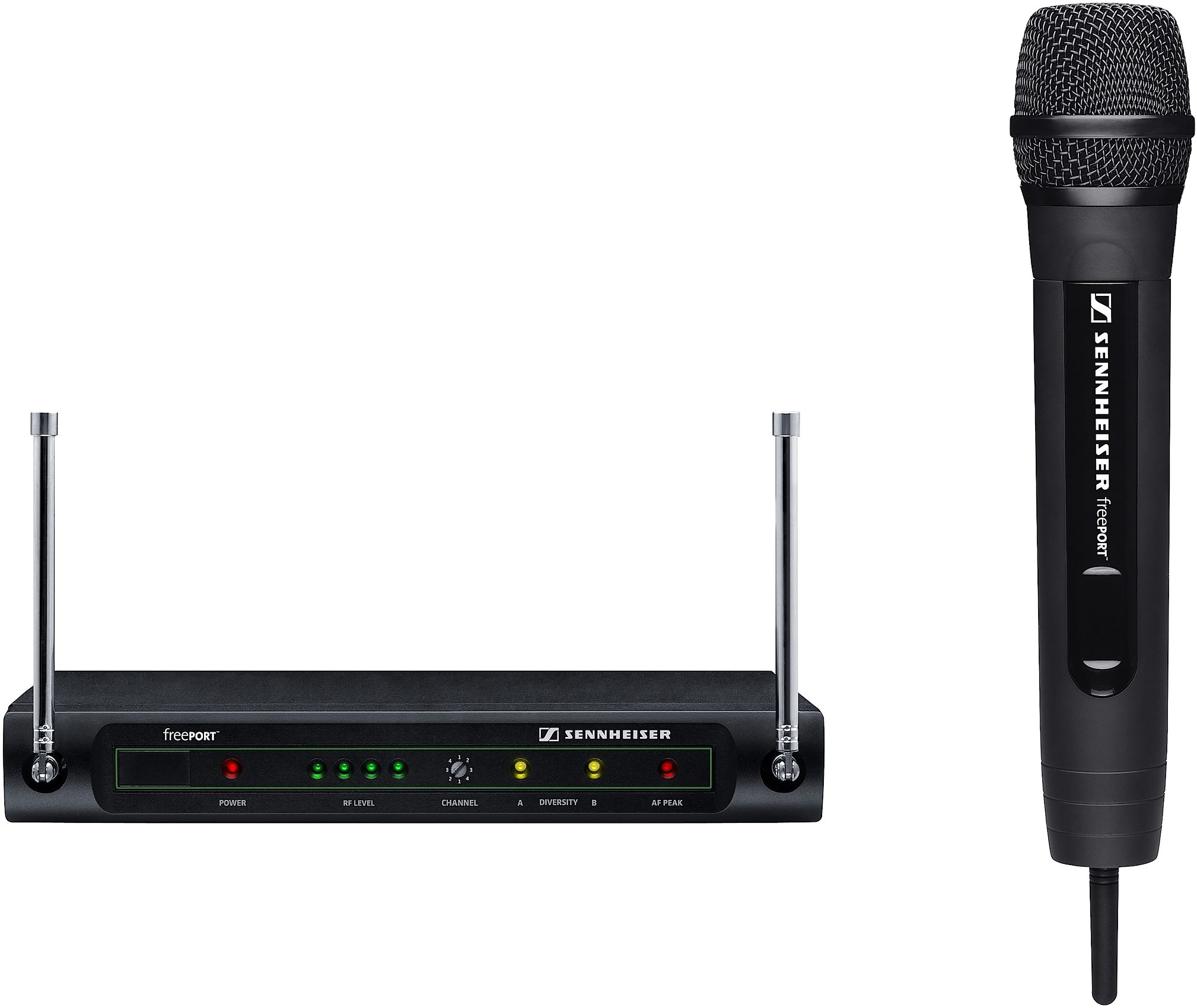

The Vocal Set includes a hand-held transmitter with a dynamic capsule, cardioid and a diversity receiver. The transmitter is exceptionally comfortable to hold and provides a lively and assertive sound.
Features:
4 switchable UHF frequencies for interference-free reception
Absolutely safe transmission
Diversity Technology for highest reception quality
Adjustable Squelch for undisturbed operation
Receivers built in robust metal housing
Dynamic processor for crystal-clear sound
Includes:
1 handheld transmitter SKM 1
1 diversity receiver EM 1
1 stand adapter
1 power supply
1 user manual
Technical Info
RF Frequency Range: UHF
Transmission/Receiving Frequencies: 4
Switching Bandwidth: 2 MHz
Frequency Response: 80-16.000 Hz
Signal-to-Noise Ratio: 95 dB(A)
THD, Total Harmonic Distortion: < 1%
Audio Output Level (Balanced): XLR, +16 dBu
Audio Output Level (Unbalanced): Jack, +10 dBu
Power Supply: 12 VDC nom
Dimensions (Receiver): 35 x 213 x 98 mm
Weight (Receiver): 570g
RF Output Power: 10 mW
Operating Time: 10 h
Power Supply (Handheld Transmitter): 9V PP3
Dimensions (Handheld Transmitter): 285mm, d=35/50 mm
Weight (Handheld Transmitter): 210 g w/o battery
Transducer; Microphone Type: Handheld transmitter -- dynamic
Pick-Up Pattern: Cardioid
Handheld transmitter with cardioid dynamic mic capsule. Includes mic clip.
