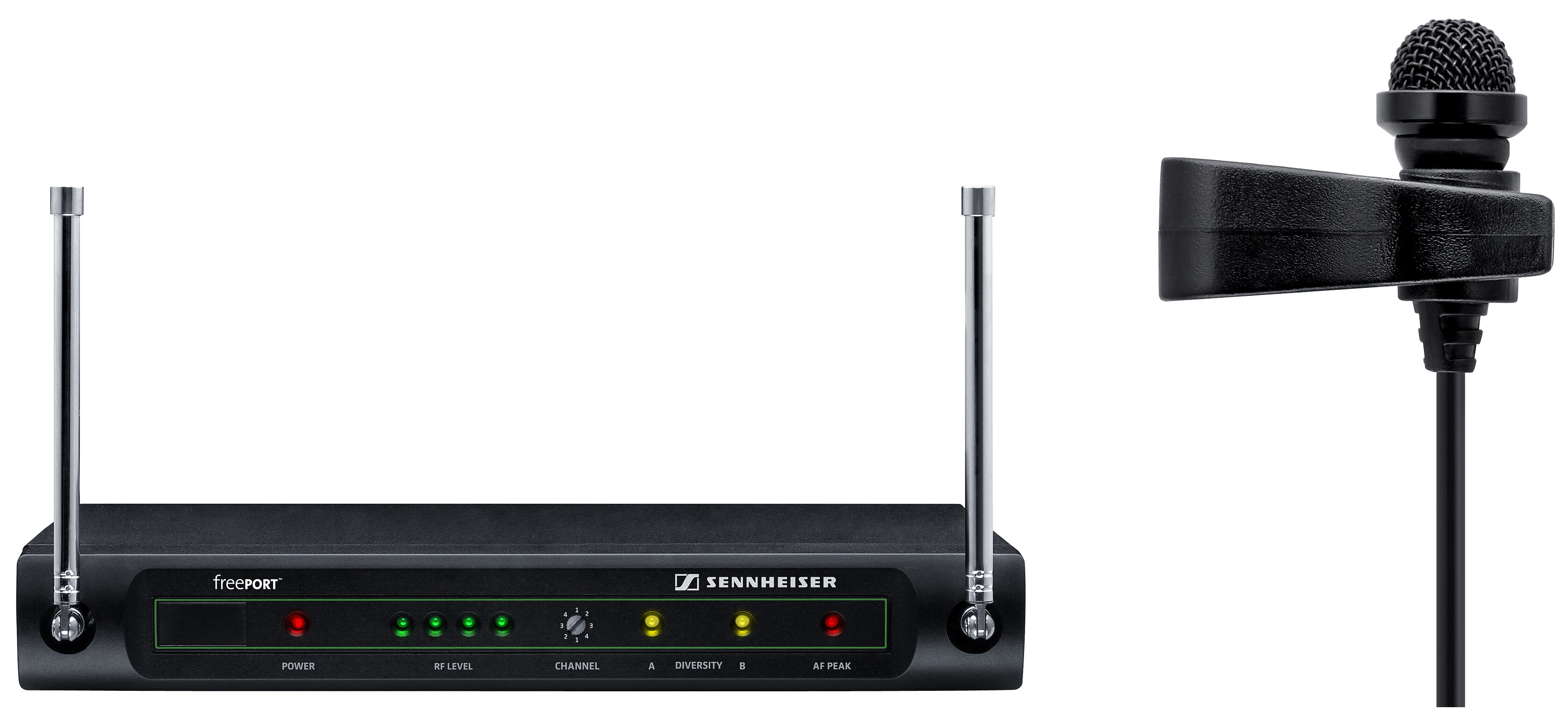

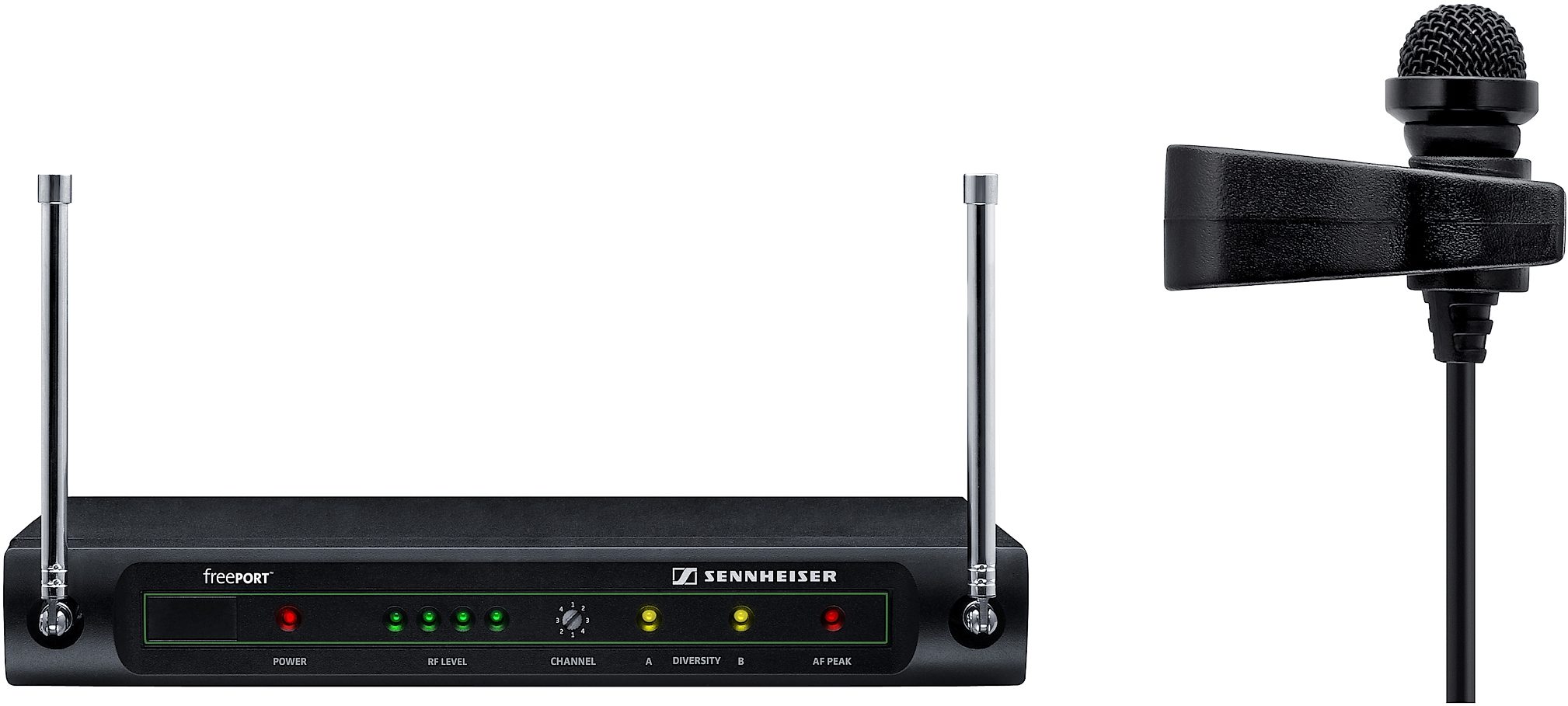

The Presentation Set ensures maximum speech comprehensibility during lectures, presentations and theater performances. The system includes a bodypack transmitter, a diversity receiver and an inconspicuous clip-on microphone with an omni-directional pick-up pattern.
Features:
4 switchable UHF frequencies for interference-free reception
Absolutely safe transmission
Diversity Technology for highest reception quality
Adjustable Squelch for undisturbed operation
Receivers built-in robust metal housing
Dynamic processor for crystal-clear sound
Includes:
1 bodypack transmitter SK 2
1 clip-on microphone ME 2-2
1 diversity receiver EM 1
1 power supply
1 user manual
Technical Info
RF Frequency Range: UHF
Transmission/Receiving Frequencies: 4
Switching Bandwidth: 2 MHz
Frequency Response: 80-16.000 Hz
Signal-to-Noise Ratio: 95 dB(A)
THD, Total Harmonic Distortion: < 1%
Audio Output Level (Balanced): XLR, +16 dBu
Audio Output Level (Unbalanced): Jack, +10 dBu
Power Supply: 12 VDC nom
Dimensions (Receiver): 35 x 213 x 98 mm
Weight (Receiver): 570g
RF Output Power: 10 mW
Operating Time: 10 h
Power Supply (Bodypack Transmitter): 9V PP3
Dimensions (Bodypack Transmitter): 60x100x30 w clip
Weight (Bodypack Transmitter): 90 g w/o battery
Transducer; Microphone Type: Clip-on microphone -- permanently polarized condenser
Pick-Up Pattern: Omni-directional
Omni-directional, clip-on lavalier condenser mic with a bodypack transmitter.
