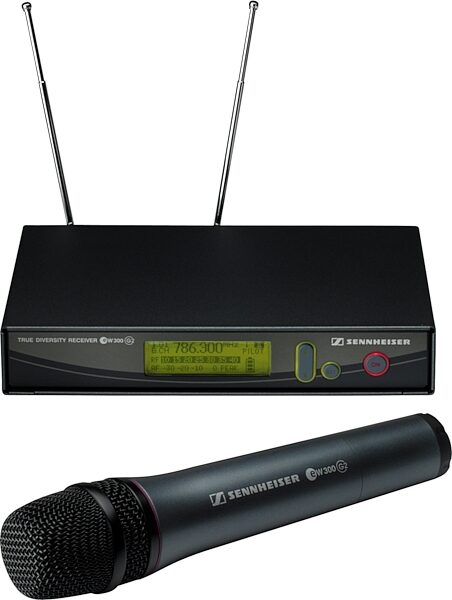

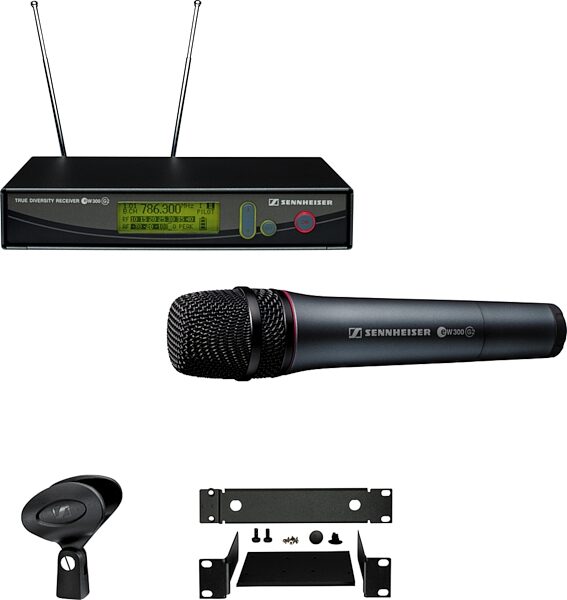

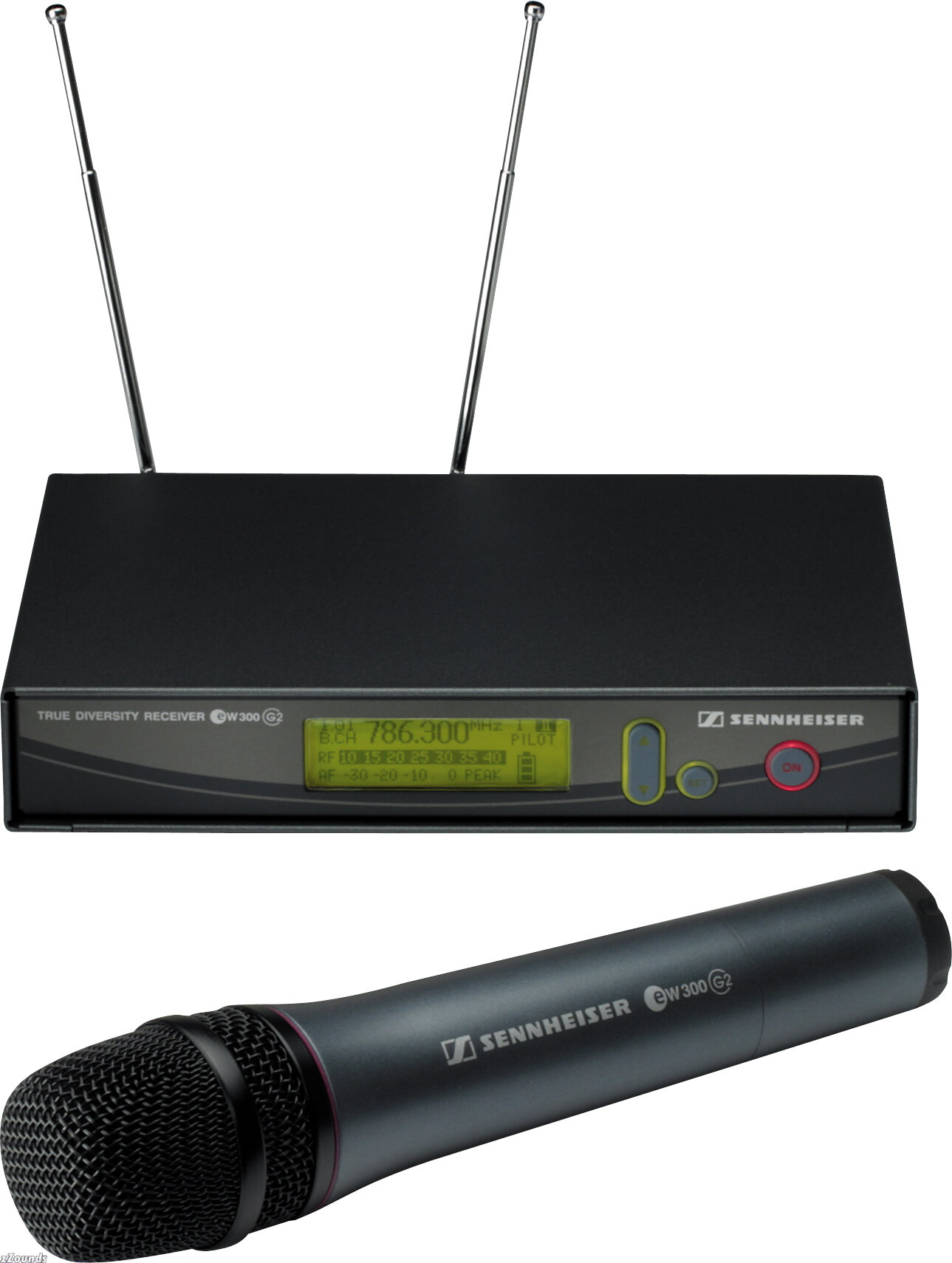

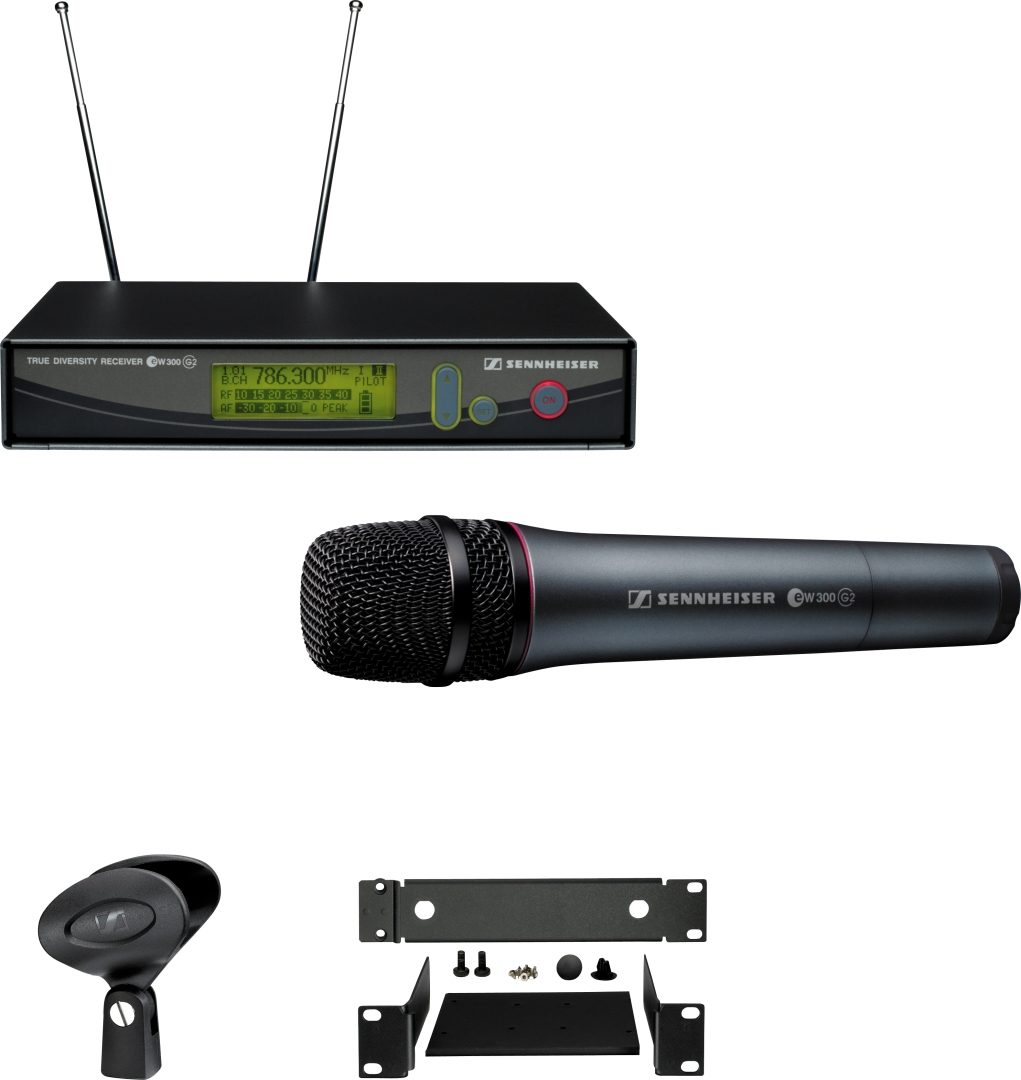

Handheld transmitter w/ME865 condenser super-cardioid capsule and rack mountable receiver.
Features
Autoscan on all receivers for simple and secure frequency selection
1440 frequencies within a 36MHz switching bandwidth for greater tuning flexibility
Robust metal construction for durability
Smaller bodypack transmitters and receivers(30% smaller than current EW)
Pilot tone squelch (defeatable for backwards compatibility with original EW systems)
New battery concept (AA cells and rechargeable battery accessories)
Transmitter battery status telemetry on all models
Audio signal metering on transmitter LCD display
External charging contacts on 300 and 500 series bodypacks
XLR jacks on all rack-mountable units (including 100 series)
Technical Info
Channel Frequencies
Channel A: 519.600 to 549.325 MHz (TV Channels 22-27)
Channel B: 630.300 to 661.400 MHz (TV Channels 40-45)
Channel C: 740.100 to 768.400 MHz (TV Channels 59-64)
Frequency range: 518-554, 626-662, 740-776, 786-822, 830-866MHz
Switchable frequencies: 1440
Af freq response: 40-18000Hz
Signal to noise ratio: >112dB
Compander system: HDX
Pilot tone: 32768kHz, deafeatable
Receiver
Weight: EM: approx.1100g EK: approx. 158g
Dimensions: EM: 212x145x38 EK: 82x64x24
Squelch: Low: 5dB microvolts Mid: 15dB microvolts Hi: 25dB microvolts
Nominal peak deviation: XLR: Bal.:-24 to +18dBu Jack: Unbal.:-30 to +12dBu(adjustable in 6 dB-steps)
Current consumption: EM: approx.200mA EK: approx.130mA
Power supply: EM: 10.5-16V DC, 12V nom. EK: 2.4V DC
Adjacent channel rejection: >68dB
Image rejection: >72dB
Sensitivity: <2.5 microvolts
Intermodulation spacing: >68dB
Receiver principle: EM: true diversity, EK: non-diversity
Booster DC supply: none(only via antenna splitter ASP2)
Transmitter
Weight: SK:approx.158g SKM:approx. 450g SKP:approx. 195g
Power supply: 2.4V DC
Dimensions: SK:82x64x24 SKM:d=50x225 SKP:105x43x43
Nominal peak deviation: Mic:1.8V eff. Line:approx. 2,4Veff
Operating voltage: >8h
Current consumption: <170mA <250µA
RF outputs: typ. 30mW
Input impedance: Mic:10kOhm Line:1MOhm
Max sound pressure level: approx. 154dB
