This system is ideal for hands-free vocal and speech applications. The extremely small SK 300 G2 bodypack transmitter and the EM 300 G2 rack-mount receiver feature nine frequency banks with eight directly accessible presets each -- ready for immediate use.
Features
1440 tunable UHF frequencies for interference-free reception
Absolutely reliable transmission and extended range due to high RF output power
High-quality true diversity reception
Pilot tone squelch for eliminating RF interference when transmitter is turned off
Automatic frequency scan feature searches for available frequencies
Transmitter and receiver with rugged metal housings
Rack mount included
Transmitter with backlit display (lights up when a button is pushed)
Receiver features user-friendly menu operation via two-colour backlit graphics display (green = OK; red = warning)
Lock function avoids accidental changing of settings
HDX compander for crystal-clear sound
4-step battery status display, also transmitted to receiver
Mute function for the transmitter
Wide range of accessories adapts the system to any requirement

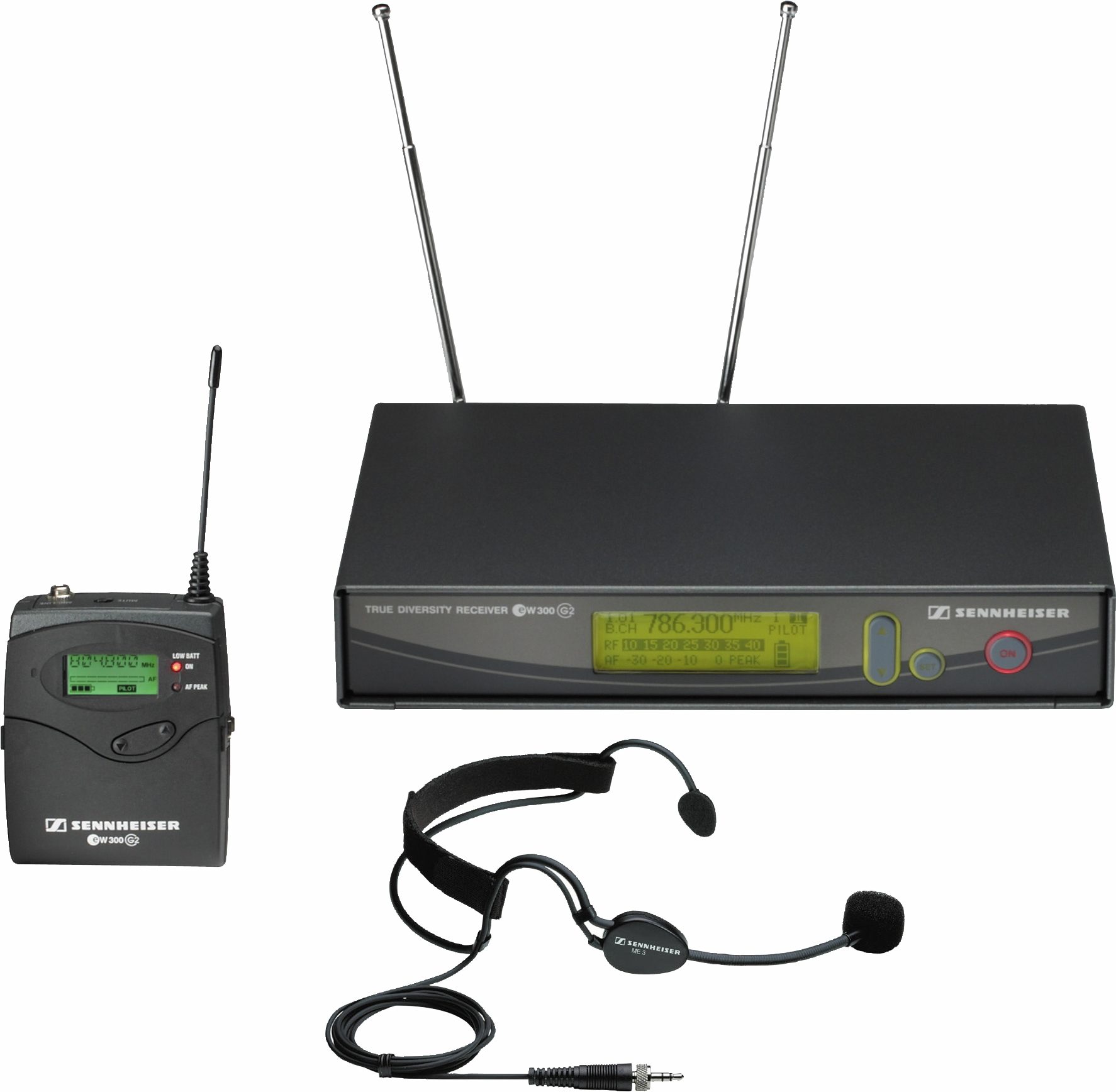

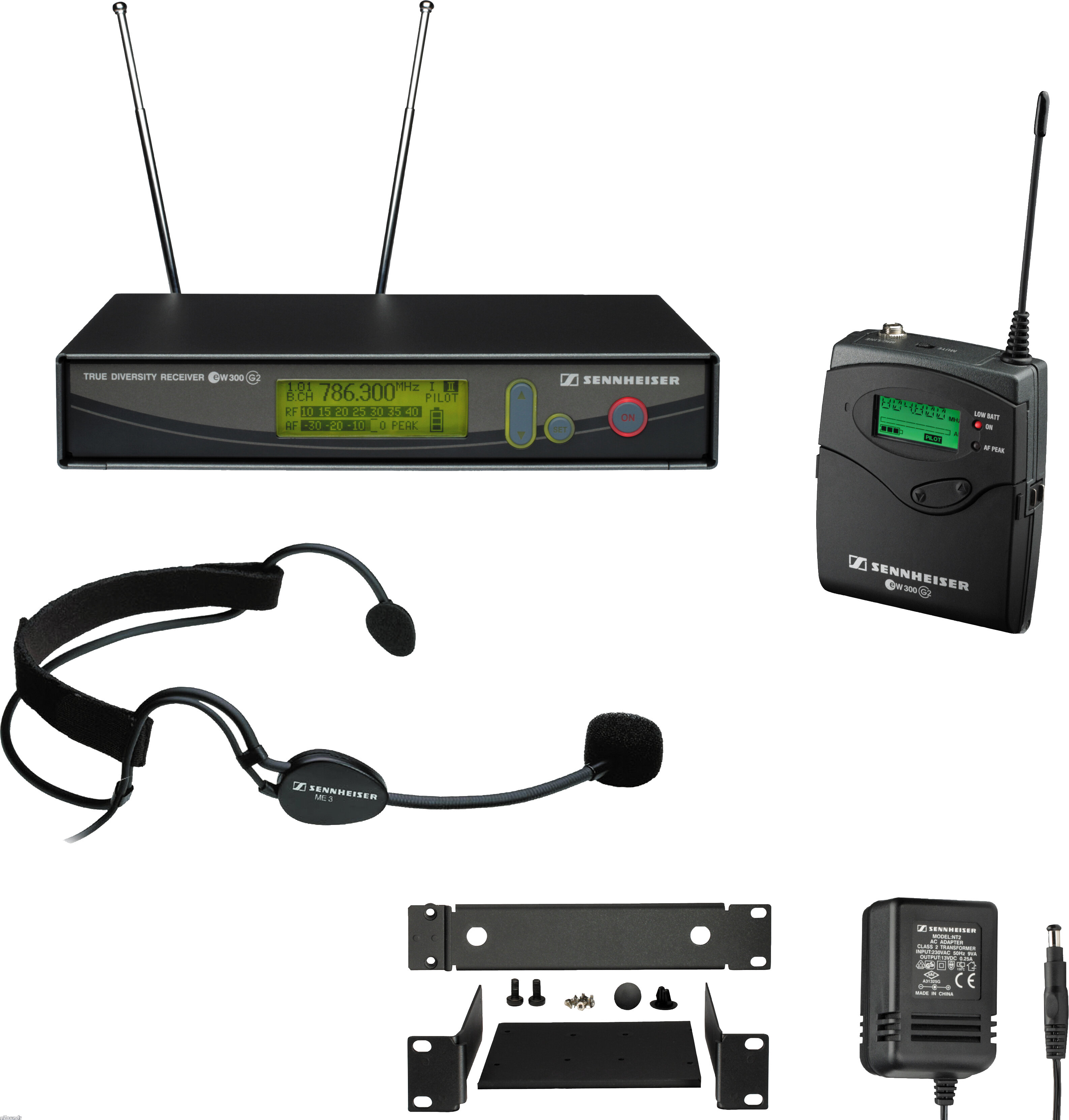

Delivery Includes
1 EM 300 G2 rack-mount receiver
1 SK 300 G2 bodypack transmitter
1 ME 3 headset
1 GA 2 rack mount
1 NT 2-1 power supply unit
2 telescopic antennas
2 AA batteries
Operating instructions
Technical Info
Channel Frequencies
Channel A: 519.600 to 549.325 MHz (TV Channels 22-27)
Channel B: 630.300 to 661.400 MHz (TV Channels 40-45)
Channel C: 740.100 to 768.400 MHz (TV Channels 59-64)
RF frequency range: 518..... 866 MHz
Transmission/receiving frequencies: 1440
Presets: 8
Switching bandwidth: 36 MHz
Peak deviation: +/- 48 kHz
Compander: HDX
Frequency response (microphone): 40.....18000 Hz
Signal-to-noise ratio: > 112 dB(A)
THD, total harmonic distortion: < 0,9 %
In compliance with: ETS 300422 , ETS 300445 , CE , FCC
Antenna connector: 2 BNC, 50 Ohm
Audio-XLR connector: 6,3 mm
Audio output level (balanced): XLR: +18 dBu max
Audio output level (unbalanced): Jack: +12 dBu max
Power supply: 10,5 - 16 V DC
Dimensions (Receiver): 212 x 145 x 38 mm
Weight (Receiver): 1100 g
RF output power: 30 mW
Power supply: 2x 1.5 V battery AA (Mignon)
Operating time (transmitter): > 8 h
Input voltage range: mic 1,8 V
Input voltage range: line 2,4 V
Dimensions (Transmitter): 82 x 64 x 24 mm
Weight (Transmitter): 158 g
Transducer; Microphone type: elektret
AF sensitivity: 1,6 mV/Pa
Sound pressure level (SPL): 150 dB(SPL) max.
Pick-up pattern: super-cardioid
loading...
Because this item is used at your mouth or ear, it cannot be returned once opened due to health reasons.
