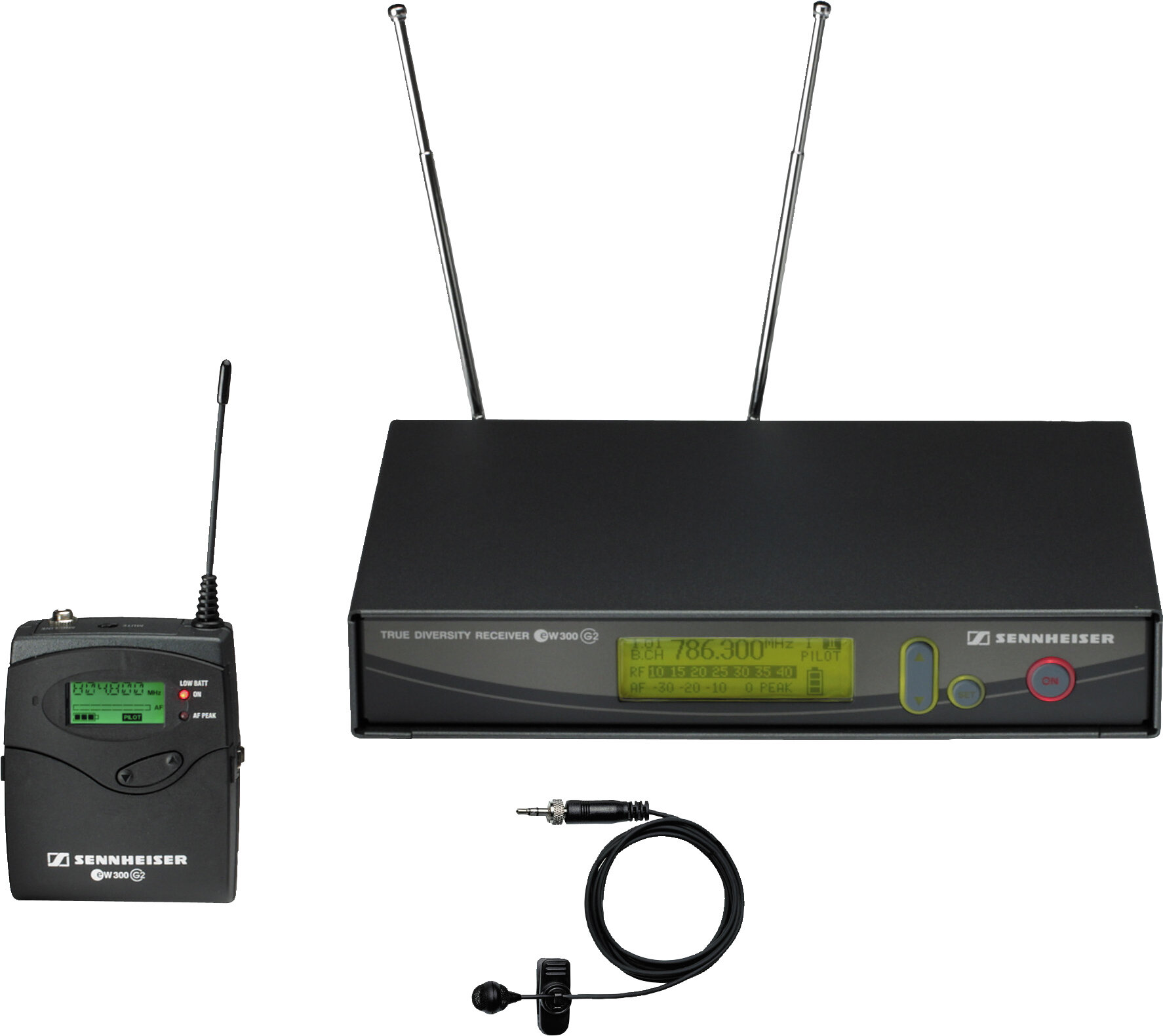

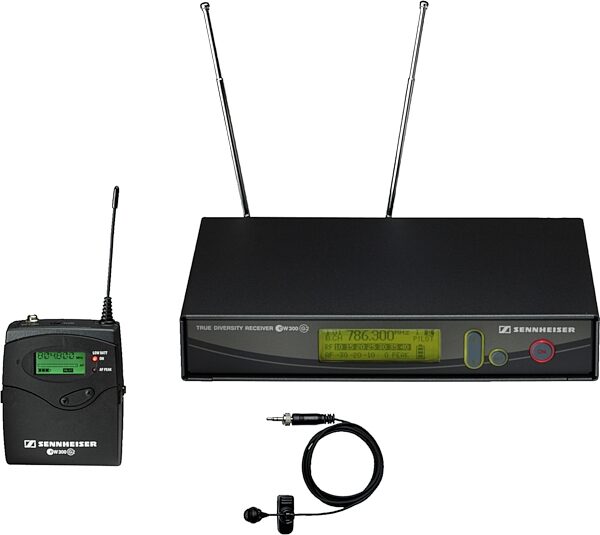

Sennheiser ew322G2 Cardioid Lavalier UHF Wireless System

This 300 Series system is an ideal choice for stage productions and presentations. The ME 4 clip-on microphone is virtually invisible and has excellent feedback rejection. The extremely small SK 300 G2 bodypack transmitter and the EM 300 G2 rack-mount receiver feature nine frequency banks with eight directly accessible presets each -- ready for immediate use.

Features
1440 tunable UHF frequencies for interference-free reception

Absolutely reliable transmission and extended range due to high RF output power

High-quality true diversity reception

Pilot tone squelch for eliminating RF interference when transmitter is turned off

Automatic frequency scan feature searches for available frequencies

Transmitter and receiver with rugged metal housings

Rack mount included

Transmitter has contacts for recharging the BA 2015 rechargeable battery pack directly in the transmitter

Transmitter with backlit display (lights up when a button is pushed)

Receiver features user-friendly menu operation via two-colour backlit graphics display (green = OK; red = warning)

Lock function avoids accidental changing of settings

HDX compander for crystal-clear sound

4-step battery status display, also transmitted to receiver

Mute function for the transmitter

Wide range of accessories adapts the system to any requirement

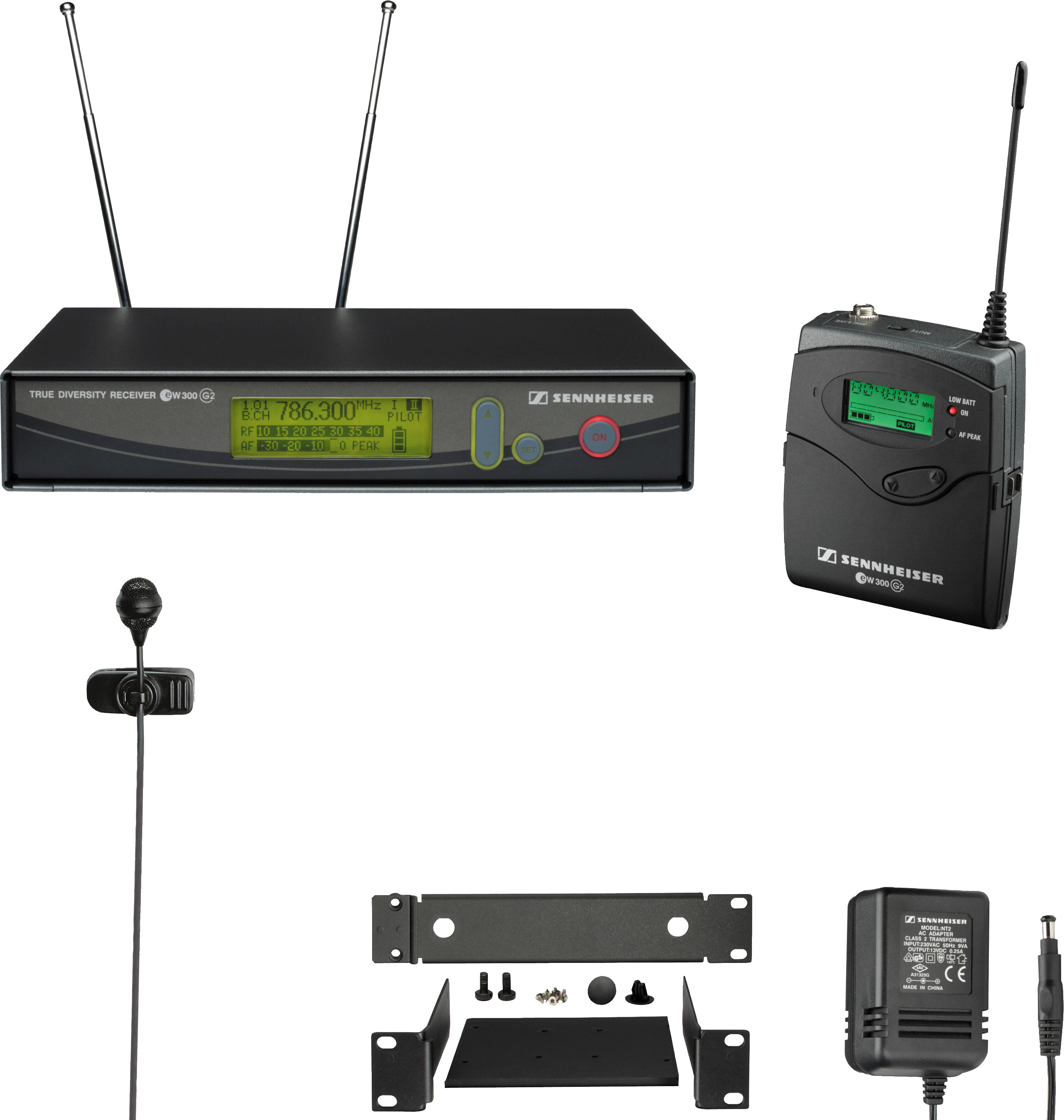

Delivery Includes
1 EM 300 G2 rack-mount receiver

1 SK 300 G2 bodypack transmitter

1 ME 4 clip-on microphone

1 GA 2 rack mount

1 NT 2-1 power supply unit

2 telescopic antennas

2 AA batteries

Operating instructions

Technical Info

Channel Frequencies
Channel A: 519.600 to 549.325 MHz (TV Channels 22-27)
Channel B: 630.300 to 661.400 MHz (TV Channels 40-45)
Channel C: 740.100 to 768.400 MHz (TV Channels 59-64)

RF frequency range: 518..... 866 MHz

Transmission/receiving frequencies: 1440

Presets: 8

Switching bandwidth: 36 MHz

Peak deviation: +/- 48 kHz

Compander: HDX

Frequency response (microphone): 40.....18000 Hz

Signal-to-noise ratio: > 112 dB(A)

THD, total harmonic distortion: < 0,9 %

In compliance with: ETS 300422 , ETS 300445 , CE , FCC

Antenna connector: 2 BNC, 50 Ohm

Audio-XLR connector: 6,3 mm

Audio output level (balanced): XLR: +18 dBu max

Audio output level (unbalanced): Jack: +12 dBu max

Power supply: 10,5 - 16 V DC

Dimensions (Receiver): 212 x 145 x 38 mm

Weight (Receiver): 1100 g

RF output power: 30 mW

Power supply: 2x 1.5 V battery AA (Mignon)

Operating time (transmitter): > 8 h

Input voltage range: mic 1,8 V

Input voltage range: line 2,4 V

Dimensions (Transmitter): 82 x 64 x 24 mm

Weight (Transmitter): 158 g

Transducer; Microphone type: elektret

AF sensitivity: 40 mV/Pa

Sound pressure level (SPL): 120 dB(SPL) max.

Pick-up pattern: cardioid
