The Evolution G3 100 head set system allows complete freedom Whether you are a singer, dancer or fitness trainer. Keep your hands free while you move across the entire stage during your performance. The head set system is ultra-light and comfortable to wear plus it supplies a powerful sound to reach the very last row with crystal clear quality.
Features
# Sturdy metal housing
# Automatic frequency management for transmitter and receiver
# Tunable UHF frequencies within a large switching bandwidth
# Programmable MUTE switch
# NEW: Wireless synchronization of transmitters via infrared interface
# NEW: Enhanced frequency bank management with up to 12 compatible frequencies per bank
# NEW: 42 MHz bandwidth with 1680 switchable frequencies
# NEW: Increased range for audio sensitivity
# NEW:Easy-to-read illuminated dot matrix display
# NEW: 4-level charge indicator for transmitter battery
# NEW: More control options (menu)
# NEW: Enhanced AF frequency range
# NEW: Soundcheck mode
# NEW: Integrated equalizer
# NEW: Contacts for recharging the BA 2015 accupack directly in the transmitter
# 2 AA batteries for more than 8 hours of use
# HDX compander for crystal-clear sound
# True diversity receiver for optimum reception
# High RF output power for large range
# Suitable for 19 inch rack mounting (1 U)

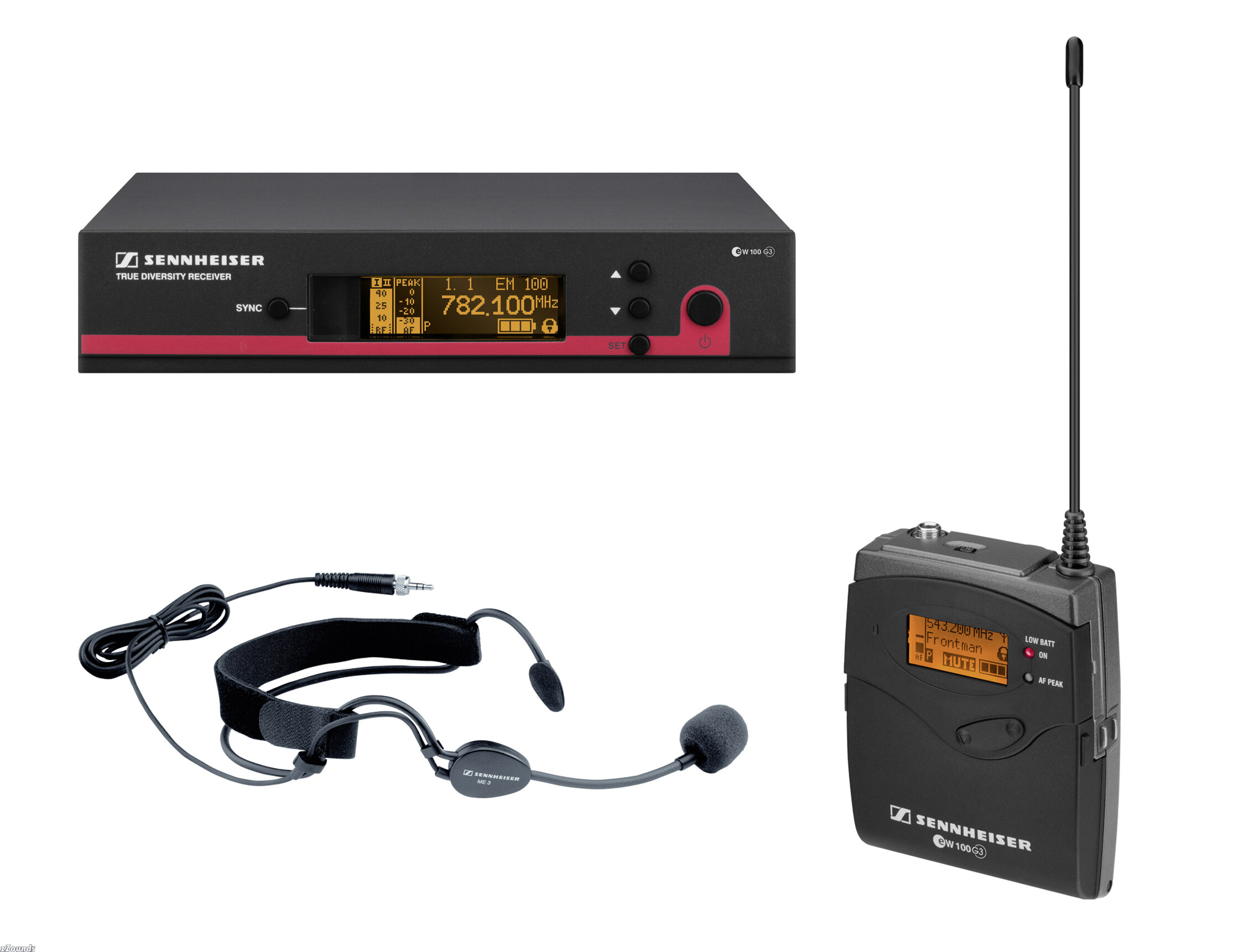

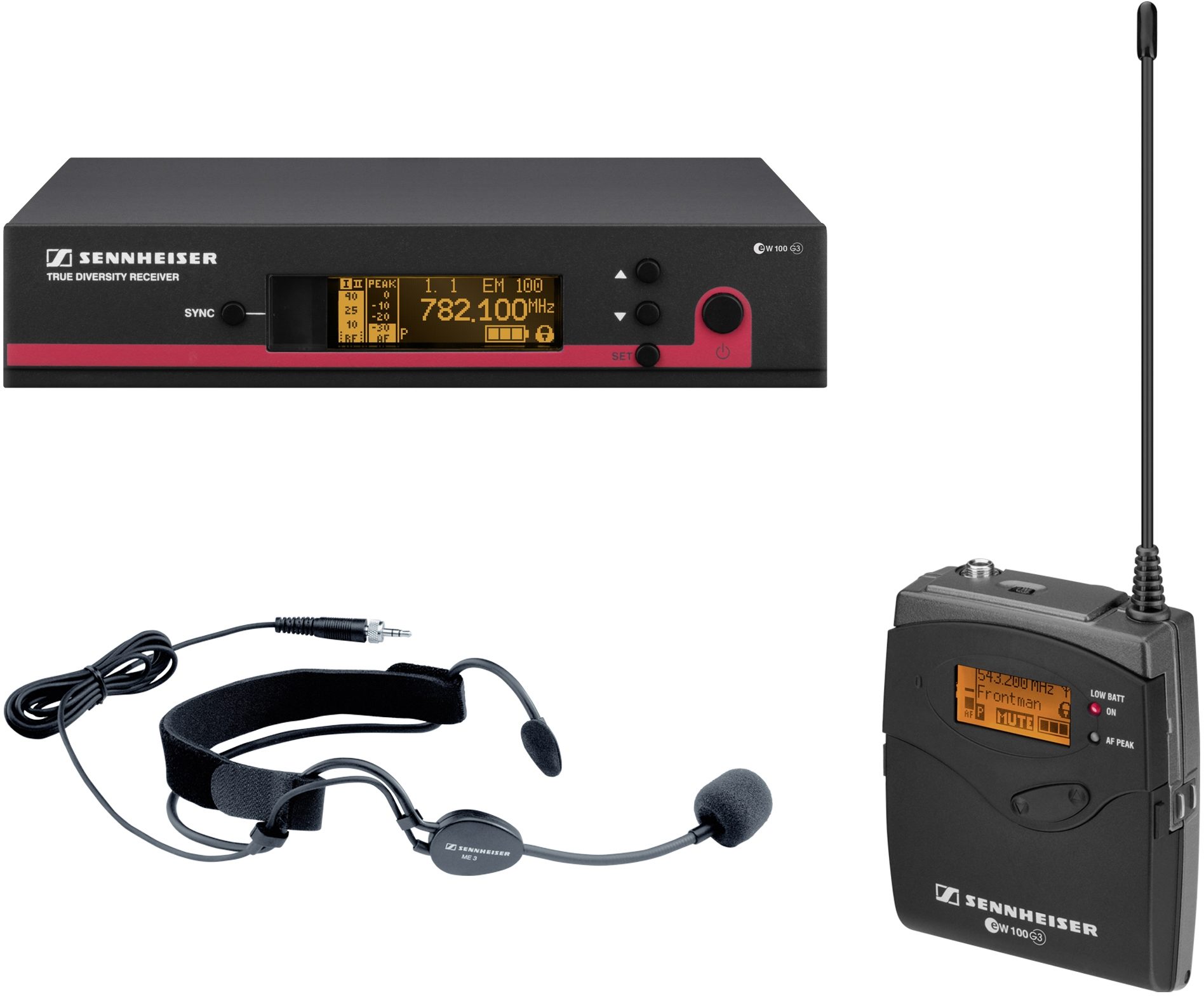

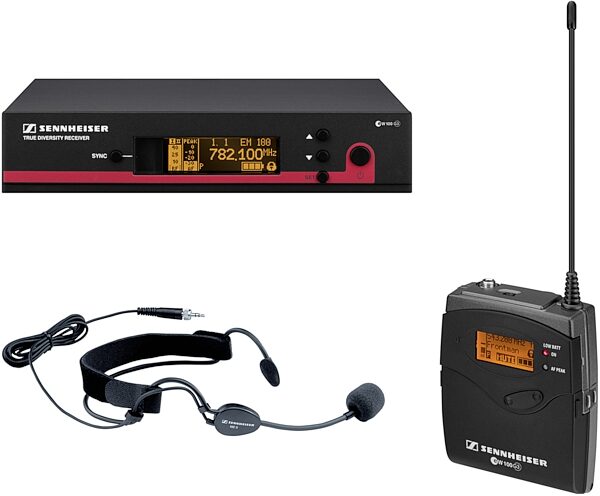

# Bodypack transmitter, ME 3 cardioid headset and rack mountable receiver
Technical Info
Specifications
Modulation: Broadband FM
Frequency Ranges (MHz):
- 516 - 558 (A)
- 566 - 608 (G)
- 626 - 668 (B) S
Switching bandwidth: 42 MHz
Frequency Banks: 20 (fixed), 1 (rewritable) Maximum # or presets per bank: 12
Pilot tone squelch: as ew G2, switchable
Compander: HDX, compatible with ew G2 and ew G1
Sennheiser Evolution G3 100 Receiver
Principle: True Diversity
Sensitivity (52dBAeff S/N: < 2.5 uV
Adjacent channel rejection: greater than or equal to 65 dB
Intermodulation rejection: greater than or equal to 65 dB
Blocking: greater than or equal to 70 dB
Squelch:
- Lo: 5 dBuV
- MID: 15 dBuV
- Hi: 25 dBuV Antenna inputs: 2 x BNC / 50 ohms
S/N: greater than or equal to 110 dB
AF Frequency response: 80-18,000 Hz
AF outputs:
- 1/4 inch jack: +12 dBu (unbal.)
- XLR: +18 dBu + 6 dB gain (bal.) AF gain range: 48 dB (3 dB steps)
EQ presets:
- Flat
- LoCut (-3 dB / 180 Hz)
- HiBoost (+6 dB / 10 kHz)
LoCut/HiBoost Temperature Range: -10*C - +55*C
Power Supply: NT 2-3
Nominal voltage: 12 V DC
Current comsumption: 300 mA
Operation time (batteries, BA2015 accupack): typically 8 hrs
Dimensions (B x H x T): 212 x 43 x 190mm
Weight: approximately 900 grams
Sennheiser Evolution G3 100 Bodypack Transmitter
RF Output power: 30 mW
Antenna output: whip antenna (SK)
AF frequency response: 25 - 18,000 Hz
AF Sensitivity range: 60 dB / 3 dB steps
THD: less than or equal to 0.9 per cent
Maximum input voltage: +12 dBu
Input impedance: 1 M ohms
Input capacity: 4 steps, switchable
Temperature range: -10C - +55C
Power Supply: 2 x AA batteries, 1.5V
Nominal Voltage: 2.4 V DC
Current Consumption: typically 180 mA (30 mW)
Operation time (batteries/BA2015): typically 8 hours
Dimensions: 82 x 64 x 24 mm
Weight (including batteries): approximately 160 grams
