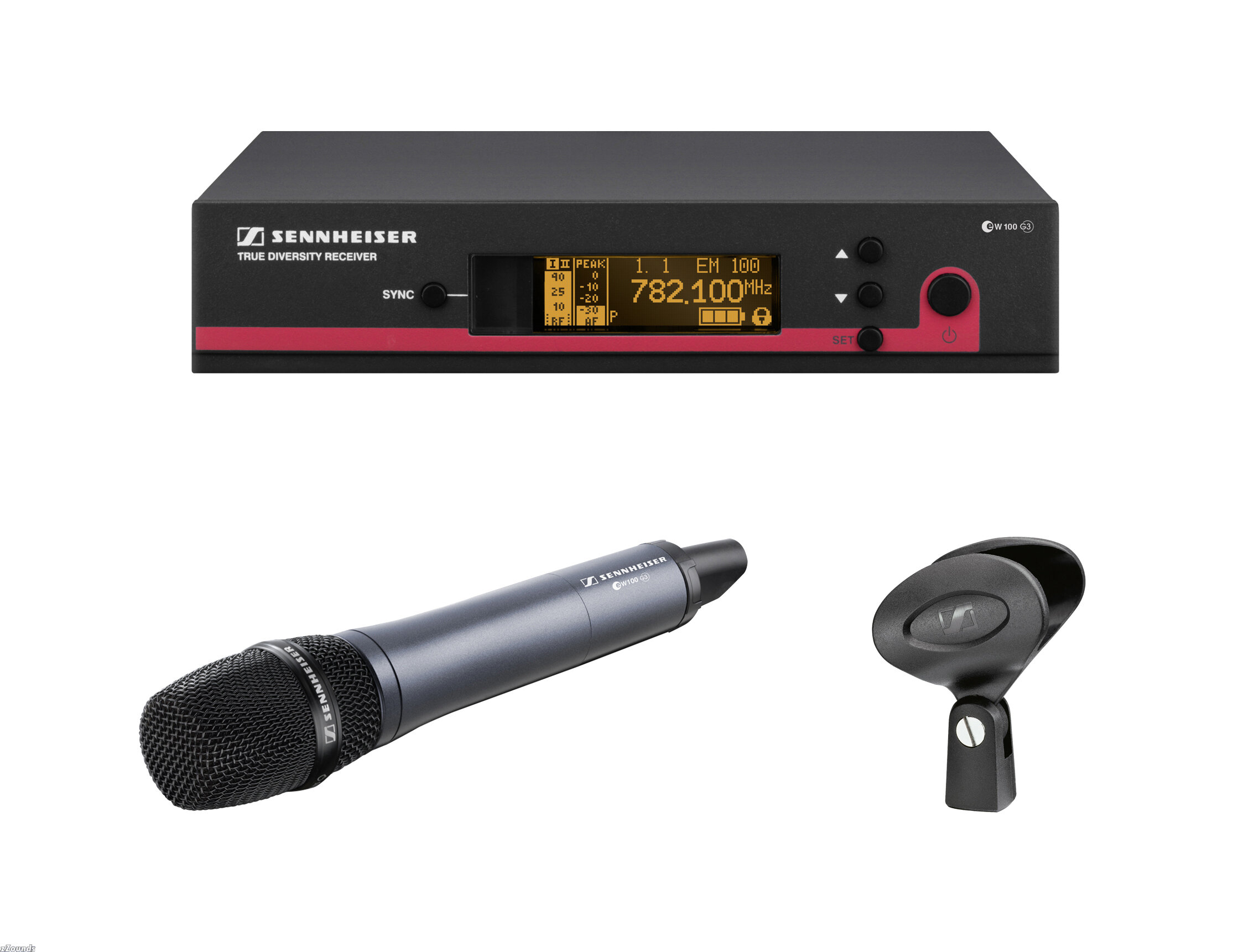

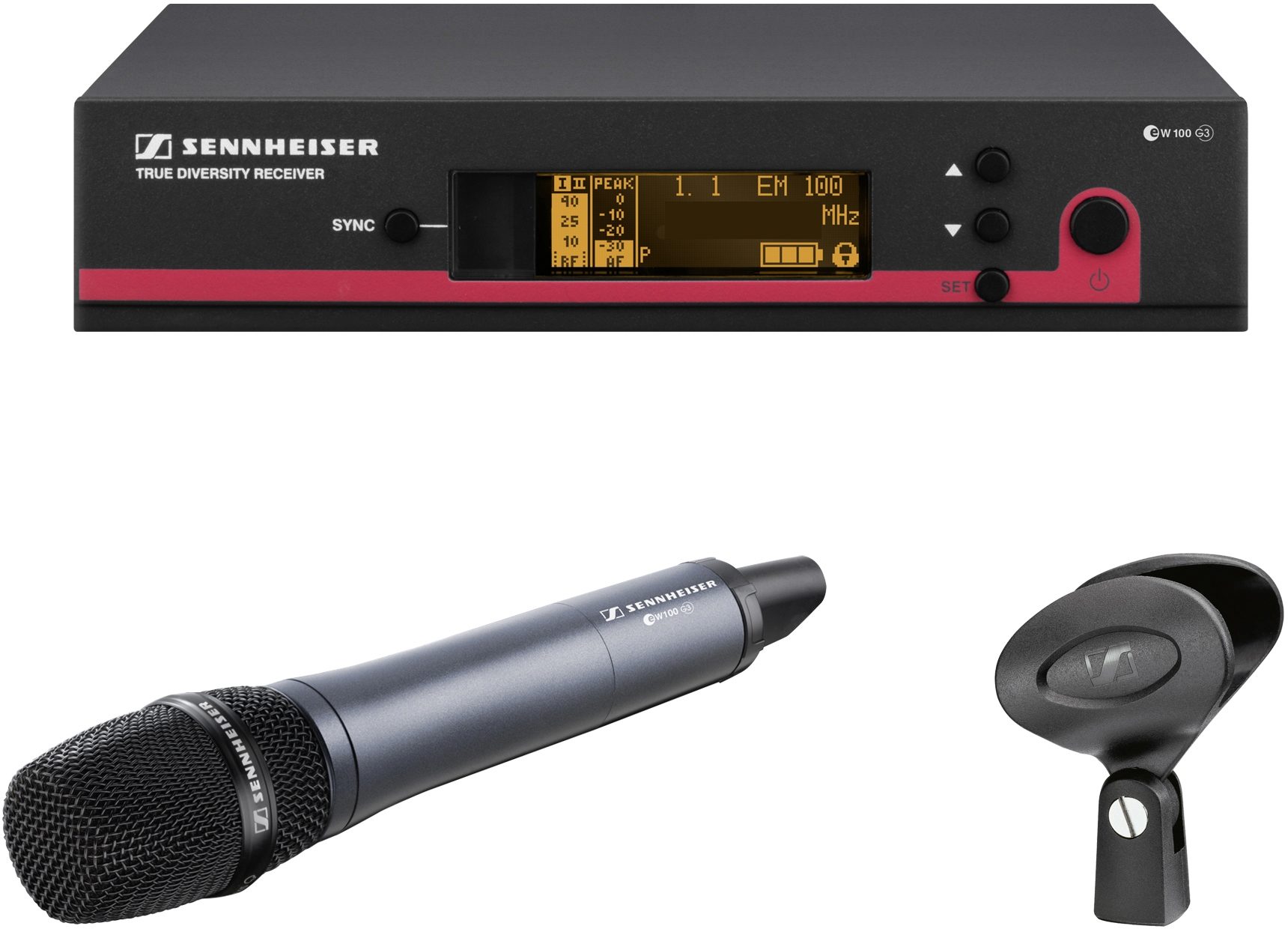

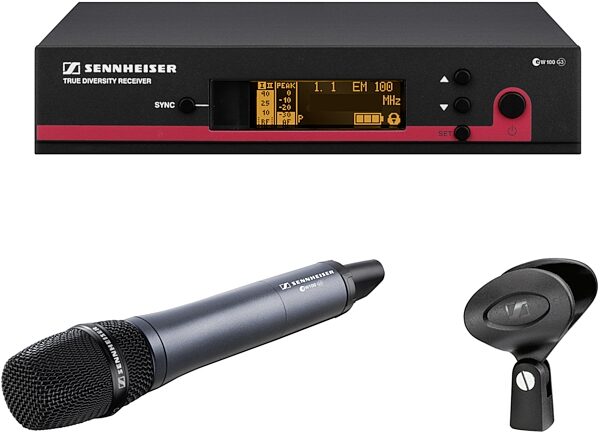

Sennheiser ew145G3 Evolution G3 100 Series UHF Handheld Wireless

The supercardioid e845 capsule on the Evolution G3 100 has an extended high frequency response and full dynamic range. Smooth warm tonal response with presence lift for vocal clarity and projection cuts through high on-stage sound levels. Consistent on/off axis and proximity response maintain sound quality while moving, providing greater on-stage freedom.

Features
# Sturdy metal housing

# Automatic frequency management for transmitter and receiver

# Tunable UHF frequencies within a large switching bandwidth

# NEW: Wireless synchronization of transmitters via infrared interface

# NEW: Enhanced frequency bank management with up to 12 compatible frequencies per bank

# NEW: 42 MHz bandwidth with 1680 switchable frequencies

# NEW: Increased range for audio sensitivity

# NEW: Easy-to-read illuminated dot matrix display

# NEW: 4-level charge indicator for transmitter battery

# NEW: More control options (menu)

# NEW: Enhanced AF frequency range

# NEW: Soundcheck mode

# NEW: Integrated equalizer

# NEW: Contacts for recharging the BA 2015 accupack directly in the transmitter

# 2 AA batteries for more than 8 hours of use

# HDX compander for crystal-clear sound

# True diversity receiver for optimum reception

# High RF output power for large range

# Suitable for 19 inch rack mounting (1 U)

# Includes handheld transmitter with e845 capsule and rack mountable receiver

Technical Info

Specifications
Modulation: Broadband FM

Frequency Ranges (MHz):
- 516 - 558 (A)
- 566 - 608 (G)
- 626 - 668 (B) Switching bandwidth: 42 MHz

Frequency Banks:
- 20 (fixed)
- 1 (rewritable) Maximum # or presets per bank: 12

Pilot tone squelch: as ew G2, switchable

Compander: HDX, compatible with ew G2 and ew G1

Sennheiser Evolution G3 100 Receiver
Principle: True Diversity

Sensitivity (52dBAeff S/N: < 2.5 uV

Adjacent channel rejection: greater than or equal to 65 dB

Intermodulation rejection: greater than or equal to 65 dB

Blocking: greater than or equal to 70 dB

Squelch:
- Lo: 5 dBuV
- MID: 15 dBuV
- Hi: 25 dBuV Antenna inputs: 2 x BNC / 50 ohms

S/N: greater than or equal to 110 dB

AF Frequency response: 80-18,000 Hz

AF outputs:
- 1/4 inch jack: +12 dBu (unbal.)
- XLR: +18 dBu + 6 dB gain (bal.) AF gain range: 48 dB (3 dB steps)

EQ presets:
- Flat
- LoCut (-3 dB / 180 Hz)
- HiBoost (+6 dB / 10 kHz)

LoCut/HiBoost Temperature Range: -10*C - +55*C

Power Supply: NT 2-3

Nominal voltage: 12 V DC

Current comsumption: 300 mA

Operation time (batteries, BA2015 accupack): typically 8 hrs

Dimensions (BxHxT): 212 x 43 x 190mm

Weight: approximately 900 grams

Sennheiser Evolution G3 100 Transmitter
RF Output power: 30 mW

Antenna output: short antenna (SK)

AF frequency response: 80 - 18,000 Hz

AF Sensitivity range: 48 dB / 6 dB steps

THD: less than or equal to 0.9 per cent

Maximum input voltage: +12 dBu

Input impedance: 1 M ohms

Input capacity: 4 steps, switchable

Temperature range: -10C - +55C

Power Supply: 2 x AA batteries, 1.5V

Nominal Voltage: 2.4 V DC

Current Consumption: typically 180 mA (30 mW)

Operation time (batteries/BA2015): typically 8 hours

Dimensions: 50 x 265 mm

Weight (including batteries): approximately 450 grams
