Sennheiser ew122G3 Evolution G3 100 Series UHF Lavalier Wireless

The Evolution G3 Presentation lapel system offers professional quality plus it is discrete and easy on the voice. The compact cardioid clip-on microphone in this system rejects noises coming from the side which means less risk of feedback. Without having to speak very loudly, the presenter's voice is delivered in a rich and full manner. The bodypack transmitter features charging contacts for the optional rechargeable battery. Sync up the bodypack to the receiver wirelessly with the new wireless sync. Lastly, the true diversity receiver provides for reliable signal transmission, even in large rooms.

Features
# Sturdy metal housing

# Automatic frequency management for transmitter and receiver

# Tunable UHF frequencies within a large switching bandwidth

# Programmable MUTE switch

# NEW: Wireless synchronization of transmitters via infrared interface

# NEW: Enhanced frequency bank management with up to 12 compatible frequencies per bank

# NEW: 42 MHz bandwidth with 1680 switchable frequencies

# NEW: Increased range for audio sensitivity

# NEW: Easy-to-read illuminated dot matrix display

# NEW: 4-level charge indicator for transmitter battery

# NEW: More control options (menu)

# NEW: Enhanced AF frequency range

# NEW: Soundcheck mode

# NEW: Integrated equalizer

# NEW: Contacts for recharging the BA 2015 accupack directly in the transmitter

# 2 AA batteries for more than 8 hours of use

# HDX compander for crystal-clear sound

# True diversity receiver for optimum reception

# High RF output power for large range

# Suitable for 19 inch rack mounting (1 U)

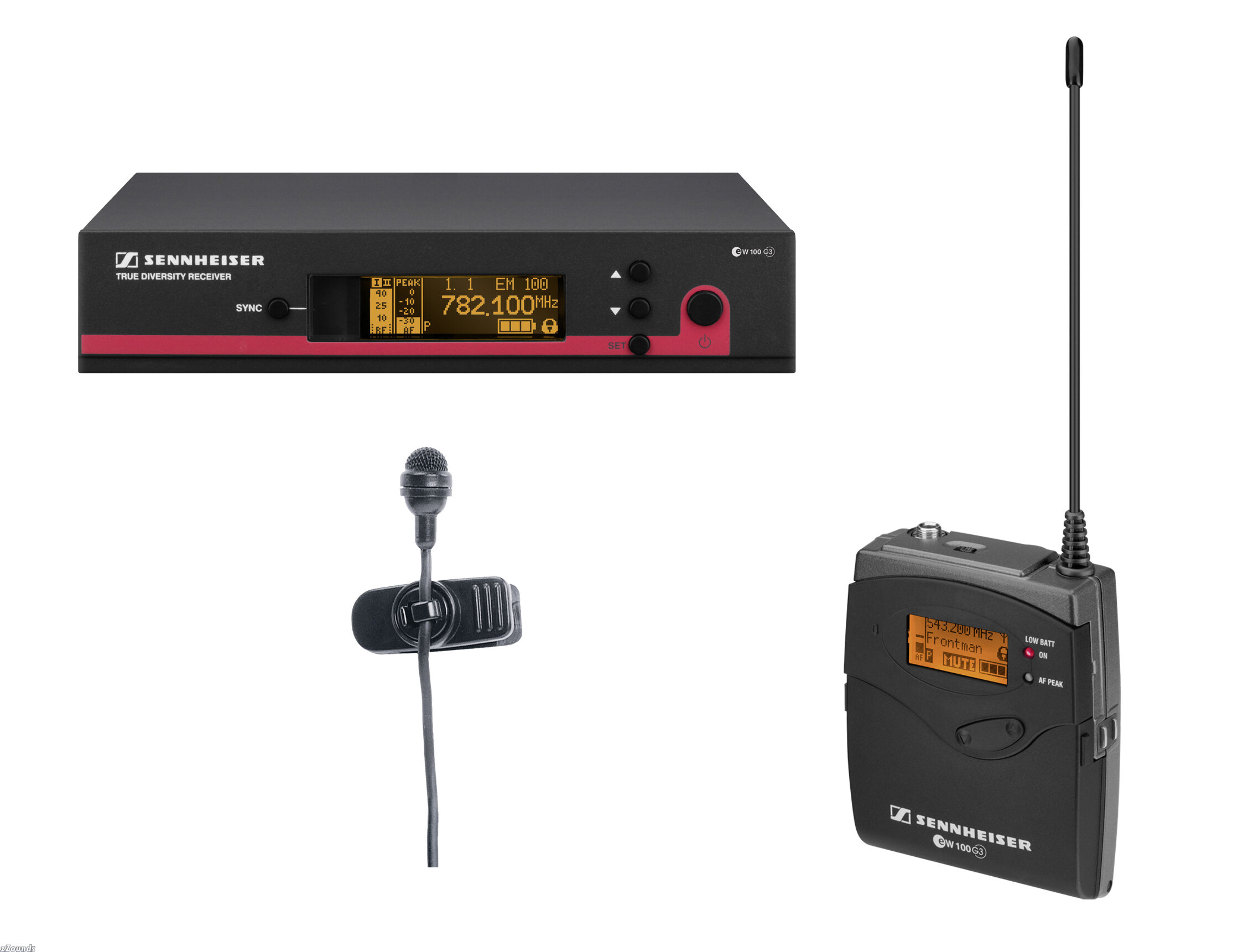

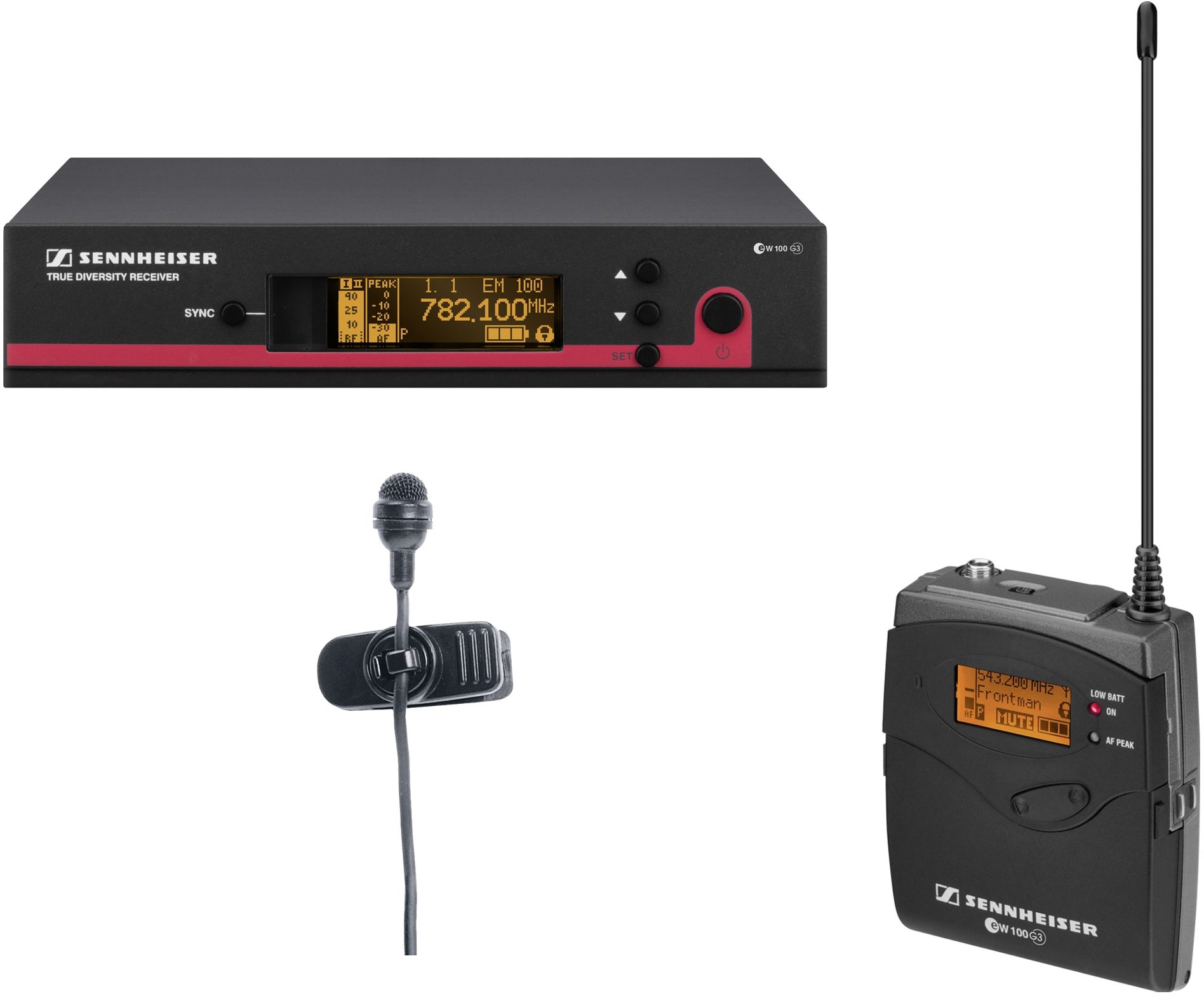

# Includes bodypack transmitter, ME 4 cardioid lavalier and rack mountable receiver

Technical Info

Specifications
Modulation: Broadband FM

Frequency Ranges (MHz):
- 516 - 558 (A)
- 566 - 608 (G)
- 626 - 668 (B) Switching bandwidth: 42 MHz

Frequency Banks:
- 20 (fixed)
- 1 (rewritable) Maximum # or presets per bank: 12

Pilot tone squelch: as ew G2, switchable

Compander: HDX, compatible with ew G2 and ew G1

Sennheiser Evolution G3 100 Receiver
Principle: True Diversity

Sensitivity (52dBAeff S/N: < 2.5 uV

Adjacent channel rejection: greater than or equal to 65 dB

Intermodulation rejection: greater than or equal to 65 dB

Blocking: greater than or equal to 70 dB

Squelch:
- Lo: 5 dBuV
- MID: 15 dBuV
- Hi: 25 dBuV Antenna inputs: 2 x BNC / 50 ohms

S/N: greater than or equal to 110 dB

AF Frequency response: 80-18,000 Hz

AF outputs:
- 1/4 inch jack: +12 dBu (unbal.)
- XLR: +18 dBu + 6 dB gain (bal.) AF gain range: 48 dB (3 dB steps)

EQ presets:
- Flat
- LoCut (-3 dB / 180 Hz)
- HiBoost (+6 dB / 10 kHz)

LoCut/HiBoost Temperature Range: -10*C - +55*C

Power Supply: NT 2-3

Nominal voltage: 12 V DC

Current comsumption: 300 mA

Operation time (batteries, BA2015 accupack): typically 8 hrs

Dimensions (B x H x T): 212 x 43 x 190mm

Weight: approximately 900 grams

Sennheiser Evolution G3 100 Bodypack Transmitter
RF Output power: 30 mW

Antenna output: whip antenna (SK)

AF frequency response: 25 - 18,000 Hz

AF Sensitivity range: 60 dB / 3 dB steps

THD: less than or equal to 0.9 per cent

Maximum input voltage: +12 dBu

Input impedance: 1 M ohms

Input capacity: 4 steps, switchable

Temperature range: -10C - +55C

Power Supply: 2 x AA batteries, 1.5V

Nominal Voltage: 2.4 V DC

Current Consumption: typically 180 mA (30 mW)

Operation time (batteries/BA2015): typically 8 hours

Dimensions: 82 x 64 x 24 mm

Weight (including batteries): approximately 160 grams
