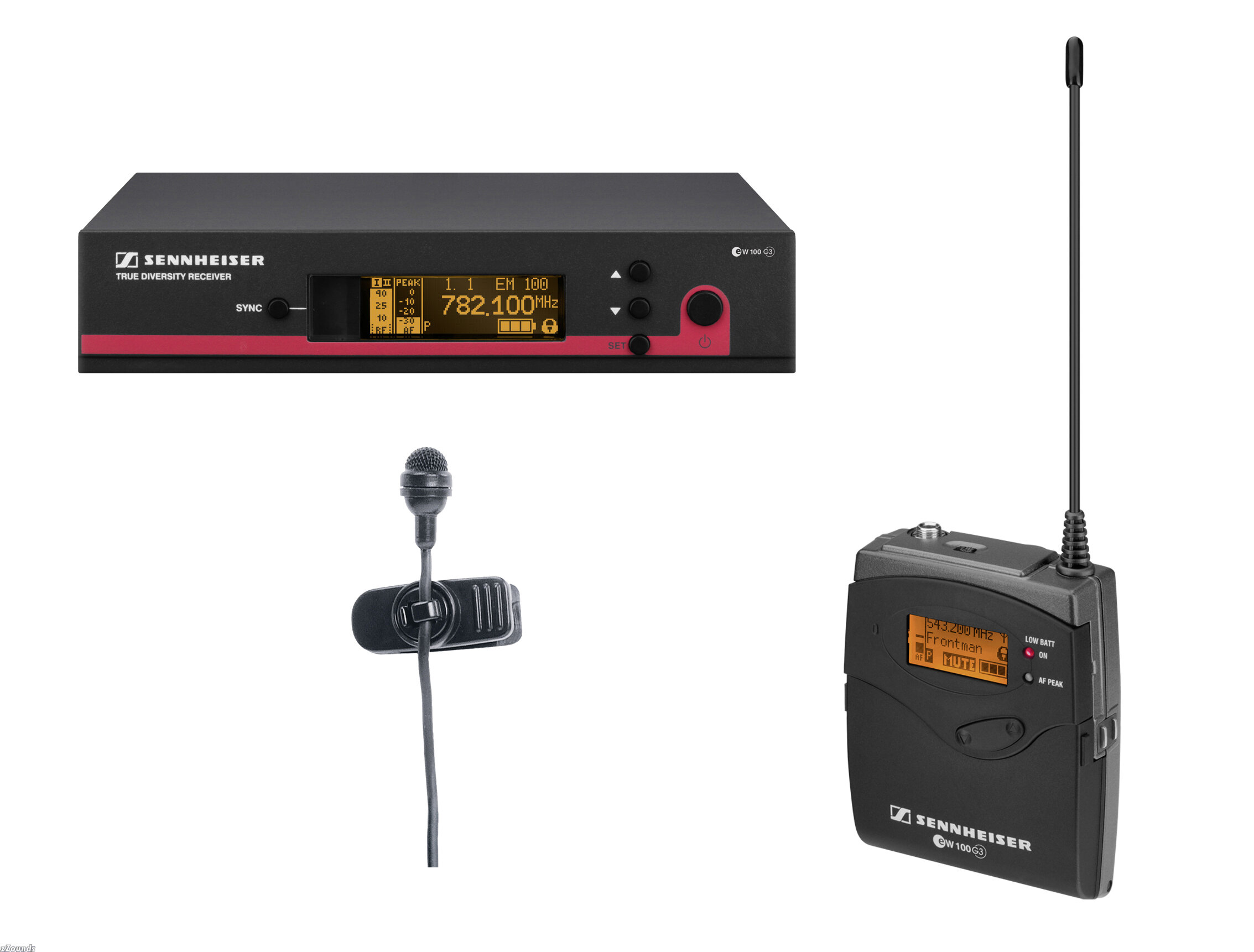

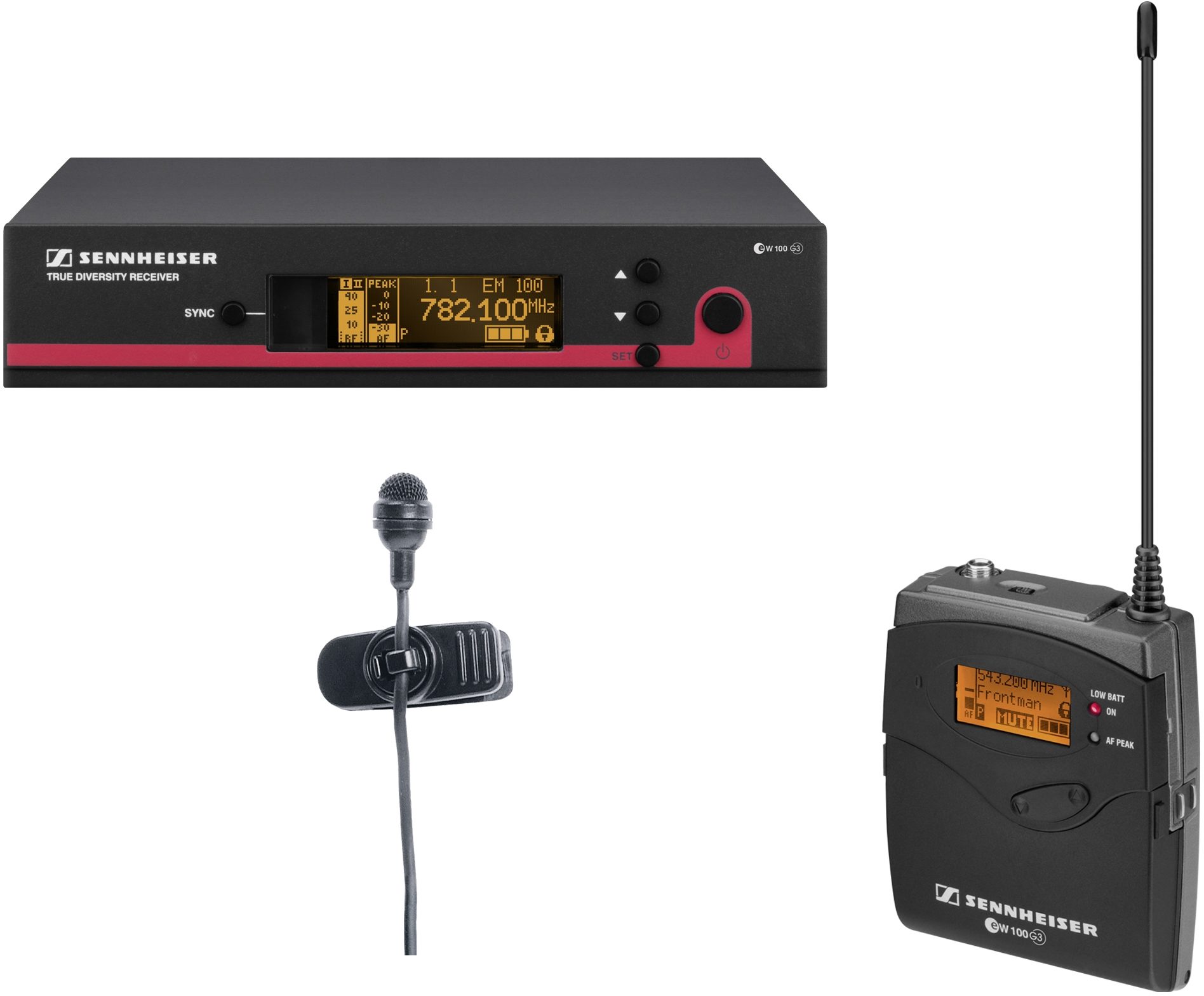

Sennheiser ew112G3 Evolution G3 100 Series UHF Lavalier Wireless

Product Description

Make your presentations come to life with the Sennheiser ew112G Evolution G3 Lavalier. The included omni-directional microphone provides natural speech reproduction while remaining inconspicuously small. The bodypack transmitter has a rechargeable battery option so you can concentrate on your presentation - not on purchasing batteries. Demand the best in wireless presentation technology with quick setup, user-friendly operation, and absolute reliability due to the true diversity receiver. Now featuring wireless infrared transmitter sync for easy setup.

Features

-Sturdy metal housing (transmitter and receiver)
- 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
- Enhanced frequency bank system with up to 12 compatible frequencies
- High-quality true diversity reception
- Pilot tone squelch for eliminating RF interference when transmitter is turned off
- Automatic frequency scan feature searches for available frequencies
- Enhanced AF frequency range
- Increased range for audio sensitivity
- Wireless synchronization of transmitters via infrared interface
- User-friendly menu operation with more control options
- Illuminated graphic display (transmitter and receiver)
- Auto-Lock function avoids accidental changing of settings
- HDX compander for crystal-clear sound
- Transmitter feature battery indicatation in 4 steps, also shown on receiver display
- Programmable Mute function
- Integrated Equalizer and Soundcheck mode
- Contacts for recharging BA 2015 accupack directly in the transmitter
- Wide range of accessories adapts the system to any requirement

Frequency Ranges:

- Channel A: 516 - 558 MHz
- Channel B: 626 - 668 MHz
- Channel G: 566 - 608 MHz

Consumer Alert
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure. zZounds is an authorized dealer of Sennheiser products.

Technical Data
RF frequency range: 516 - 865 MHz
Transmission/receiving frequencies: 1680
Presets: 12
Switching bandwidth : 42 MHz
Compander: HDX
Frequency response: 25-18.000 Hz
Signal-to-noise ratio: >110 dB(A)
THD, total harmonic distortion: < 0,9 %

Receivers
True diversity
Antenna connector: 2x BNC, 50 Ohm
Audio output level (balanced) XLR: +18 dBu max Jack: +12 dBu max
Audio output level (unbalanced) Jack: +12dBu max 12 V DC
Dimensions: 202x212x43mm
Weight: ~900g

Transmitter
RF output power ty.: 30 mW battery AA (Mignon)
Power supply: 2x AA batteries
Operating time typ.: 8h
Input voltage range: 1,8 V line
Input voltage range: 3 V eff. line
Dimensions: 82x64x24mm
Weight: ~160g
Clip-on microphone
Transducer, Microphone type: Permanent polarized 130 dB(SPL) max.
AF sensitivity: 20 mV/Pa omni- directional
Sound pressure level (SPL): 130 dB(SPL) max.
Pick-up pattern: Omni-directional

Dimensions and Weight in Packaging

Channel A

Shipping Weight: 5 lbs

Channel B

Shipping Weight: 5 lbs

Channel G

Shipping Weight: 5 lbs
