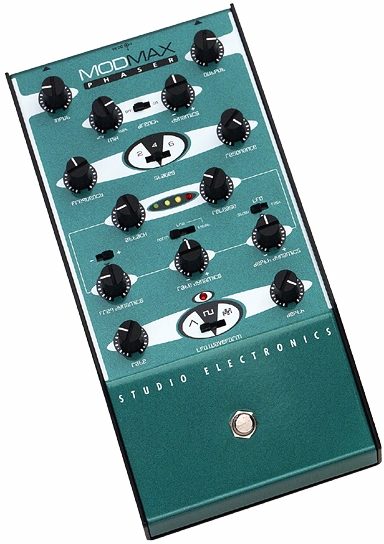

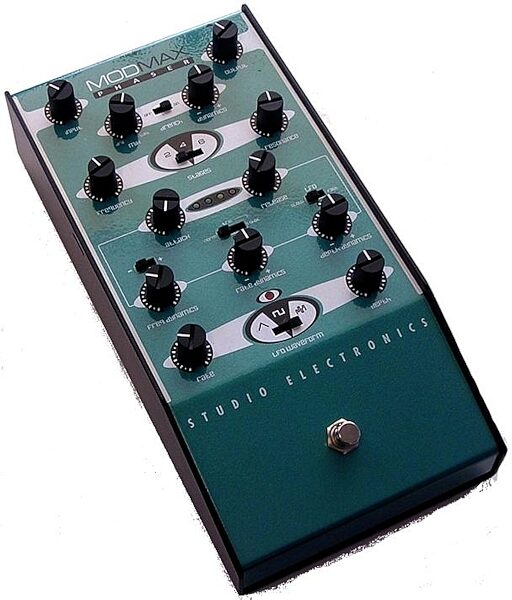

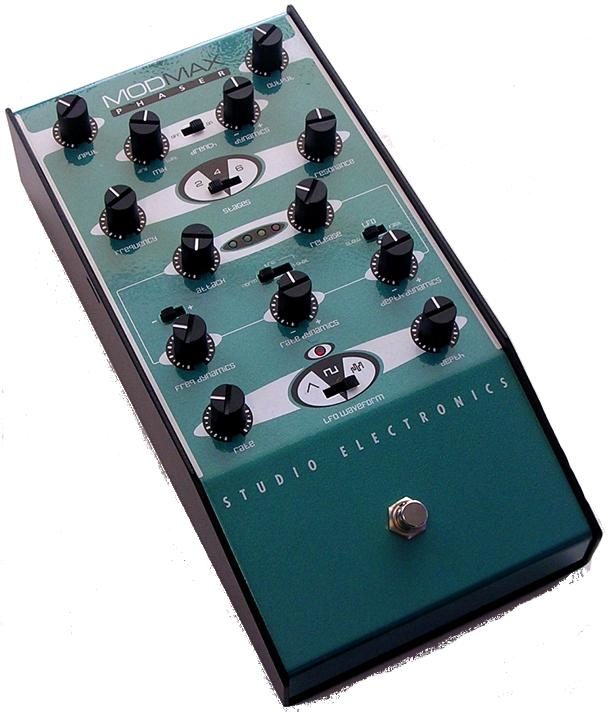

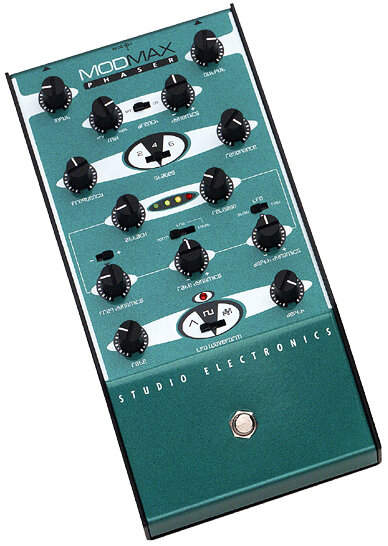

Studio Electronics ModMax Phaser Pedal

Who says it has to be a guitar or bass? Let only your desire to imagine... commune with the possible - dictate the inevitable - compel the followers. These Premium Quality Pedals rock the Omega Series potent 12db Filter as only Senior Caswell could. Said to be "the most exciting boxes at the Winter NAMM '03". Freak your source with the Modmax Phaser's "Invertable Dynamic Control", or square wavy "Effect Soaking" ripped straight outta those juicy ATC-X discrete circuits; even dare to Pinch and Sweep: 2, 4, or 6 stage. At these prices, the Modmax Phaser is truly S.E.'s most approachable Discovery Channels.

Technical Info

13 control potentiometers:

Wide range input for guitars and instruments

Level balancing output

Effect mix 100% dry to 100% wet

Mix dynamics for positive and negative modulation of effect level

Filter sweep frequency

Resonance

Envelope follower attack

Envelope follower release

LFO rate

LFO depth (A Voltage Controlled Exponential L.F.O.!)

LFO rate dynamics with positive and negative modulation

LFO depth dynamics with positive and negative modulation

Filter frequency dynamics (with positive and negative switch)

6 slide switches:

Effect Soak (Drench) for serious effect level distortion

Number of stages: two, four, or six

Filter dynamics polarity: + or -

LFO rate range: normal to audio frequency

LFO trigger: normal, one shot (for auto-wah), envelope key trigger

LFO waveform: triangle, square, or sample and hold

Face plate necessities:

Effect on/off footswitch with relay bypass

LFO rate LEDs

4 LED envelope threshold indicator)

Back panel jacks:

Input, Output, Power Entry Module for external auto switching 9VDC power supply
