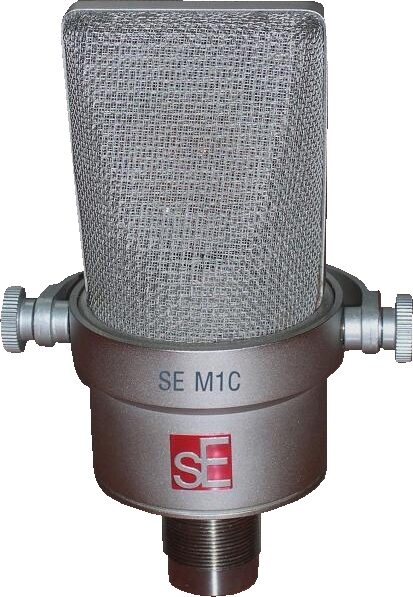

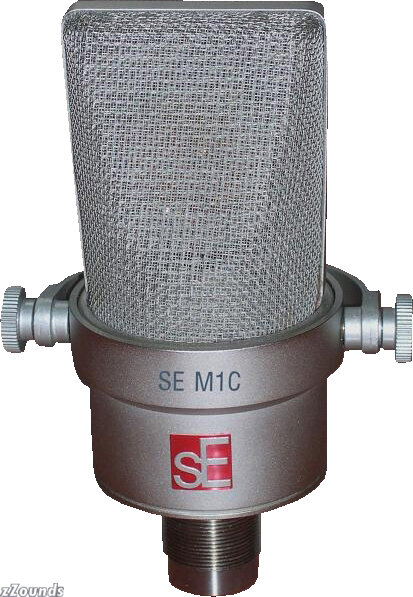

The M1C Cardioid Condenser Microphone brings the advantages of the smooth classic sound of a high quality hand crafted condenser microphone within the reach of more users. Recommended for: Voice, Electric Guitar, Acoustic string instruments, reeds, horns, drums and percussion.
Features:
1 in. Gold hand-crafted diaphragm
Wide response
Integral mount
'Mini' size allows tight positioning
130 dB SPL rated
Includes:
Custom designed integral shock-mount
Aluminum flight case
Technical Info
Acoustical Operating Principle: Pressure gradient transducer
Directional Pattern: Cardioid
Frequency Range: 20 Hz to 20 kHz
Sensitivity at 1 kHz into 1 k ohm: 20 mV/Pa
Rated Impedance: 200 ohms
Rated Load Impedance: 1000 ohms
Equivalent SPL CCIR 468-3: 22 dB
Equivalent SPL DIN/IEC 651: 13 dB-A
S/N Ratio CCIR 468-3: 70 dB
S/N Ratio DIN/IEC 651: 81 dB
Maximum SPL for THD 0.5%: 130 dB
Supply Voltage: 48 V +/- 4 V
Current Consumption: 2 mA
Matching Connector: XLR 3F
Weight: Approx. 745g
Diameter: 64mm
Length: 144mm
