SoundGraph D-Vinyl2020 DJ Controller and MP3 Player Package

Vinyl, MP3 files, CD's, turntables, and digital effects, DJ's want to use them all and with the new Soundgraph D-Vinyl 2020 you can! That's because the D-Vinyl 2020 is a complete hardware AND software package that combines a full blown 3-rack space DJ controller with mixer, dual jog wheels, slider and switch controls, and an integrated USB sound card with all the interface software needed to play MP3 files, CD's, and even your favorite records.

Here's the deal; the D-Vinyl has 3 Playing Modes: Digital Vinyl Mode allows you to play and control MP3 files stored on your computer's Hard Drive with conventional turntables or CD players and use all your performance moves like CUEing, backCUEing, scratching, fast/slow spinning, etc. MP3 Mode allows you to play and control MP3 files right from the 2020 controller without having to use a mouse or keyboard (up to 99 songs in each playlist). Analog Vinyl Mode lets you control your turntables and CD players and play your vinyl or CD collection using only the hardware controller just like in a conventional turntable/CD setup.

The D-Vinyl is compatible with Windows 98SE, 2000, ME, and XP so there is no need to install Linux or another operating system into your computer. All software features (play, pitch shift, beat sync, cue, loop (20cues and 20 loops per MP3), edit, track search, search/load while playing, and much more can be accessed directly by the controller so you can keep spinning instead of typing. 6 pair RCA inputs with dual phono preamps, Type A and B USB ports. See, you can have it all!

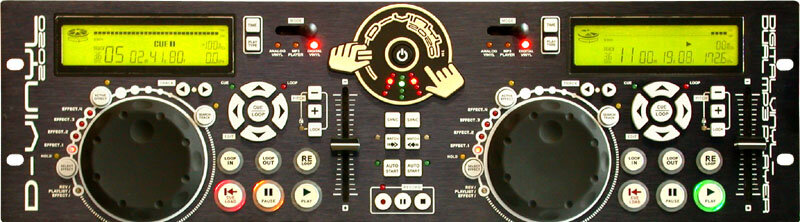

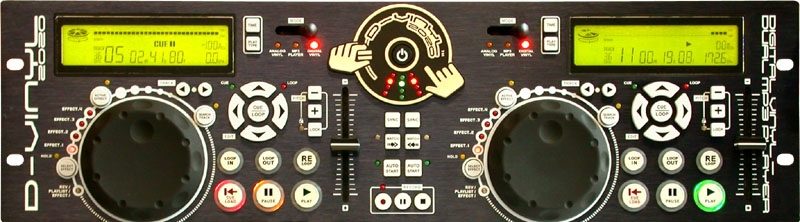

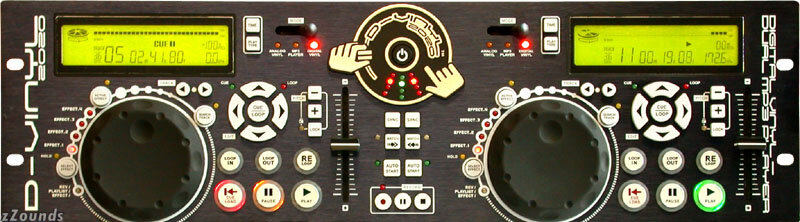

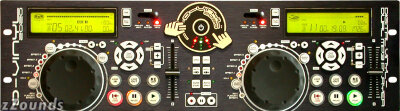

Hardware
D-Vinyl2020 H/W is a latest dual CD player type controller for the whole operation of S/W and the interface device to connect with computer and the current DJ devices like turntables and mixer. No necessary to use keyboard or mouse during your gig. All the controls with Jog wheel, Buttons, Sliders and LCD display in D-Vinyl2020 H/W. Without turn-table or CD player, D-Vinyl2020 H/W works also as a stand alone controller for the remix of MP3.

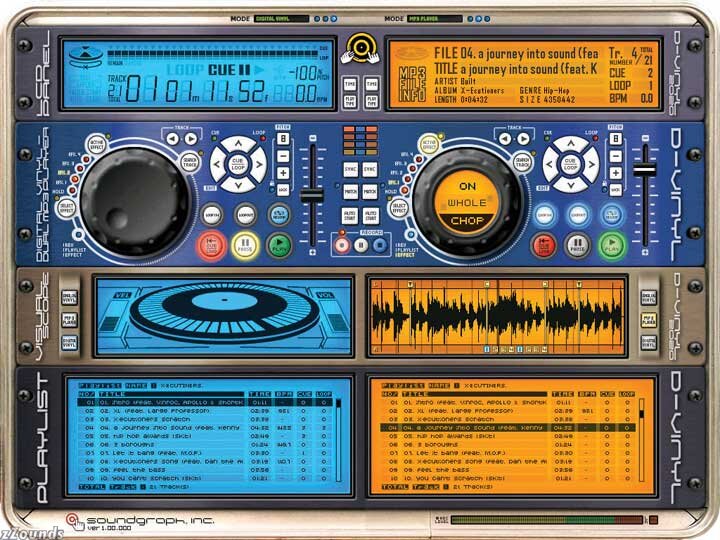

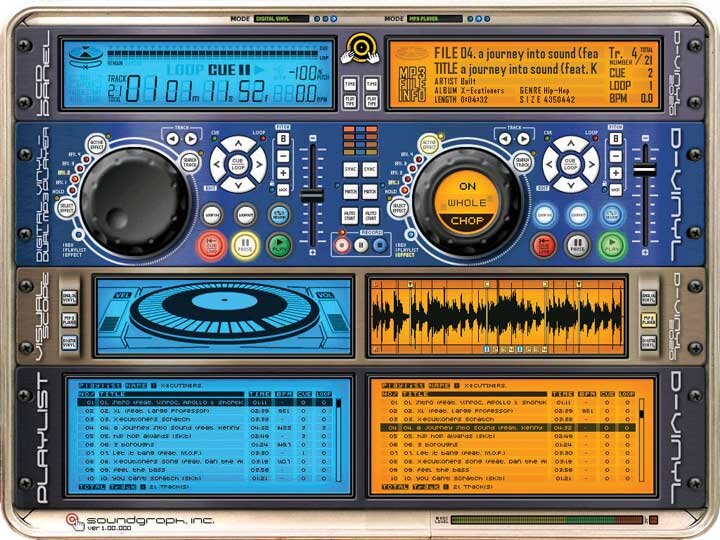

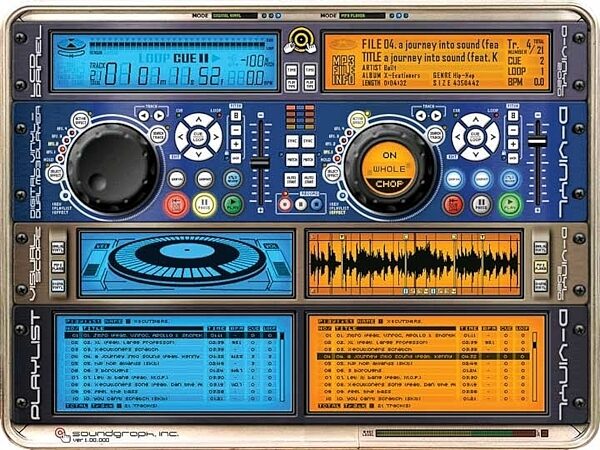

Software

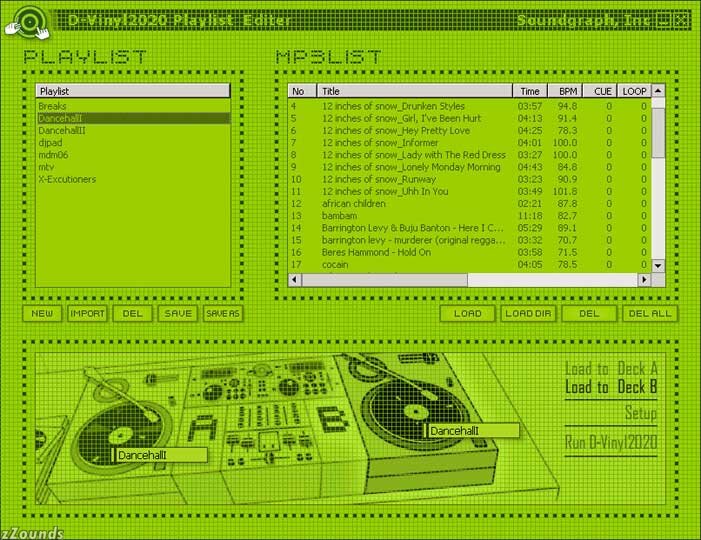

D-Vinyl2020 software provides 3 applications: Dual MP3 Player, Playlist Editor, MP3 Editor.

Major functions of D-Vinyl2020 are Spin MP3 with Turntable or the latest CD player

AUTO/MANUAL/PRE Beat Counter

Effects-CHOP, AUTO PAN, EFFECT, VINYL SIMULATOR

Pitch Controls by +/-8%, +/-12%, +/-25% or +/-100%

Never Shock or Skip

Saving 20 CUE/LOOP points per Each MP3 File

Recording your remix as .wav in real-time

Professional [2IN/4OUT] USB Internal Soundcard

Playing Normal Vinyl

D-Vinyl Record
The record has a special frequency signal in the groove in order to receive the dynamics of the turntable for the control of MP3s from your HDD like scratching. So, you can put this specially designed digital vinyl on your normal turntable, with a normal needle, then you can play MP3 in D-Vinyl2020 software with the real touch of vinyl. Also with the Audio CD supplied by D-Vinyl2020, you can connect the CD Player with D-Vinyl hardware like the CDJ1000 to control MP3 with your CD player. If you put normal vinyl on your turntable instead of this Digital Vinyl, you can also play it under the Analog Vinyl Mode in D-Vinyl2020 hardware.

Technical Info

System Requirements
OS: Windows 98SE, ME, 2000 and XP

CPU: Pentium III 550 MHz or higher (Recommended Pentium III 866 MHz or higher, and Pentium IV 1.4 Ghz or higher for XP users)

RAM: 128 Mb or higher

HDD: 30 MB for install S/W, additional space for MP3 store

USB: More than one port.

Highly recommended: Intel and VIA USB Host Controller

Sound Card: No Sound Card needed (D-Vinyl H/W has dual USB SoundCard)

Graphic Card: More than 1024 x 768 resolution

DirectX: DirectX 8.1 or higher
