Product Description

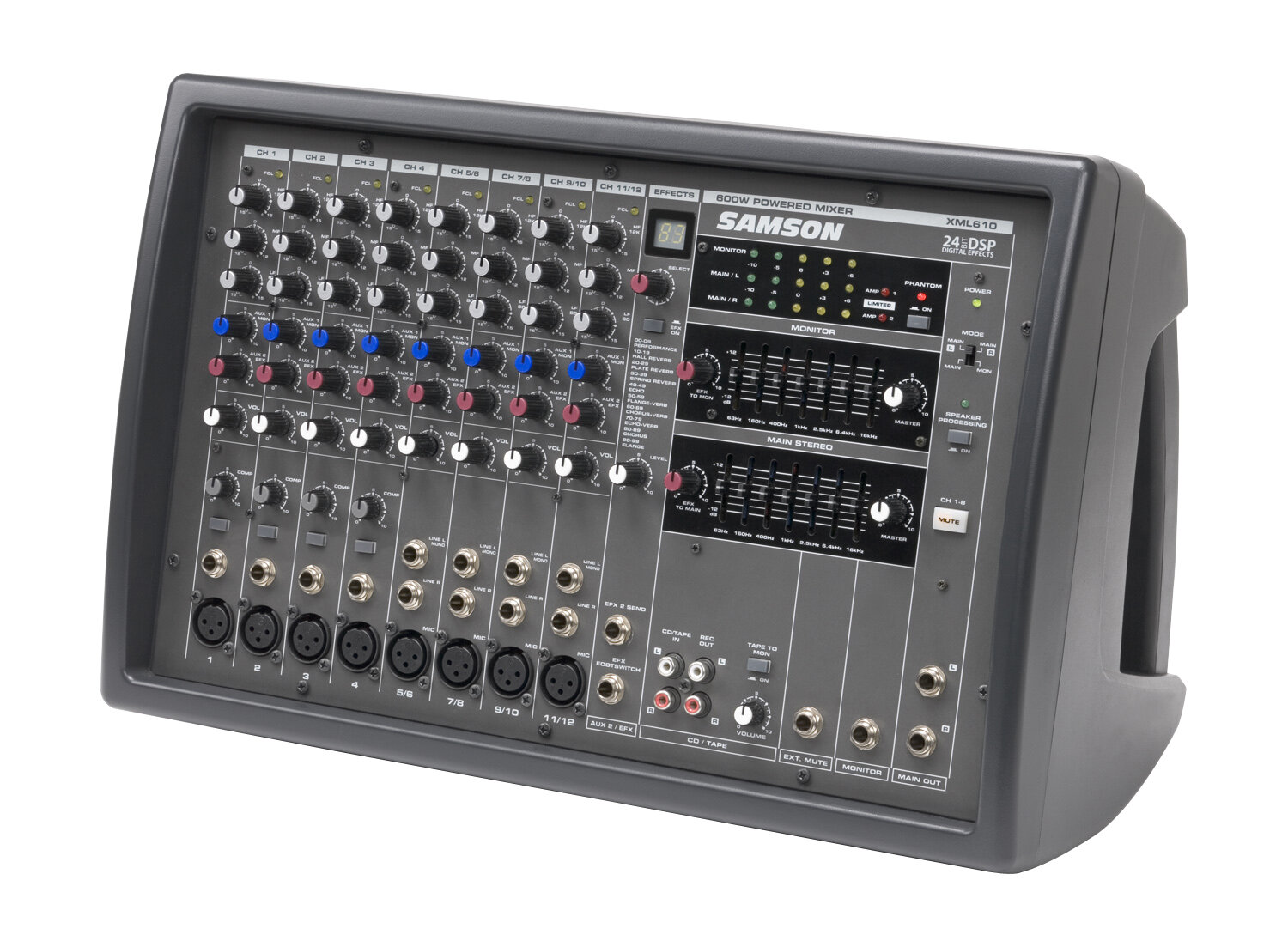

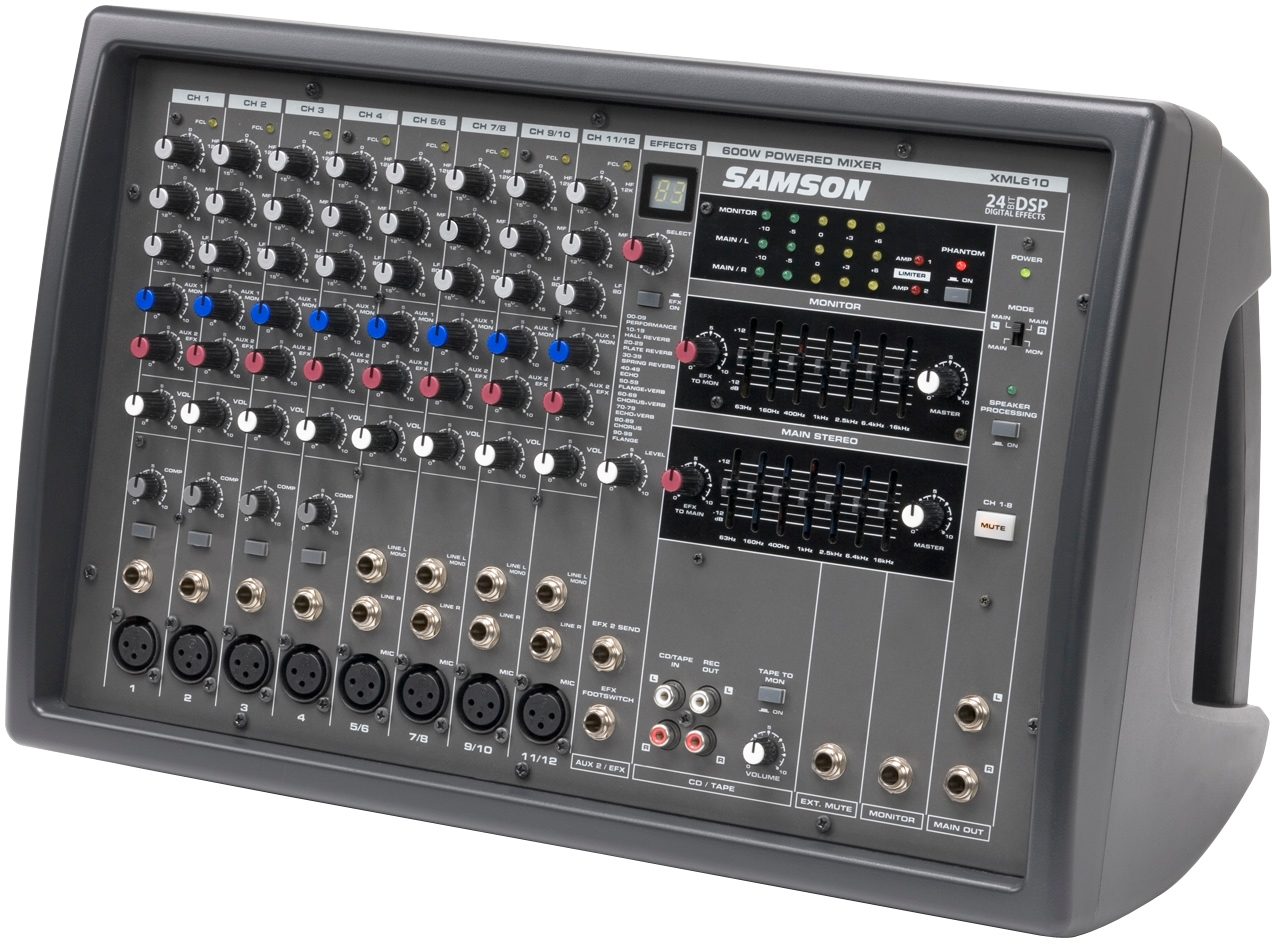

When You Need More Power... The XML610. Samson's XML610 12-Channel Stereo Powered Mixer incorporates solid professional sound reinforcement with a lightweight, Class D amplifier design to set it apart from the rest of the pack. Utilizing innovations in mixer effects, equalization and amplifier technology, the XML610 offers the optimal powering option for any bar, club or performance venue. These features make the XML610 the core of our most versatile and reliable line of powered mixers ever.

The Samson XML610 begins with 12 channels and 600 watts of power. It features built-in studio-quality 24-bit DSP stereo effects with 100 digital presets to complement vocal and instrumental performances. It provides clean, clear sound reproduction and studio-quality processing thanks to premium low-noise mic preamps, phantom power, 3-band EQ, and DSP on each channel. The XML610 also includes variable compression on mono channels and channel feedback detection. In addition, the system employs 7-band graphic EQ on the main and monitor outputs. Lastly, the XML610 comes equipped with 1/4-inch, as well as Speakon, speaker outputs.

The XML610 is constructed with a rugged, high impact polypropylene enclosure, with two convenient carry handles for effortless transport. Also, thanks to a clever kickback design, you can tilt the unit back to see and operate its controls with increased ease.

All of these features ensure reliable performance from the XML610 night after night.

Reinforcement Has Arrived

The XML610 was designed to provide simple, full-range live sound reinforcement in a variety of applications. It guarantees you an immensely powerful, sonically pure and highly mobile sound with no hassle. Karaoke divas, singer/songwriters, DJs, and full bands can all appreciate its built-in effects, preamps, phantom power, and EQ, particularly in smaller venues where time and space for external plugins are minimal. In addition, the XML610's kickback design makes it easy to position it on stage so you can tweak your performance, as well as view and operate its controls effectively.

Listen to the Words

Take command of the boardroom podium or pulpit with the XML610. When using its 1/4-inch or Speakon speaker outputs to integrate the mixer into a PA system, the XML610 provides the perfect solution for business professionals leading any sort of presentation or house of worship applications. No matter the application (presentations, corporate events, sermons, prayer meetings, etc.), the XML610 will allow you to convey your message clearly.

Progressive Power

In addition to all students, teachers and professors utilizing the XML610 in some of the same circumstances as business professionals (presentations, educational events), the system possesses some functions unique to music education. The unit is ideal for reinforcing educational ensembles. Also, the XML610 can also make the playback, analysis, and appreciation of recorded music far more interactive and educational.

Pleasure In Portability

Beyond producing impeccable sound reinforcement, XML610's elements of portability make it ideal for countless recreational uses. Outdoor functions pose no problem whatsoever for the XML610. Block parties, sporting events, and matters of crowd control now have a more practical, and still extremely portable mixer option.

So when you need more power, the XML610 12-Channel Stereo Powered Mixer is the most versatile and reliable powered mixer available.

Features

- 12-channel, 600 watt stereo powered mixer

- Lightweight Class-D amplifier design

- Studio-quality 24-bit DSP stereo effects with 100 selectable presets

- Low-noise mic pre-amps, phantom power, 3-band EQ, DSP on each channel

- Variable compression on mono channels

- Channel feedback detection

- 7-band graphic EQ for both the main and monitor outputs

- 1/4-inch and Speakon speaker outputs

zZounds is an authorized dealer of Samson products.

- Rated Output power: 2 x 300W at 4? @0.1% THD at 1KHz

- Frequency response:

- 20Hz~20KHz+/-0.7dB@1W Output into 8? (AMP OUT)

- 20 Hz~20KHz+/-0.4@+4dB Output into 10k? (MAIN OUT, MONITOR OUT, AUX 2 SEND)

- Total Harmonic Distortion:

- Less than 0.06%@20Hz~20KHz, 150W output into4? (AMP OUT)

- Less than 0.1%@20 Hz~20KHz+14dB output into 10K? (MAIN OUT, MON OUT, AUX 2 SEND

- HUM & Noise: -112dB equivalent input noise

- (Average, RS+150?): -95dB residual output noise (MAIN OUT, MONITOR OUT, AUX 2 OUT)

- (with 22Hz~22KHz BPF): -79dB (MAIN OUT, MONITOR OUT) Master level control at maximum, all channel level control at minimum -79dB (AUX 2) Master level control at maximum, all channel level controls at minimum.

- Maximum Voltage Gain:

- 36dB CH IN (MIC,XLR ) to MAIN OUT, MONITOR OUT

- 42dB CH IN (MIC) to AUX 2 OUT

- 18.2dB CH IN (MIC) to REC OUT

- 26dB MONO CH IN (LINE) to MAIN OUT, MONITOR OUT

- 16dB ST CH IN (LINE) to MAIN OUT, MONITOR OUT

- 26dB AUX IN to MAIN OUT

- 30dB TAPE IN to MAIN OUT

- Crosstalk 1KHz: 70dB adjacent input, 70dB input to output

- Input Channel Equalization:

- HIGH 12KHz shelving (+/- 15dB Maximum)

- MID 2.5KHz peaking (+/- 12dB Maximum)

- LOW 80Hz shelving (+/- 15dB Maximum)

- Meters: 5 POINT LED METERS ( -10, -5, 0, +3, +6dB)

- Graphic Equalizer: 7 bands (63, 160, 400, 1K, 2.5K, 6.4K, 16KHz)

- Internal DSP Effects: 24 BIT - 10 Presets each

- CLIP Indicators: Turn on: THD> 0.5%

- Foot Switch: DIGITAL EFFECT MUTE: ON/OFF

- Power Requirement: 100V-240V, 50/60Hz

- Power Consumption: 800W, full power
