This product is no longer available at zZounds.
Shop our website for related products:
(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

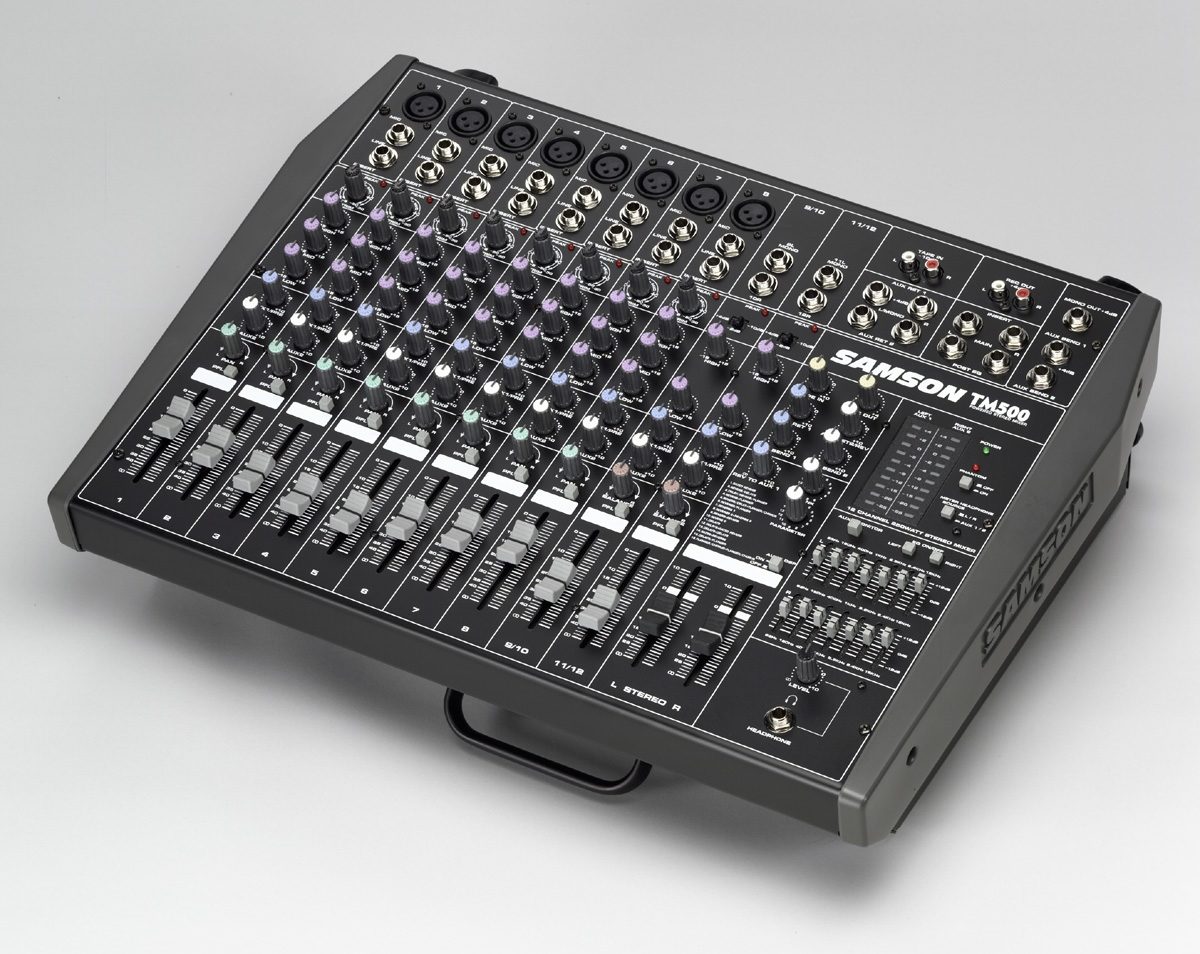

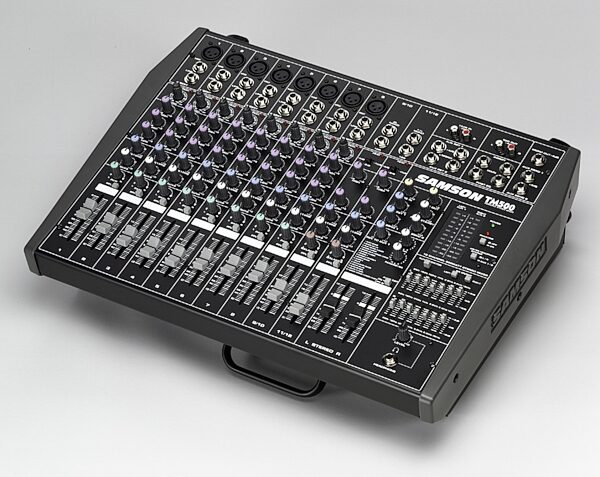

Samson TM500 Powered Mixer
Features 8 mono channels (3-band EQ), and 2 stereo channels (2-band EQ).
Our 30-Day 100% Satisfaction Guarantee applies on this item. Buy it, and if it isn't just right for you, return it!
About This Product!
Description
Docs
The TM500 powered mixer is an "all-in-one" package designed for small clubs, theaters, monitoring, and other reinforcement applications. It comes fully loaded with 2 stereo channels and 8 mono channels, for a total of 12. Onboard DSP processing provides 16 effects including reverbs and delays with up to 256 different variations. Tone shaping is provided by 3-band channel EQ and a dual 7-band master graphic EQ. Built to last with a stable, fan-cooled bipolar design.
Features
Ý Multifaceted powered mixer in an easy-to-use table-top/rack-mountable design
Ý 2 stereo channels
Ý 8 mono mic/line channels
Ý Stereo power amp produces 250 watts per side into 4 ohms
Ý Built-in DSP section with up to 256 effect variations
Ý Dual 7-band graphic EQ
Ý 3-band EQ on mono channels
Ý 2-band EQ on stereo channels
Ý 2 Aux sends per channel
Ý 2 Aux returns
Ý Fan-cooled bipolar design
Frequency Response: (± 1 dB) 20 Hz - 20 kHz
Total Harmonic Distortion: (20 Hz to 20 kHz, trim minimum) 0.02%
Maximum Voltage Gain
Mic to Post EQ Main Insert L,R +64 dB
Mic to Aux Send 1,2 +74 dB
Mic to Mono Out +54 dB
Line to Post EQ Main Insert L,R +44 dB
Stereo to Post EQ Main Insert L,R +24 dB
Aux Return to Post EQ Main Insert L,R +10 dB
Tape In to Post EQ Main Insert L,R +24 dB
Residual Noise (with DIN audio filter)
All Fader Min/Post EQ Main Insert L,R -90 dB
All VR Min/Aux Send 1,2 -90 dB
Ch Fader Min, Master Fader Max -75 dB
Equivalent Input Noise (-50 dB, Mic In pins 2,3 150 .,with DIN audio filter.) -127 dB
Crosstalk (@ 1 kHz, Trim Min.)
Channel to channel -70 dB
Input to output -70 dB
EQ Control
High (10 kHz) ±15 dB
Mid (1.8 kHz) ±12 dB
Low (100 Hz) ±15 dB
Graphic Equalizer: (63 Hz, 160 Hz, 400 Hz, 1 kHz, 2.5 kHz, 6.4 kHz, 15 kHz) ±12 dB
Phantom Power: +48 V
Signal Polarity (Phase): same as Input
Power Amp Section
Maximum Output Power: (0.5% THD @ 1 kHz) 250 W/4 ohm
Total Harmonic Distortion: (20 Hz to 20 kHz, 1/2 rated power) 0.2%
Frequency Response: (1 W/4 ohm, ±0.5 dB) 20 Hz - 20 kHz
Signal to Noise Ratio: > 100 dB
Channel Separation: 75 dB
Output Offset Voltage: ± 100 mV
General
Dimensions (W x D x H): 491 x 349 x 139mm (19.35 x 13.75 x 5.5 in.)
Weight: 36 lbs. (16.4 kg)
Power Requirements: 115 V ac 60 Hz for UL and CSA Version
Power Consumption: 1100 w
Features
Ý Multifaceted powered mixer in an easy-to-use table-top/rack-mountable design
Ý 2 stereo channels
Ý 8 mono mic/line channels
Ý Stereo power amp produces 250 watts per side into 4 ohms
Ý Built-in DSP section with up to 256 effect variations
Ý Dual 7-band graphic EQ
Ý 3-band EQ on mono channels
Ý 2-band EQ on stereo channels
Ý 2 Aux sends per channel
Ý 2 Aux returns
Ý Fan-cooled bipolar design
Technical Info
Mixer/Pre Amp SectionFrequency Response: (± 1 dB) 20 Hz - 20 kHz
Total Harmonic Distortion: (20 Hz to 20 kHz, trim minimum) 0.02%
Maximum Voltage Gain
Mic to Post EQ Main Insert L,R +64 dB
Mic to Aux Send 1,2 +74 dB
Mic to Mono Out +54 dB
Line to Post EQ Main Insert L,R +44 dB
Stereo to Post EQ Main Insert L,R +24 dB
Aux Return to Post EQ Main Insert L,R +10 dB
Tape In to Post EQ Main Insert L,R +24 dB
Residual Noise (with DIN audio filter)
All Fader Min/Post EQ Main Insert L,R -90 dB
All VR Min/Aux Send 1,2 -90 dB
Ch Fader Min, Master Fader Max -75 dB
Equivalent Input Noise (-50 dB, Mic In pins 2,3 150 .,with DIN audio filter.) -127 dB
Crosstalk (@ 1 kHz, Trim Min.)
Channel to channel -70 dB
Input to output -70 dB
EQ Control
High (10 kHz) ±15 dB
Mid (1.8 kHz) ±12 dB
Low (100 Hz) ±15 dB
Graphic Equalizer: (63 Hz, 160 Hz, 400 Hz, 1 kHz, 2.5 kHz, 6.4 kHz, 15 kHz) ±12 dB
Phantom Power: +48 V
Signal Polarity (Phase): same as Input
Power Amp Section
Maximum Output Power: (0.5% THD @ 1 kHz) 250 W/4 ohm
Total Harmonic Distortion: (20 Hz to 20 kHz, 1/2 rated power) 0.2%
Frequency Response: (1 W/4 ohm, ±0.5 dB) 20 Hz - 20 kHz
Signal to Noise Ratio: > 100 dB
Channel Separation: 75 dB
Output Offset Voltage: ± 100 mV
General
Dimensions (W x D x H): 491 x 349 x 139mm (19.35 x 13.75 x 5.5 in.)
Weight: 36 lbs. (16.4 kg)
Power Requirements: 115 V ac 60 Hz for UL and CSA Version
Power Consumption: 1100 w
What Our Customers Say About zZounds
"Super affordable gear. Great and affordable shipping... mine was free!" - customer on October 27, 2009
Samson TM500 Powered Mixer Reviews
8 out of 10
"Excellent Value...Good Product"
The person who couldn't get enough volume out of this either needs to check his set up or find out what is wrong...I have (2) yamaha SIIV-15 speakers and (2) 10" monitors hooked to mine and I can sound almost anywhere. Sounding for 500 people is no problem at all.
In fact I am thinking about expanding and adding an additional (2) 12" speakers to the set up for outdoor use.
The faders on my unit are very smooth. The controls for the effects can be a little confusing, be sure to go slow in learning how to use it or you can over do the effects and get a muddy sound. When set up propperly it has great clearity, good volume, and lots of versatility. Hmmm... mine didn't come with a cover. I did get the gig bag made by samson and am very pleased with it.
Final annalysis...I'm glad I bought it, if I had it to do over again....I would without reservation.
In fact I am thinking about expanding and adding an additional (2) 12" speakers to the set up for outdoor use.
The faders on my unit are very smooth. The controls for the effects can be a little confusing, be sure to go slow in learning how to use it or you can over do the effects and get a muddy sound. When set up propperly it has great clearity, good volume, and lots of versatility. Hmmm... mine didn't come with a cover. I did get the gig bag made by samson and am very pleased with it.
Final annalysis...I'm glad I bought it, if I had it to do over again....I would without reservation.
Submitted: 06/22/2002
Style of Music: Gospel group....using pre-recorded music...5 singers
9 out of 10
"Yes, good overall quality, excellent value, very good manual"
Solid and heavy, could use better quality volume slides, good layout of controls, comes with rack mounts brackets, fan could be a little quieter, should come with detachable cover for travel, excellent value.
Used it with two Yamaha Club IV 12" mains and two 10" monitors in a 30 x 80 meeting room, power was adequate...could use another 25-50 watts per channel capacity. Good product..would buy again.
Used it with two Yamaha Club IV 12" mains and two 10" monitors in a 30 x 80 meeting room, power was adequate...could use another 25-50 watts per channel capacity. Good product..would buy again.
Submitted: 12/12/2000
Style of Music: Christian (Praise and Worship)
