Samson UHF Series One AT831 Wireless Lavalier System

Samson designed the UHF Series One to give everyone the highest level of wireless performance at affordable prices. Fully professional, the receiver features a True Diversity design with 2 independent receivers, S.A.W. (Surface Acoustic Wave) technology, and built-in, tuned, and molded antennas for the most stable RF reception possible.The UR1 receiver front panel includes an RF level meter, Squelch control, Peak audio LED, and Power switch. The system also features a super-compact "beeper-size" beltpack and a 3-segment LED "battery-life" meter on all transmitters that indicates when the battery is running low.

Patent-pending direct Phase-Lock Loop transmitter technology "locks" in the signal to ensure stable transmission. UHF Series One is available with the popular Samson Qmic vocal and headset mics and a variety of other mic elements. It also has both a balanced XLR output (mic/line switchable) and unbalanced 1/4 in. output. Series One. UHF wireless for the next millenium — now.

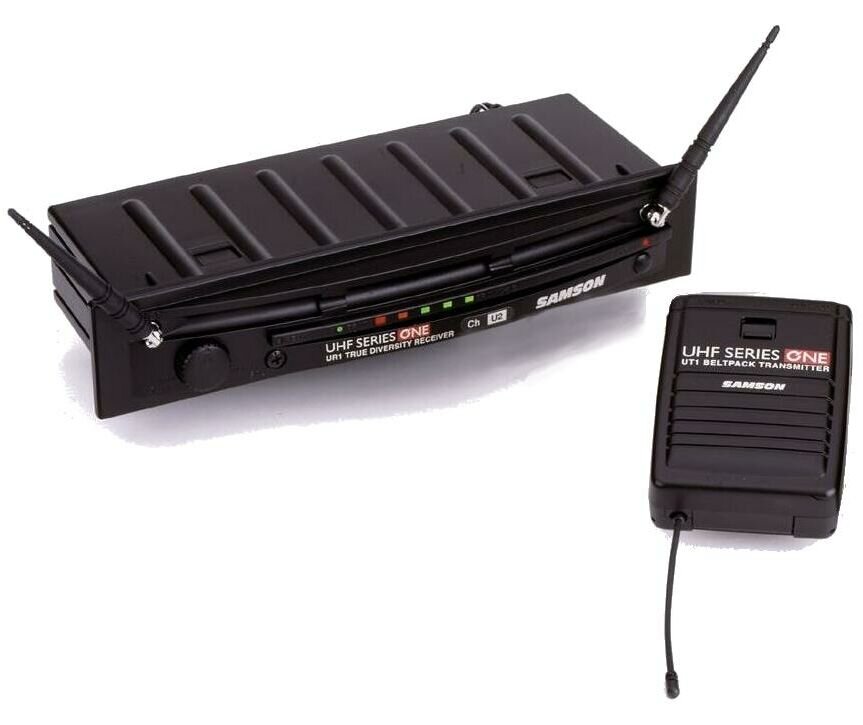

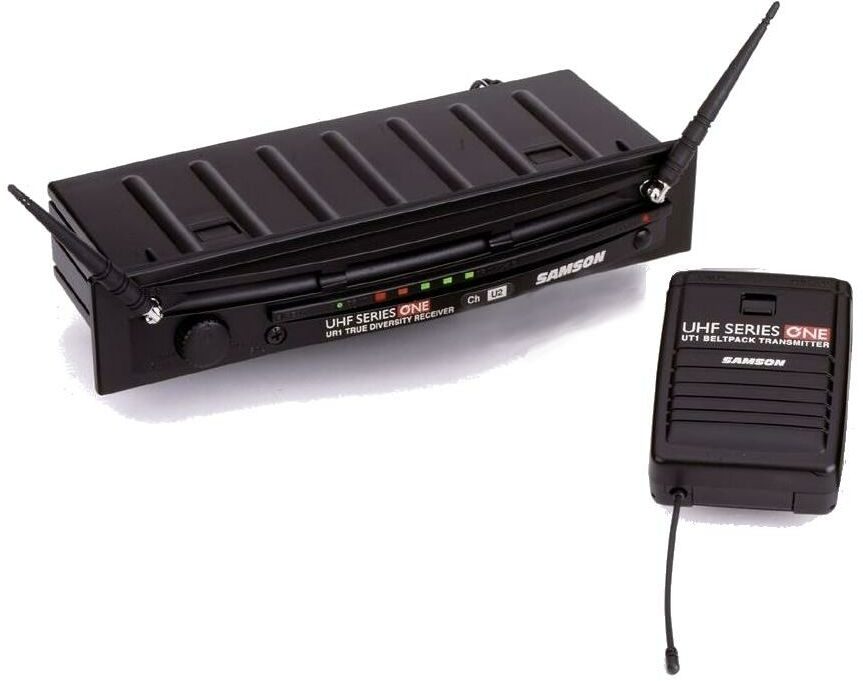

System Includes: UR1 True Diversity Receiver, UT1L Beltpack Transmitter, and Audio Technica AT-831 Lavalier Mic with Detchable P3 Connector.

Technical Info

System Includes: UR1 True Diversity Receiver, UT1L Beltpack Transmitter, and Audio Technica AT-831 Lavalier Mic with Detchable P3 Connector.

Frequency Type: F3

Modulation Type: FM

Noise Reduction Type: Compander

Distance: 300 ft.

Transmitters: (UH1, UT1L, UT1G)

Oscillation Type: Direct PLL

Pre-emphasis: 50 µsec

Antenna
UH1: 1/4 Wave Integral Antenna

UT1L/UT1G: 1/4 Wave Length Wire (Pig Tail)

Input (UT1L): TB3M QG (Mini XLR) Connector

Maximum Input Level: 3 V p-p

Battery: Duracell MN 1604 9-volt alkaline

Switches/Controls: Power On/Off, Audio On/Off

UH1: AF Level

UT1L/UT1G: AF Level

Display (LED): Battery Low/Mid/High (<5.3V/5.3-7V/7V)

Operating Voltage: 9 Volts +20%/-40%

Current Consumption: 47 mA

RF Power: 10 mW

Frequency Stability: + 20 kHz

Spurious Ratio: 2.5 nW

Deviation: 20 kHz (16.5 kHz-23.5 kHz)

T.H.D. (Typical): 0.5%

AF Frequency Response: 50 Hz - 15 kHz (± 3 dB overall)

Battery Life: 12 Hours

Receiver: (UR1)

Oscillation Type: Crystal Controlled

D-emphasis: 50 µsec

IF Frequency: 10.7 MHz

Antenna: 1/4 Wavelength Rod

In/Out: DC Inlet, Balanced Output, Unbalanced Output

Display (LED): Antenna A/B (Green), Power On (Red), Peak (Yellow), RF Level (5 pc)

Level Controls: Volume, Squelch

Operating Voltage: 12 Volts + 10 %

Current Consumption: 170 mA (at all LED lights)

Receiving Frequency Range: 801 - 805 MHz

Sensitivity: 18 dBµ @ THD 2%

Squelch Sensitivity: 0 - 40 dBµ (Adjustable)

Selectivity: ± 150 kHz (AF Out Ratio -60 dB)

S/N Ratio (Overall): 90 dB (with IHF-A filter)

Residual Noise: 90 dBv (with IHF-A filter)

Band Mute: ± 50 kHz / ± 100 kHz (RF IN: 46 dBu EMF)

AF Frequency Response: 50 Hz - 15 kHz (± 3 dB overall)

Audio Output Level - Unbalanced: 0 dBv

Audio Output Level - Balanced: -20 dBm (Line), -40 dBm (Mic) Switch Selectable

Audio Output Impedance/Unbalanced: 5 k Ohms

Audio Output Impedance/Balanced: 600 Ohms

Dimensions:
Receiver — with antennas (H x W x D): 42 x 216 x 86mm (1.7 x 8.5 x 3.4 in.)

Transmitter (UT1L/UT1G) - (W x D x H): 2.32 x 3.22 x .942 (59 x 81 x 244mm)

Transmitter (UH1): varies with mic type

Weight:
Receiver (including antennas): 9.2 oz. (261 g)
Transmitter (UT1L/UT1G): 3.1 oz. (88 g)
Transmitter (UH1): varies with mic type
