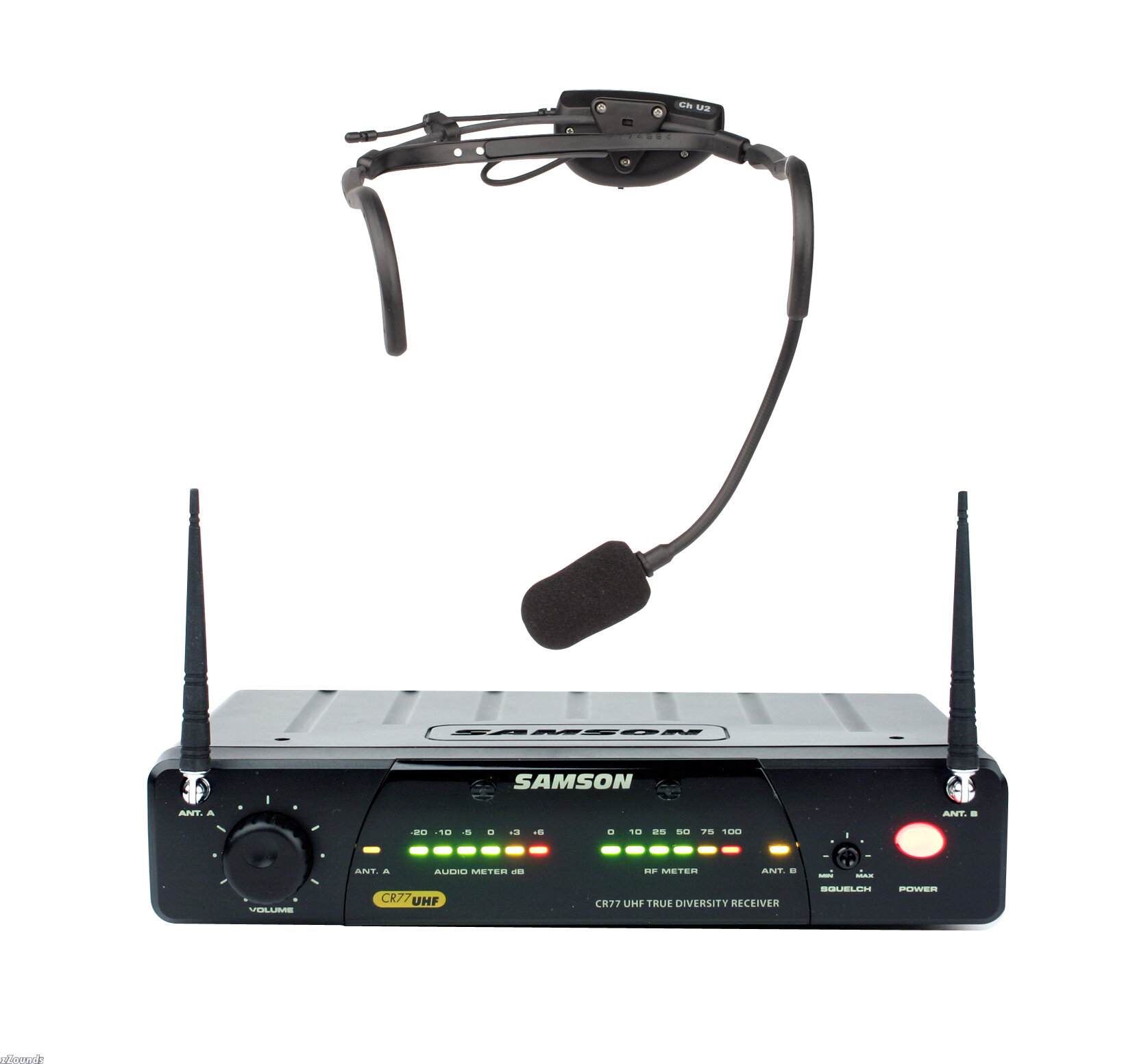

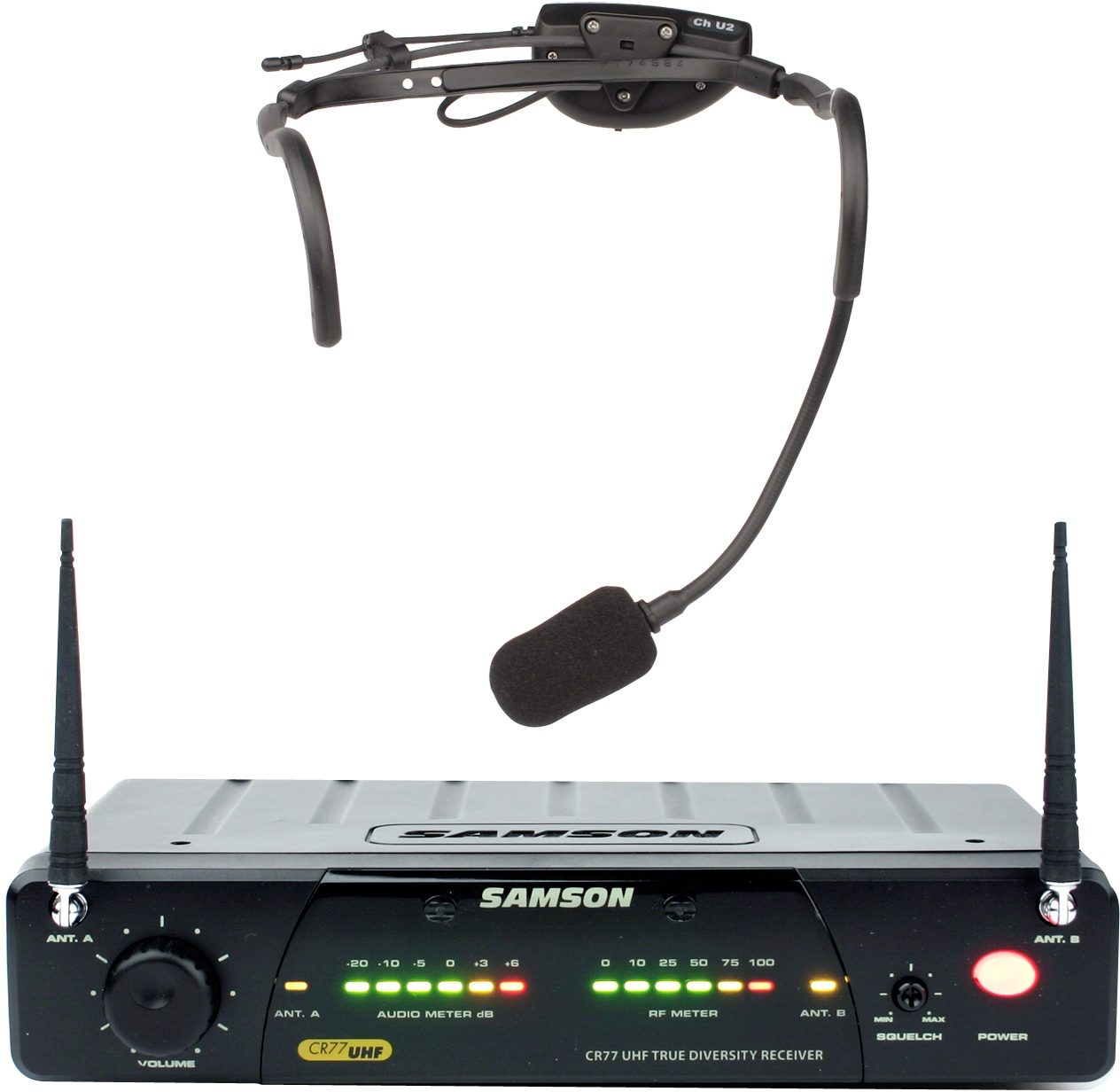

Samson Airline 77 UHF TD Wireless with QV10E Headset Transmitter

Product Description

AirLine 77 is Samson's version of the AirLine series that features micro-technology transmitters. Traditional wireless systems consist of belt-packs and wires that hinder the performer. With AirLine, you get a true wireless system because there are no belt-packs and no cables, allowing the user complete freedom.

The AirLine headset transmitters feature the Samson QV Vocal microphone elements. QV headsets were designed to go around the back of your head rather than over the top. This allows the transmitter to be attached directly to the headband, out of the way and completely unobtrusive, while being comfortable and secure during performances or exercise routines.

All of the AirLine transmitters operate on inexpensive and lightweight AAA batteries that offer 14 hours of operation on a single battery.

The CR77 true-diversity half-rack UHF receiver works flawlessly with all AirLine UHF transmitters. The CR77 receiver features a front panel display with large multi-segment audio level and RF level LED meters, and a large rotary volume knob allows easy adjustment of audio output. The synthesized PLL frequency control circuitry keeps the signal locked and true while dual tuned molded antennas with LEDs monitor the true-diversity operation. The rear panel features balanced XLR and un-balanced 1/4-inch outputs allowing flexible connection options. Two CR77 receivers can be rack mounted together in a single space rack adapter available as an added accessory.

CR77 Receiver

The heart of Airline 77 is the CR77 Receiver. This true-diversity half-rack unit with PLL frequency control works with all of the Airline transmitters. Rugged, durable and crystal clear with incredible range. UHF (Ultra High Frequency) means clearer frequencies with less interference.

AH1 Headset Transmitters

For on stage performance, public speaking, DJs, health club applications. Samson makes a comfortable, lightweight headset mic with no belt pack. QV Performance The highest performance level attainable from an element of this size and type. Designed with music performance in mind.

The QV headset mic allows drummers, keyboardists and other musicians to perform "hands free" vocals without affecting their playing technique. It produces a full-range sound with a enough definition to ensure that every word is heard clearly, even at higher volume levels.

Consumer Alert
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure. zZounds is an authorized dealer of Samson products.

Channel Frequencies
- Channel N1: 642.375 MHz
- Channel N2: 642.875 MHz
- Channel N3: 644.125 MHz
- Channel N4: 644.750 MHz
- Channel N5: 645.500 MHz
- Channel N6: 645.750 MHz

Receiver (CR77)
- Type of Reception: Single Superheterodyne, True Diversity
- Oscillation Type: Synthesized PLL Frequency Control
- D-emphasis: 50 microsec
- IF Frequency: 10.7 MHz
- Antenna: 1/4 Wavelength Rod
- In/Out: DC Inlet, Balanced Output, Unbalanced Output
- Display (LED): Antenna A/B (Green), Power On (Red), Peak (Yellow), RF Level (5 pc)
- Level Controls: Volume, Squelch
- Operating Voltage: 12 Volts + 10 %
- Current Consumption: 160 mA (at all LED lights)
- Receiving Frequency Range: 801 - 805 MHz
- Sensitivity: 18 dBu @ THD 2%
- Squelch Sensitivity: 0 - 40 dBu (Adjustable)
- Selectivity: +/- 150 kHz (AF Out Ratio -60 dB)
- S/N Ratio (Overall): 90 dB (w/ IHF-A fi lter)
- Residual Noise: 90 dBv (w/ IHF-A fi lter)
- Band Mute: +/- 50 kHz / +/- 100 kHz (RF IN: 46 dBu EMF)
- AF Frequency Response: 50 Hz - 15 kHz (+/- 3 dB overall)
- Audio Output Level - Unbalanced: 0 dBv
- Audio Output Level - Balanced: -20 dBm (Line), -40 dBm (Mic) Switch
Selectable
- Audio Output Impedance/Unbalanced: 5 k Ohms
- Audio Output Impedance/Balanced: 600 Ohms
- Dimensions: 8.5 in. (w) x 1.75 in. (h) x 4.6 in.(d) 216 mm (w) x 44 mm (h) x 116 mm (d)
- Weight: .75 lb / 340 g

QV Headset
- Sophisticated condenser mic element
- Hypercardioid pattern helps eliminate feedback
- 50 Hz to 18 kHz frequency response for a balanced, full-range sound
- Withstands high sound pressure levels
- Lightweight and comfortable design
- Adjustable metal gooseneck for easy mic positioning
- Locking detachable P3 connector reduces cable/connection problems
- PM4 phantom power adapter included

Dimensions and Weight in Packaging

Frequency 642.375

Shipping Weight: 1 lbs

Shipping Dimensions: 12 x 11 x 4 in

Frequency 642.875

Shipping Weight: 1 lbs

Shipping Dimensions: 12 x 11 x 4 in

Frequency 644.125

Shipping Weight: 1 lbs

Shipping Dimensions: 12 x 11 x 4 in

Frequency 644.750

Shipping Weight: 1 lbs

Shipping Dimensions: 12 x 11 x 4 in

Frequency 645.500

Shipping Weight: 1 lbs

Shipping Dimensions: 12 x 11 x 4 in

Frequency 645.750

Shipping Weight: 1 lbs

Shipping Dimensions: 12 x 11 x 4 in
