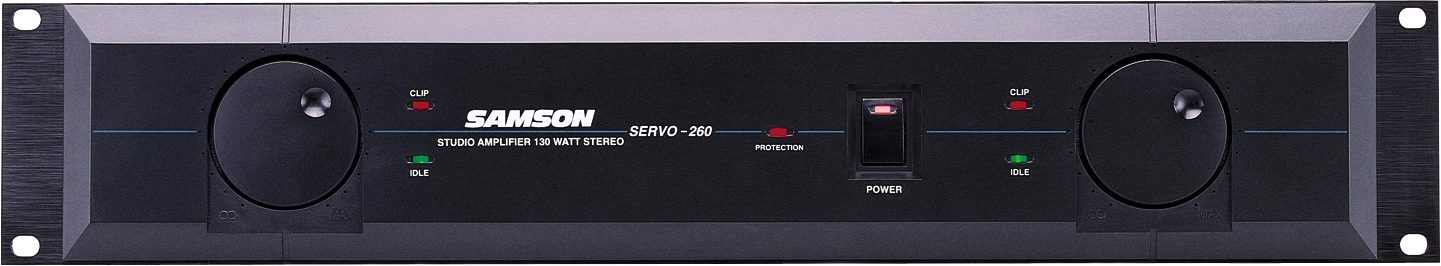

A mainstay of the popular Servo amplifier line, the 260 can be used to power near field monitors, passive headphone distribution systems in the studio, and small live sound reinforcement setups. It is also a great choice for stereo keyboard or guitar amp setups with external mixer or preamps or amplifying a large screen TV or video system. The Servo 260 is dedicated to transparent audio, consistent performance, and the rugged construction you need from a professional amplifier.
Features
High-performance 2-space rackmount servo controlled stereo amp with studio-quality sound.
130 watts per channel into 4 ohms.
20 Hz to 50 kHz frequency response for enhanced sonic transparency.
Discrete Bipolar circuit design.
DC Servo control.
Relay-controlled "power-on" circuitry prevents speaker "thumps."
Electronically balanced 1/4 in. TRS inputs.
Unbalanced RCA inputs. 1/4 in. and push-spring terminal outputs.
Front panel Clip and Idle LEDs on both channels. Protection and Power LEDs.
Independent left/right input level controls with 41 detents.
Convection-cooled (no fan) provides quiet performance in critical applications.
All-steel chassis with lightweight anodized aluminum heat sink and Black matte finish.
Technical Info
Rated Output Power (1 kHz): 130 W into 4 per channel; 90 W into 8 per channel
Signal-to-Noise Ratio: 103 dB
Frequency Response: 20 Hz to 50 kHz
THD+N, 20 Hz to 20 kHz: < 0.03%
Input Sensitivity: 0 dBm to achieve rated power (Level control set to maximum)
Crosstalk (at 7 kHz sine wave): 85 dB typical
Power Requirements: 115 Vac x 50/60 Hz
Power Consumption (at full power): 490 W (115 Vac); 490 W (230/240 Vac)
Dimensions (H x W x D): 3.5 x 19 x 9.5 in. (88 x 482 x 240mm)
Weight: 17.6 lbs. (8 kg)
