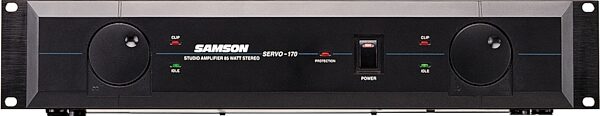

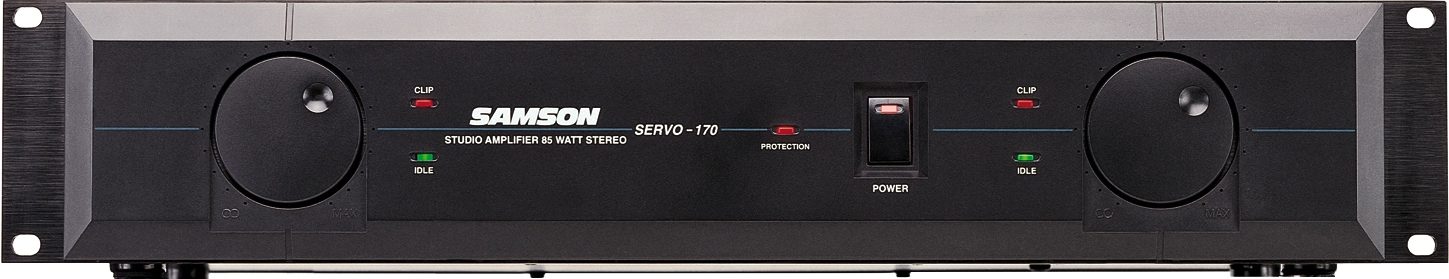

Samson Servo 170 Power Amplifier

A versatile performer in a compact package, the popular Servo 170 is excellent for near field monitoring, stereo midrange/high frequency bi-amping applications, and low power distribution systems. It also works effectively for powering vocals and acoustic instrument setups in small clubs, restaurants, and bars. Like all of the Servo amps, the 170 is designed to ensure quiet, reliable performance every time you use it.

Features
Servo-controlled stereo power amp in 2 rack spaces

85 watts per channel into 4 ohms

Wide, linear 20 Hz to 50 kHz frequency response for superior audio performance

Relay-controlled power-on circuitry prevents speaker in. thumps in.

Front-panel Clip and Idle LEDs for both channels

Balanced 1/4 in. TRS inputs

Unbalanced RCA inputs

Circuitry protection against overheating and over-current

1/4 in. and push-spring terminal outputs

Independent left/right input level controls with 41 detents

Bipolar amplifier design

Convection-cooled design for quiet performance

Technical Info

Rated Output Power (1 kHz): 85 W into 4 .per channel, 60 W into 8 .per channel

Signal-to-Noise Ratio: 103 dB

Frequency Response: 20 Hz to 50 kHz

THD+N, 20 Hz to 20 kHz: < 0.01%

Input Sensitivity: 0 dBm to achieve rated power (Level control set to maximum)

Crosstalk (at 7 kHz sine wave): 85 dB typical

Power Requirements: 115 Vac x 50/60 Hz

Power Consumption (at full power): 330 W (115 Vac)
330 W (230/240 Vac)

Dimensions: 3.5 (h) x 19 (w) x 9.5 (d)
88 mm (h) x 482 mm (w) x 240 mm (d)

Weight: 13.7 lbs. / 6.2 kg
