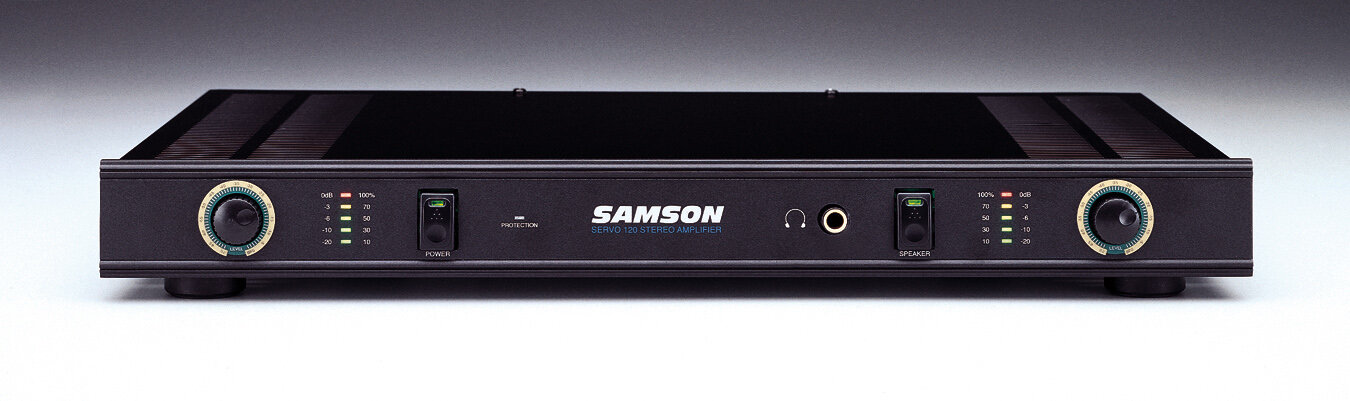

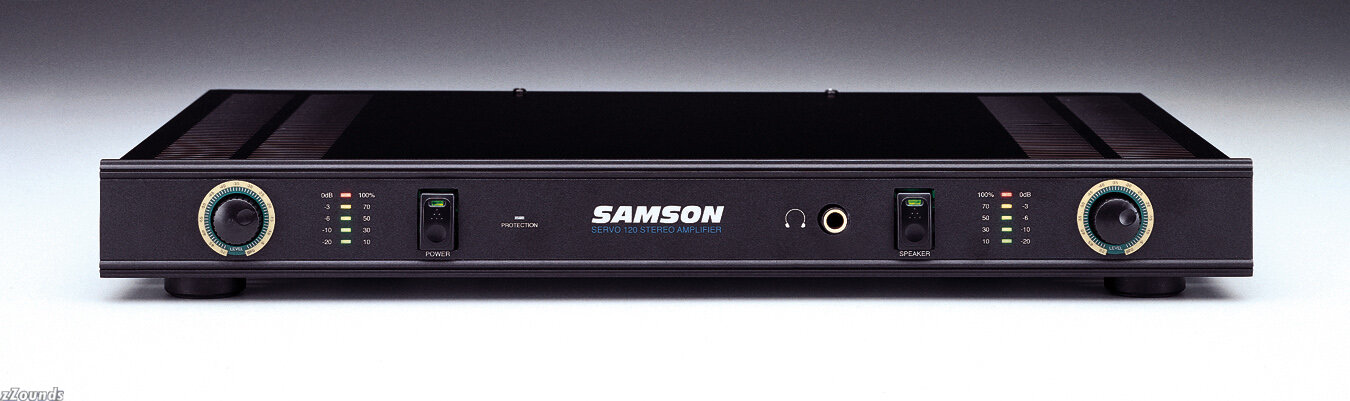

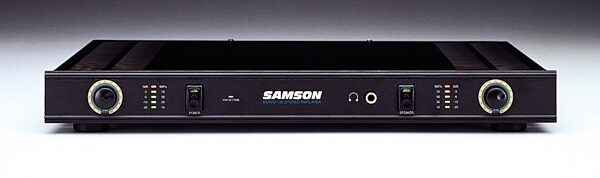

Samson Servo 120 Power Amplifier

When you're looking for a power amp, you want the strong, silent type. That's Samson - a lot of power without a lot of noise. The Servo120 is a one-rackspace, servo-controlled power amplifier that's ideal for powering reference monitors. It also has a headphone jack with a speaker-disable switch, so you can record or work on your mixes all night long without losing your lease!

But just because it's the perfect reference amp for a project studio doesn't mean that's all you can do with it - the Servo120 is also a perfect fit for live sound and home theater situations.

Whatever the application, the 120's bipolar design and toroidal transformer power supply ensure reliability and quiet performance. You've got 60 watts per channel with individual Left and Right level controls. 5-segment, 3-color LEDs let you know the levels are right. The frequency response is wide and flat, for accurate sound reproduction. And the Servo 120 is convection cooled, which means no fan to make noise or break down.

Technical Info

Servo-controlled stereo power amplifier in one rack space

60 watts per channel into 4 ohms (stereo); 120 watts into 8 ohms (bridged mono mode)

Wide, flat frequency response of less than 10 Hz to plus 100 kHz (-3 dB) for high-quality audio

Front panel headphone jack with speaker-disable switch

Individual left and right Level controls with 5-segment, 3-color LED meters

Balanced 1/4" TRS inputs and unbalanced RCA inputs on gold-plated connectors to avoid tarnish and improve conductivity

Push-spring terminal outputs

Relay-controlled power-on circuitry prevents speaker "thumps"

Convection-cooled design eliminates fan noise and maintenance problems

Bipolar design and toroidal transformer power supply

Overheating and over-current protection circuitry
