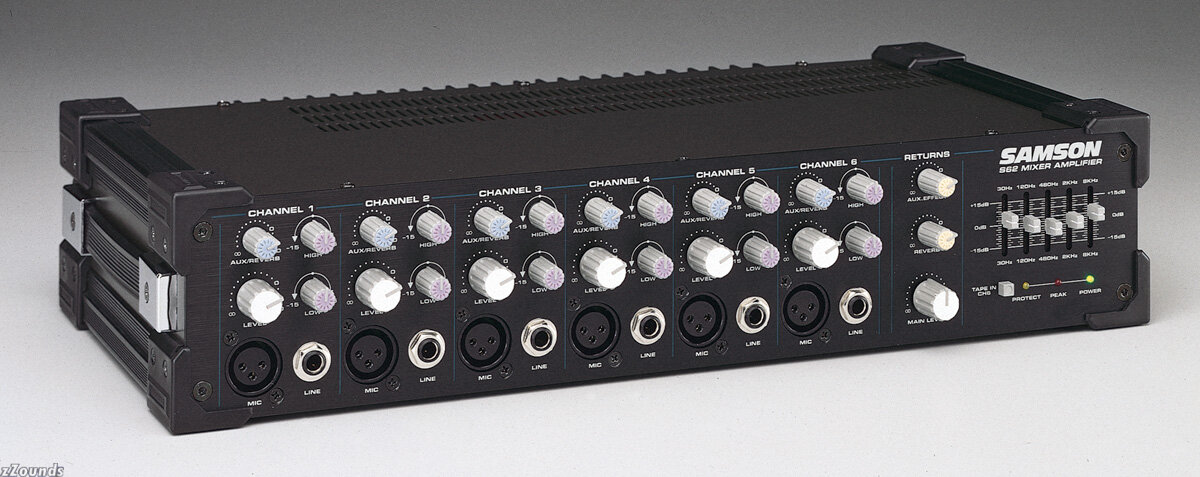

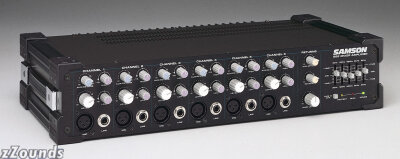

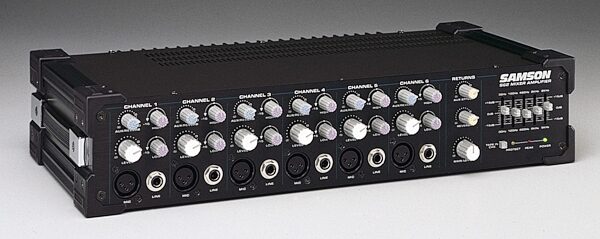

* Compact 2-space rackmount mixer amplifier that fits seamlessly into a wide range of applications.
* Six electronically balanced XLR mic / line input channels.
* Efficient power amp section delivers 150 watts into 4 ohms.
* Internal 3-spring reverb to enhance program material.
* One Aux / reverb send.
* One Aux and one reverb return with front panel level controls.
* 5-band graphic EQ to "tune" the S62 to particular room environments.
* 2-band EQ on each channel.
* Global 48V phantom power.
* Master main level control.
* Master protection, peak, and power LEDs.
* Master main level control.
* 2 speaker outputs.
* Tough reinforced corners and carry handles for easy portability and rack ears for rackmounting.
Technical Info
Mixer/Preamp Section
Total harmonic distortion (with 30 kHz LPF):
Mic in to preamp out: < 0.05%
Line in to preamp out: < 0.03%
Aux return to preamp out: < 0.03%
Signal to noise ratio (with 30 kHz LPF, unity gain):
Mic input (-50 dBu): 67 dB
Line input (-10 dBu): 70 dB
Maximum voltage gain (1 kHz):
Mic in to preamp out: 54 dB
Line in to preamp out: 24 dB
Tape in to preamp out: 24 dB
Aux return to preamp out: 10 dB
Residual noise (with 30 kHz LPF, VR min):
Preamp out: 70 dBu
Tone controls: High (10 kHz): ± 15 dB
Low (100 Hz): ± 15 dB
Graphic equalizer (30, 120, 480 Hz, 2, 8 kHz): ± 15 dB
Peak LED: 3 dB before clipping
Tape input sensitivity (-10 dB): 300 mV
Crosstalk (1 kHz, EQ flat):
Ch vs. Ch: 76 dB
Input vs. output: 78 dB
Power Amp Section
Rated output power (1 kHz): 150 W into 4 .
Total harmonic distortion (with 30 kHz LPF): < 0.1%
Signal to noise ratio (with 30 kHz LPF): 95 dB
Frequency response (±3 dB): 20 Hz - 50 kHz
Maximum voltage gain (1 kHz): 36 dB
Residual noise (VR min): 70 dB typical
Idle current (across the 0.47emitter resistor): < 20 mA
DC offset voltage: 0 ± 50 mV
General
Dimensions: Height 88mm x Width 480mm x Depth 230mm
Weight: 17.6 lb. (8 kg.)
Power requirements: 115 Vac Ý 50/60 Hz
Power consumption (1/8 power): 134 W (115 Vac)
