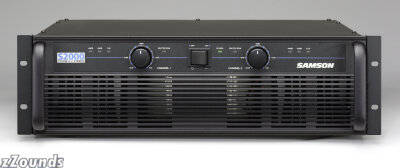

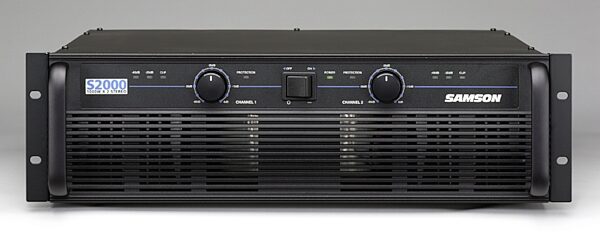

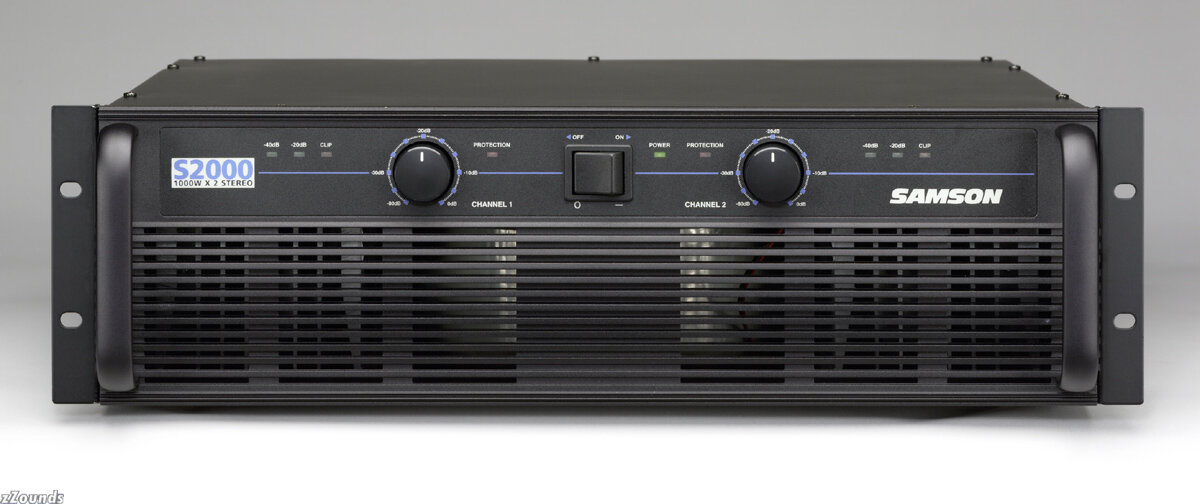

The rugged new S2000 stereo amp from Samson delivers plenty of power, reliability, and protection in live sound situations, commercial installations, and PA situations. It produces 1000 watts per channel into 4 ohms (stereo mode) and 2000 watts into 8 ohms (bridged mono).
Other features include a wide frequency response; dual temperature-sensitive, speed-controlled fans; and a bipolar design for consistent performance. The S2000 also includes full front-panel control, metering, and protection capability along with a wide range of interconnect options.
Features
Roadworthy and reliable stereo and mono-bridgeable power amplifier
1000 watts per channel into 4 ohms (stereo mode) and 2000 watts into 8 ohms (bridged mono)
Linear frequency response for exceptional audio performance
Dual temperature-sensitive, speed-controlled fans
Bipolar design for stable performance
Front panel input level controls with 41 detents
3-segment output LED metering
Dual protection LEDs and relay-controlled outputs linked to protection LEDs
Banana jack outputs with Speakon(TM) connectors
XLR inputs and locking TRS inputs
Parallel outputs to "daisy-chain" a number of amps together
AC mains: IEC and Neutrik(R) Powercon connector included
Technical Info
Rated Output Power, per channel (1 kHz, THD 0.1%, Both Ch Drive)
Stereo/Parallel modes
per channel (into 4 ohms) 1020 W
per channel (into 8 ohms) 685 W
Bridged mode
per channel (into 8 ohms) 2025 W
Frequency Response (0 dB, +0.5, -1 dB) 10 Hz - 50 kHz
Total Harmonic Distortion:
(1/2 power @ 20 Hz - 20 kHz, Both Ch Drive into 4 ohms)
0.016%
Dynamic Range: 98 dB
Channel Separation: (8 ohm, 335 W, 1 kHz) 85 dB
Residual Noise (0 dB ref. = .775 VAC rms, 22 Hz - 22 kHz)
(Att. Min.) -69.4 dBu
(Att. Max.) -63.8 dBu
Voltage Gain (4 ohm, 1 kHz) 38.25 dB
DC Offset Voltage: 0 ± 100 mV
Damping Factor: More than 200
Indicators:
Clipping LED 1 kHz THD 0.1%
Signal LED Right -20 dB ± 2 dB
Signal LED Left -40 dB ± 2 dB
Dimensions (W x D x H): 19 x 9.75 x 5.25 in. (482 x 247 x 133.35 mm)
Weight: 53 lbs. (24 kg)
