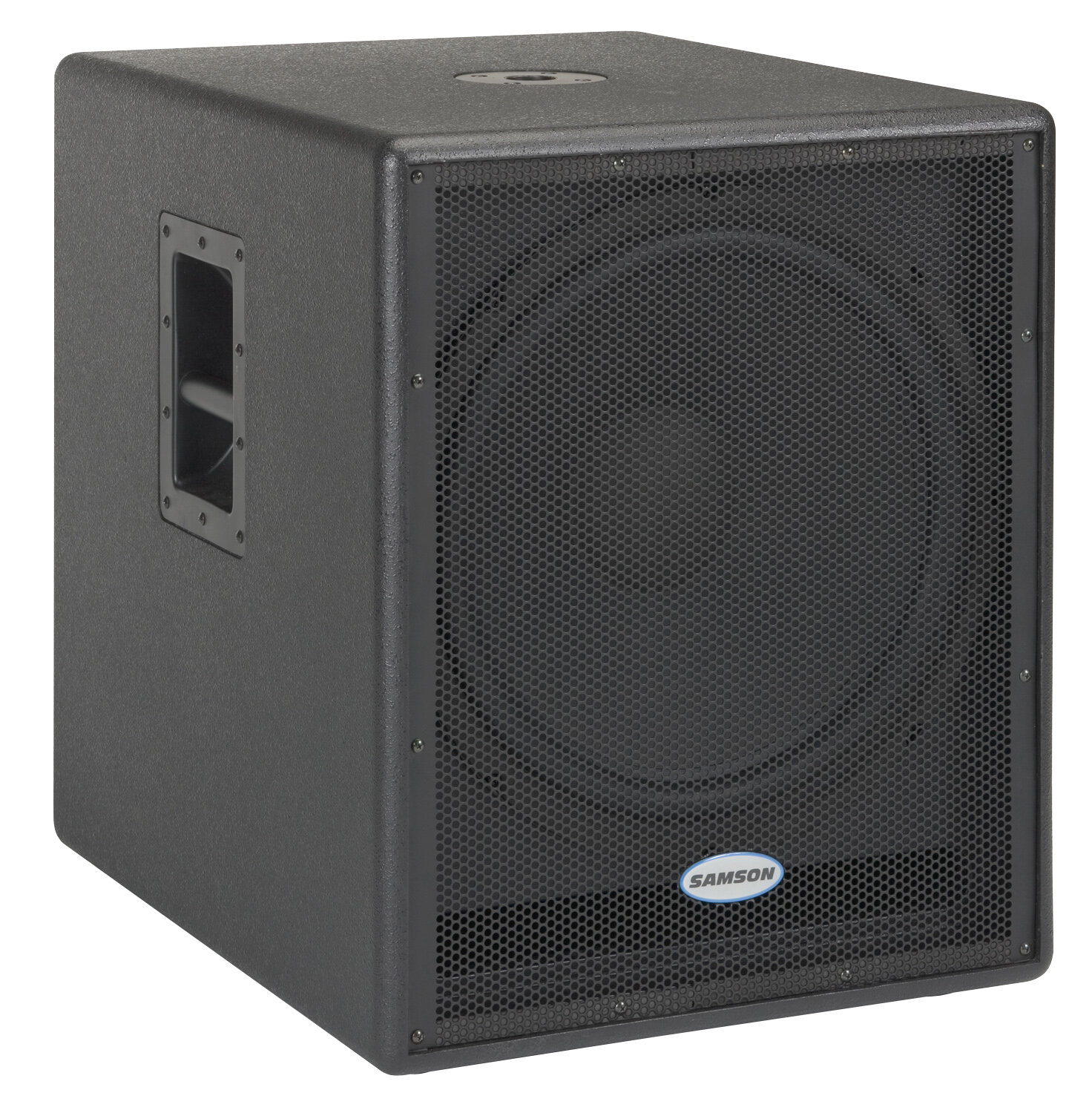

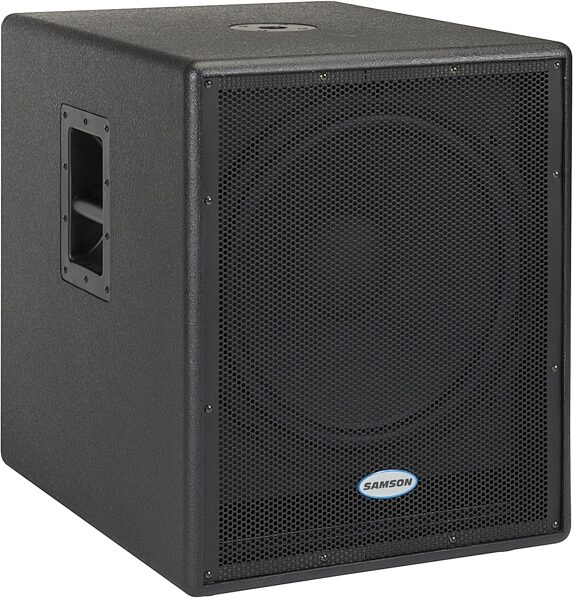

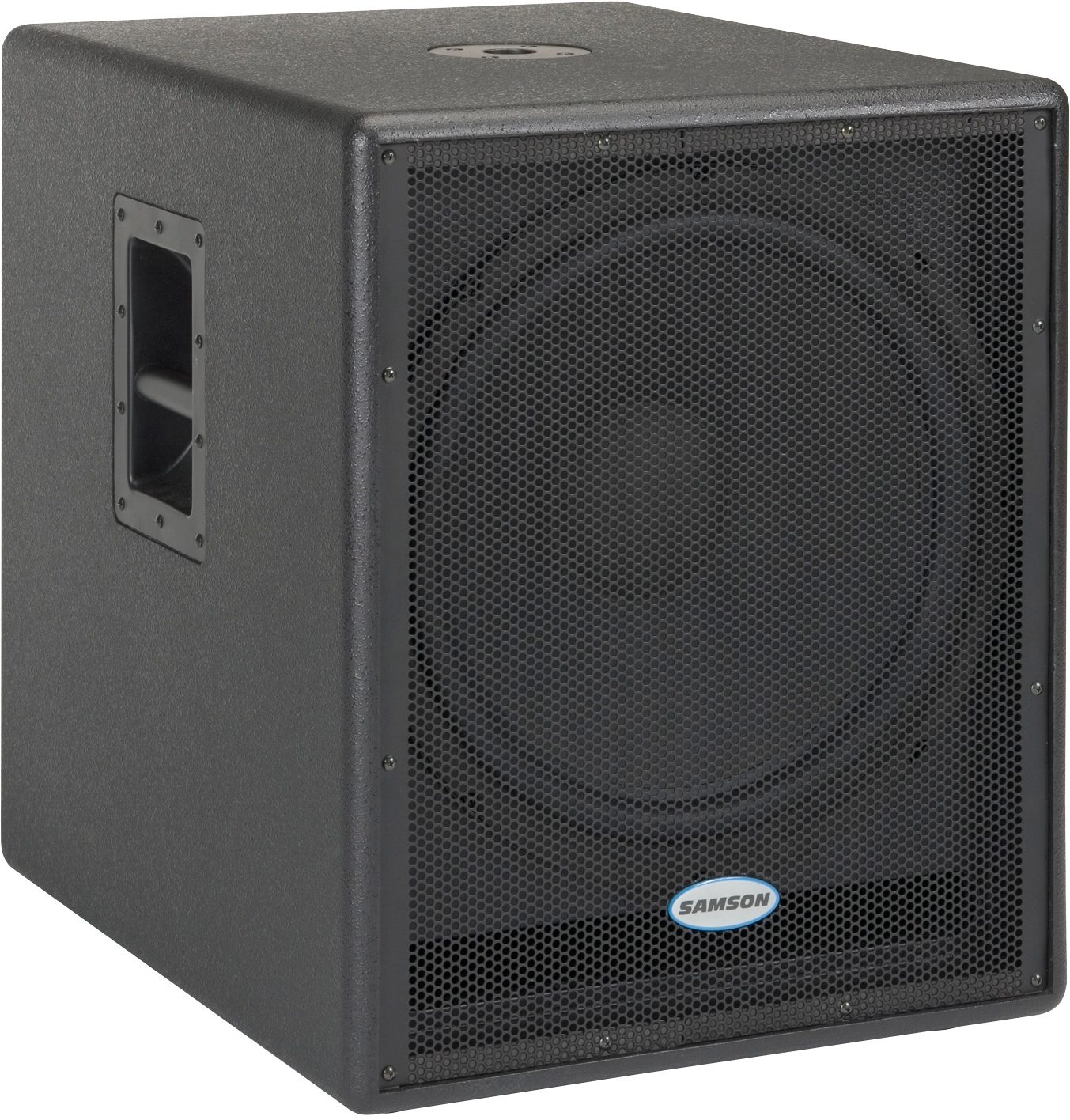

Samson's Auro D1800 Active Subwoofer provides amazing lows that will bring the bottom-end of your PA setup to life. Designed with a Class D amplifier, this subwoofer packs heart-thumping power into a more efficient enclosure ideal for fixed installations, musicians, DJs and general live sound reinforcement. Auro D1800 goes where low-end is a must.
Auro D1800 has an 18-inch low frequency transducer with a robust 3-inch voice coil that drives 500 watts of RMS and 1000 watts of peak output power. In addition, its Power, Signal and Peak LED displays provide constant output monitoring.
A fixed frequency (126 Hz, 24 dB/octave) electronic crossover allows you to use Auro D1800's balanced XLR stereo input, as well as its balanced XLR stereo full range and high-pass outputs to run your satellite speakers or daisy chain with additional subwoofers. Use the Normal/Invert phase level control to ensure that the subwoofer is in phase with the rest of your PA system.
Auro D1800 rear Panel
To ensure roadworthy durability, Auro D1800 is constructed of solid 3/4-inch plywood with a professional textured finish. The enclosure also features large metal handles that make transport a breeze, as well as a 35mm pole mount receptacle.
Features
- Easy to move and built to last, the Auro D1800 Active Subwoofer provides the super tight and punchy low frequency output that your PA has been waiting for.
- 500 watts RMS and 1000 watts peak of Class D power
- 18-inch low frequency transducer with robust 3-inch voice coil
- Fixed frequency (126 Hz, 24 dB/octave) electronic crossover
- Balanced XLR stereo input
- Balanced XLR stereo full range and high-pass outputs
- Power, Signal and Peak LED displays
- Normal/Invert phase level control
- Large metal grab handles and a 35mm pole mount receptacle
- Solid 3/4-inch plywood construction with textured finish
zZounds is an authorized dealer of
Samson products.
- RMS Power: 500 watts
- Peak Power: 1000 watts
- THD: < 0.1%
- Design: Class-D
- Driver: 18 in. paper cone
- Voice Coil Diameter: 3 in.
- Sensitivity: 95dB SPL @ 1w/1m
- Frequency Response: 30Hz- 135Hz (+/-3 dB)
- Maximum SPL: 125 dB SPL @ 1000 watts
- Crossover Type: 24 dB/oct Linkwitz-Riley
- Crossover Frequency: 126 Hz
- Inputs (L and R) : Balanced Female XLR - Line Level
- High Pass Outputs (L and R) : Balanced Male XLR - Line Level
- Full Range Outputs (L and R) : Balanced Male XLR - Line Level
- Controls: Master Level Rotary, Phase Switch
- Indicators: Peak, Signal, Power
- Power Consumption: 645 W max.
- AC Connector: 3-pin IEC 250 VAC, 20 A male
- Construction: 18 mm plywood
- Finish: Textured black polyurethane paint
- Casters: 4 x Three Inch.
- Handles: 2 x Steel
- Grill: Perforated steel
- Mounting Method: Integral 1 3/8 in. (35 mm) Pole Mount Receptacle
- Dimensions: 20.2 x 25.3 x 24.1 in. / 513 mm x 643 mm x 612 mm
